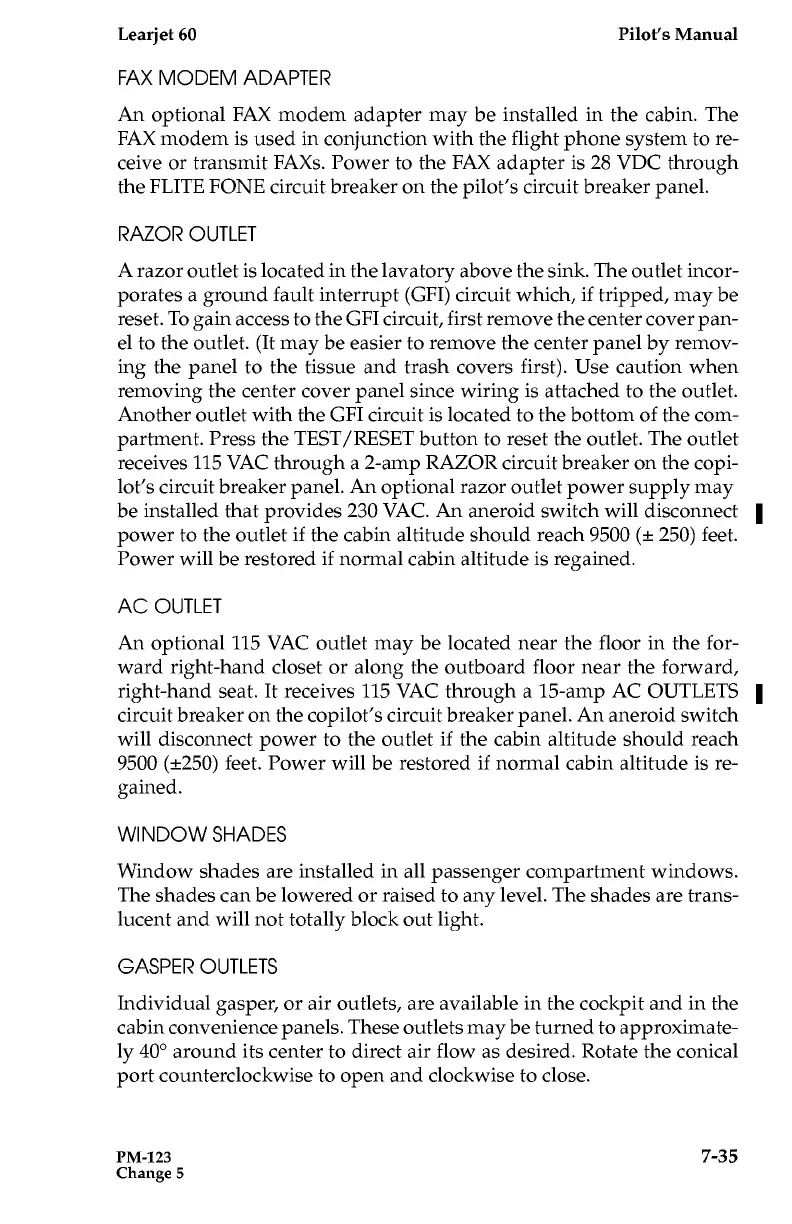

FAX MODEM ADAPTER
An
optional
FAX
modem adapter may be installed
in
the cabin
. The
FAX
modem is used
in
conjunction with the
flight
phone system to re-
ceive or transmit
FAXs
. Power to the
FAX
adapter is 28 VDC through
the
FLITE
FONE circuit breaker on the pilot's circuit breaker
panel .
RAZOR OUTLET
A razor
outlet is located
in
the lavatory above the sink .
The
outlet
incor-
porates a ground fault interrupt
(GFI)
circuit
which, if
tripped, may be
reset . To gain access to the
GFI
circuit,
first
remove the center cover
pan-
el to the outlet . (It may be easier to remove the center
panel
by remov-
ing
the panel to the tissue and trash covers first) . Use caution when
removing
the center cover
panel
since
wiring
is attached to the outlet .
Another
outlet with the
GFI
circuit is located to the bottom of the com-
partment . Press the
TEST/RESET
button to reset the outlet .
The
outlet
receives
115
VAC through a
2-amp RAZOR
circuit breaker on the copi-
lot's circuit breaker
panel . An
optional
razor
outlet power supply may
be installed that provides 230 VAC .
An
aneroid switch
will
disconnect
power to the outlet
if
the cabin altitude should reach 9500 (± 250) feet .
Power
will
be restored
if normal
cabin altitude is regained .
AC
OUTLET
An
optional
115
VAC outlet may be located near the
floor in
the
for-
ward
right-hand
closet or
along
the outboard
floor
near the forward,
right-hand
seat . It receives
115
VAC through a 15-amp AC
OUTLETS
circuit breaker on the copilot's circuit breaker
panel . An
aneroid switch
will
disconnect power to the outlet
if
the cabin altitude should reach
9500 (±250) feet . Power
will
be restored
if normal
cabin altitude is re-
gained .
WINDOW SHADES
Window shades are installed
in all
passenger compartment windows .
The
shades can be lowered or raised to
any
level
. The
shades are trans-
lucent and
will
not totally block out
light
.
GASPER OUTLETS
Individual gasper, or
air
outlets, are available
in
the cockpit and
in
the
cabin convenience panels . These outlets may be turned to approximate-
ly
40° around its center to direct
air
flow as desired . Rotate the conical
port counterclockwise to open and clockwise to close .
