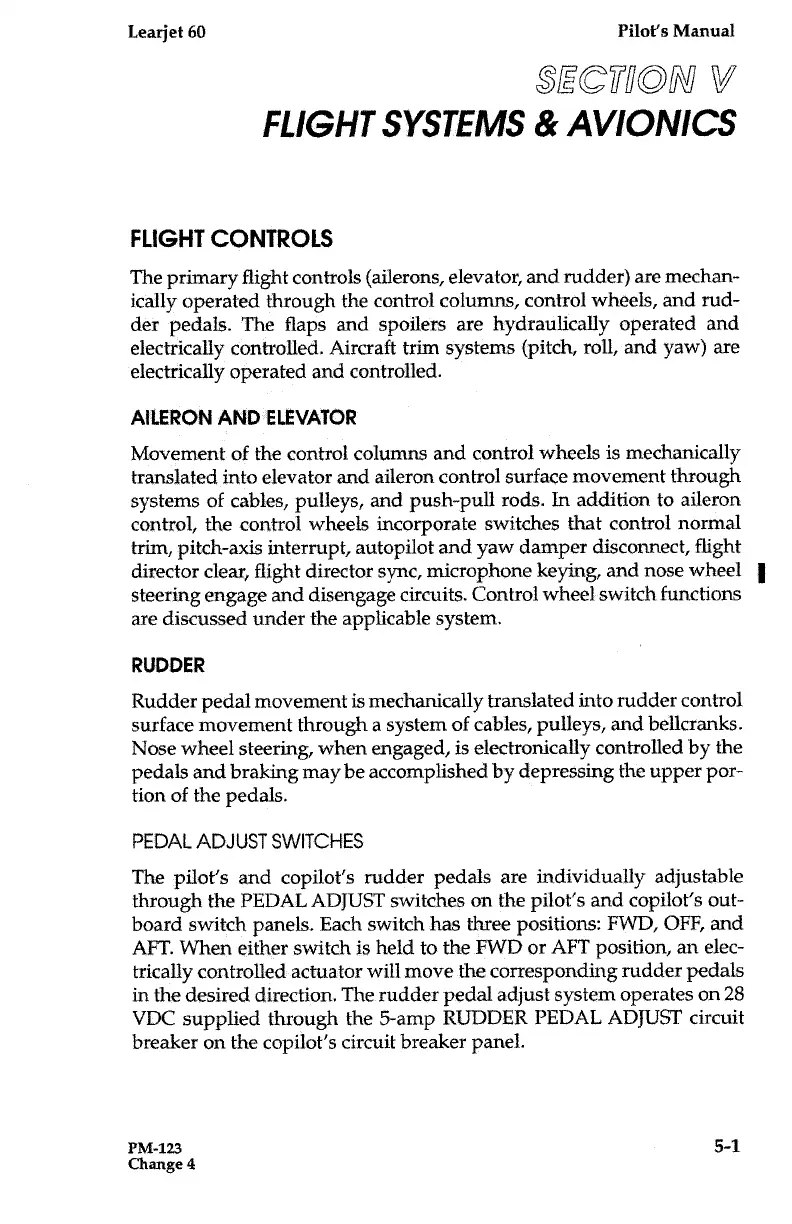

Learjet60
Pilot's
Manual
FLIGHT
CONTROLS
W?6~
5
~yflam
V
FLIGHT
SYSTEMS
&
AVIONICS
The
primary
flight
controls
(ailerons,
elevator,
and
rudder}
are
mechan-
ically
operated
through
the
control
columns,
control
wheels,
and
rud-
der pedals
.
The
flaps
and
spoilers
are hydraulically
operated
and
electrically
controlled
.
Aircraft
trim
systems
(pitch,
roll,
and
yaw)
are
electrically
operated
and
controlled
.
AILERON
AND
ELEVATOR
Movement
of the
control
columns
and
control
wheels
is
mechanically
translated
into elevator
and
aileron
control
surface
movement
through
systems
of
cables,
pulleys,
and
push-pull
rods
.
In addition
to
aileron
control,
the
control
wheels
incorporate
switches
that
control
normal
trim,
pitch-axis
interrupt,
autopilot
and
yaw
damper
disconnect,
flight
director
clear,
flight
director sync,
microphone
keying,
and
nose
wheel
steering
engage
and
disengage
circuits
.
Control
wheel
switch
functions
are
discussed
under
the
applicable
system
.
RUDDER
Rudder
pedal
movement
is
mechanically
translated
into
rudder
control
surface
movement
through
a
system
of
cables,
pulleys,
and
bellcranks
.
Nose
wheel
steering,
when
engaged,
is
electronically
controlled
by
the
pedals
and
braking
may
be
accomplished
by
depressing
the
upper
por-
tion
of the
pedals
.
PEDAL
ADJUST
SWITCHES
The
pilot's
and
copilot's
rudder pedals
are
individually
adjustable
through
the
PEDAL
ADJUST
switches
on
the
pilot's
and
copilot's
out-
board
switch
panels
.
Each
switch
has
three
positions
:
FWD,
OFF,
and
AFT
.
When
either
switch
is
held
to
the
FWD
or
AFT
position,
an
elec-
trically
controlled
actuator
will
move
the
corresponding
rudder
pedals
in
the
desired
direction
.
The
rudder
pedal
adjust
system
operates
on
28
VDC
supplied
through
the
5-amp
RUDDER
PEDAL
ADJUST
circuit
breaker
on
the
copilot's
circuit
breaker
panel
.
PM-123
5-1
