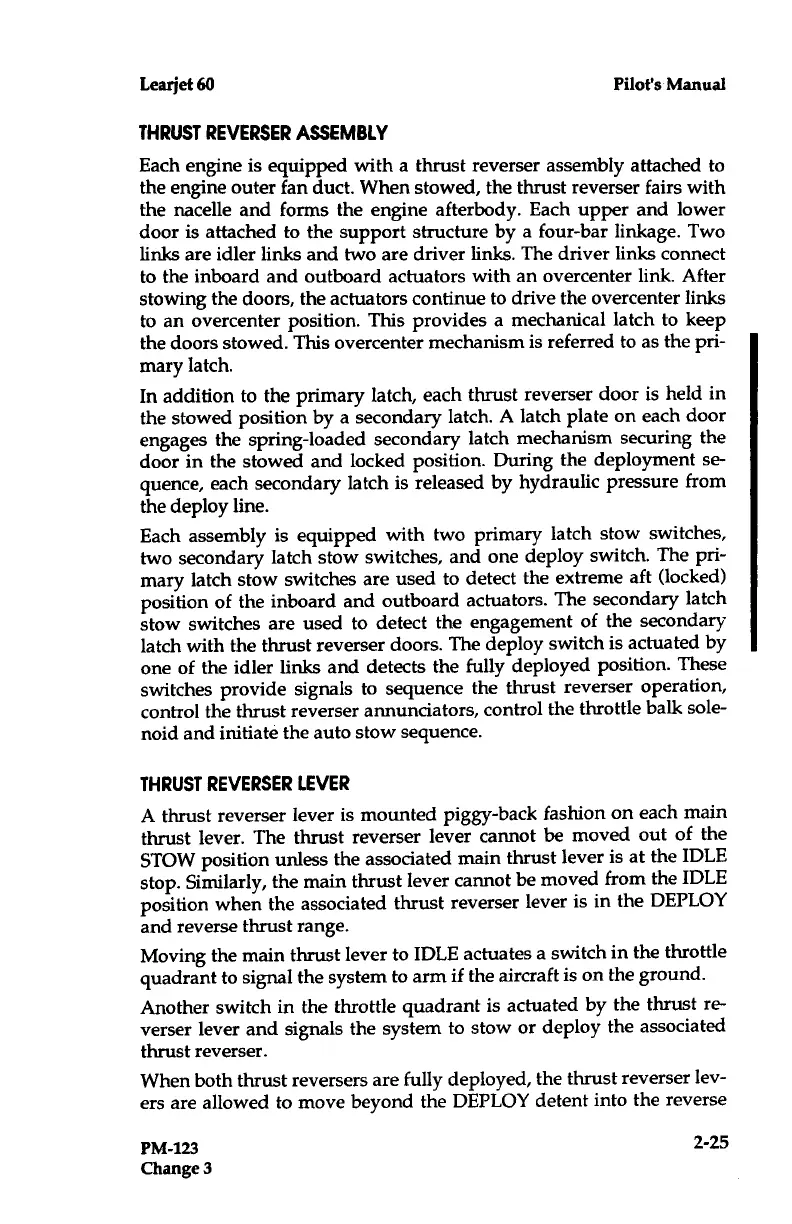

THRUST
REVERSER
ASSEMBLY
Each
engine
is
equipped
with
a
thrust
reverser
assembly
attached
to
the
engine
outer
fan
duct
.
When
stowed,
the
thrust
reverser
fairs
with
the
nacelle
and
forms
the
engine
afterbody
.
Each upper and
lower
door
is
attached
to
the
support
structure
by
a
four-bar linkage
.
Two
links
are
idler
links
and two
are driver
links
.
The
driver
links
connect
to
the
inboard
and
outboard
actuators
with
an
overcenter
link
.
After
stowing
the doors, the
actuators
continue
to
drive
the
overcenter
links
to
an
overcenter
position
.
This
provides
a
mechanical
latch to
keep
the
doors
stowed
.
This
overcenter
mechanism
is
referred
to
as
the
pri-
mary
latch
.
In
addition
to
the
primary
latch,
each
thrust
reverser
door
is
held
in
the
stowed
position
by a
secondary
latch
.
A
latch
plate
on
each
door
engages
the
spring-loaded
secondary
latch
mechanism
securing
the
door
in
the
stowed
and
locked
position
.
During
the
deployment
se-
quence,
each
secondary
latch
is
released
by
hydraulic
pressure
from
the
deploy
line
.
Each
assembly
is
equipped
with
two
primary
latch
stow
switches,
two
secondary
latch
stow
switches,
and
one
deploy
switch
.
The
pri-
mary
latch
stow
switches
are
used
to
detect
the
extreme
aft
(locked)
position
of the
inboard
and
outboard
actuators
.
The
secondary
latch
stow
switches
are
used
to
detect the
engagement
of
the
secondary
latch
with
the
thrust
reverser
doors
.
The
deploy
switch
is
actuated
by
one
of
the
idler
links
and
detects
the fully
deployed
position
.
These
switches
provide
signals
to
sequence
the
thrust
reverser
operation,
control
the thrust
reverser
annunciators,
control
the
throttle
balk
sole-
noid
and
initiate
the
auto
stow
sequence
.
THRUST
REVERSER
LEVER
A
thrust
reverser
lever
is
mounted
piggy-back
fashion
on
each
main
thrust
lever
.
The
thrust
reverser
lever
cannot
be
moved
out
of
the
STOW
position
unless
the associated
main
thrust
lever
is
at the
IDLE
stop
.
Similarly, the
main
thrust
lever
cannot
be
moved
from
the
IDLE
position
when
the
associated
thrust
reverser
lever
is
in
the
DEPLOY
and
reverse
thrust
range
.
Moving
the
main
thrust
lever
to
IDLE
actuates
a
switch
in
the
throttle
quadrant
to signal
the
system
to
arm
if
the
aircraft
is
on
the
ground
.
Another
switch
in
the
throttle
quadrant
is
actuated
by
the
thrust
re-
verser
lever
and
signals
the
system
to
stow
or
deploy
the associated
thrust
reverser
.
When
both
thrust
reversers
are
fully
deployed,
the
thrust
reverser
lev-
ers
are
allowed
to
move
beyond
the
DEPLOY
detent
into
the
reverse
