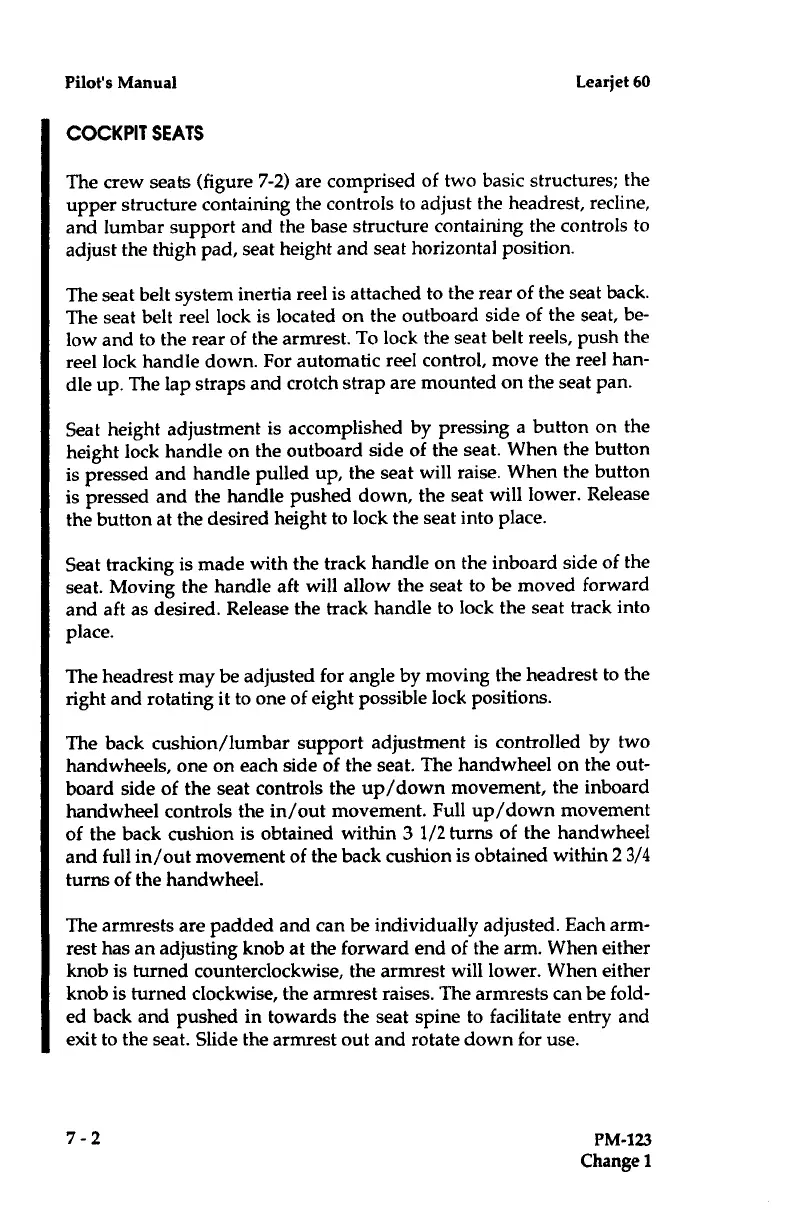

Pilot's
Manual
Learjet
60
COCKPIT
SEATS
The crew
seats
(figure
7-2)
are
comprised
of
two
basic
structures
;
the
upper
structure
containing the
controls
to
adjust
the
headrest,
recline,
and
lumbar
support
and
the
base
structure
containing
the
controls
to
adjust
the
thigh
pad,
seat
height
and
seat
horizontal
position
.
The
seat
belt
system
inertia
reel
is
attached
to
the
rear of the seat
back
.
The
seat
belt
reel
lock
is
located
on
the
outboard
side
of
the
seat,
be-
low and
to the
rear
of
the
armrest
.
To
lock
the
seat
belt
reels,
push
the
reel
lock
handle
down
.
For
automatic
reel
control,
move
the
reel
han-
dle
up
.
The
lap
straps
and
crotch
strap
are
mounted
on
the seat
pan
.
Seat
height
adjustment
is
accomplished
by
pressing
a
button
on
the
height
lock
handle
on
the
outboard
side
of the seat
.
When
the
button
is
pressed
and
handle
pulled
up,
the seat
will
raise
.
When
the
button
is
pressed
and
the
handle
pushed
down,
the
seat
will
lower
.
Release
the
button
at
the
desired
height
to
lock
the
seat into
place
.
Seat
tracking
is
made
with
the
track
handle
on
the
inboard
side
of
the
seat
.
Moving
the
handle
aft
will
allow
the
seat to
be
moved
forward
and
aft
as
desired
.
Release
the track
handle
to
lock
the
seat track
into
place
.
The
headrest
may
be
adjusted
for
angle
by
moving
the
headrest
to
the
right
and
rotating
it
to
one
of
eight
possible lock
positions
.
The
back
cushion/lumbar
support adjustment
is
controlled
by two
handwheels,
one on
each
side
of
the
seat
.
The
handwheel
on
the
out-
board
side
of
the
seat
controls
the
up/down
movement,
the
inboard
handwheel
controls
the
in/out
movement
.
Full
up/down
movement
of
the
back
cushion
is
obtained within
3
1/2
turns
of
the
handwheel
and
full
in/out
movement
of
the
back
cushion
is
obtained within
2
3/4
turns
of
the
handwheel
.
The
armrests
are
padded
and canbe
individually
adjusted
.
Eacharm-
rest
has
an
adjusting
knob
at the
forward
end
of the
arm
.
When
either
knob
is
turned
counterclockwise,
the
armrest
will
lower
.
When
either
knob
is
turned
clockwise,
the
armrest
raises
.
The
armrests
can
be
fold-
ed
back
and pushed
in
towards
the
seat
spine
to facilitate
entry
and
exit
to the seat
.
Slide
the
armrest
out
and
rotate
down
for
use
.
7-2
PM-123
Change
l
