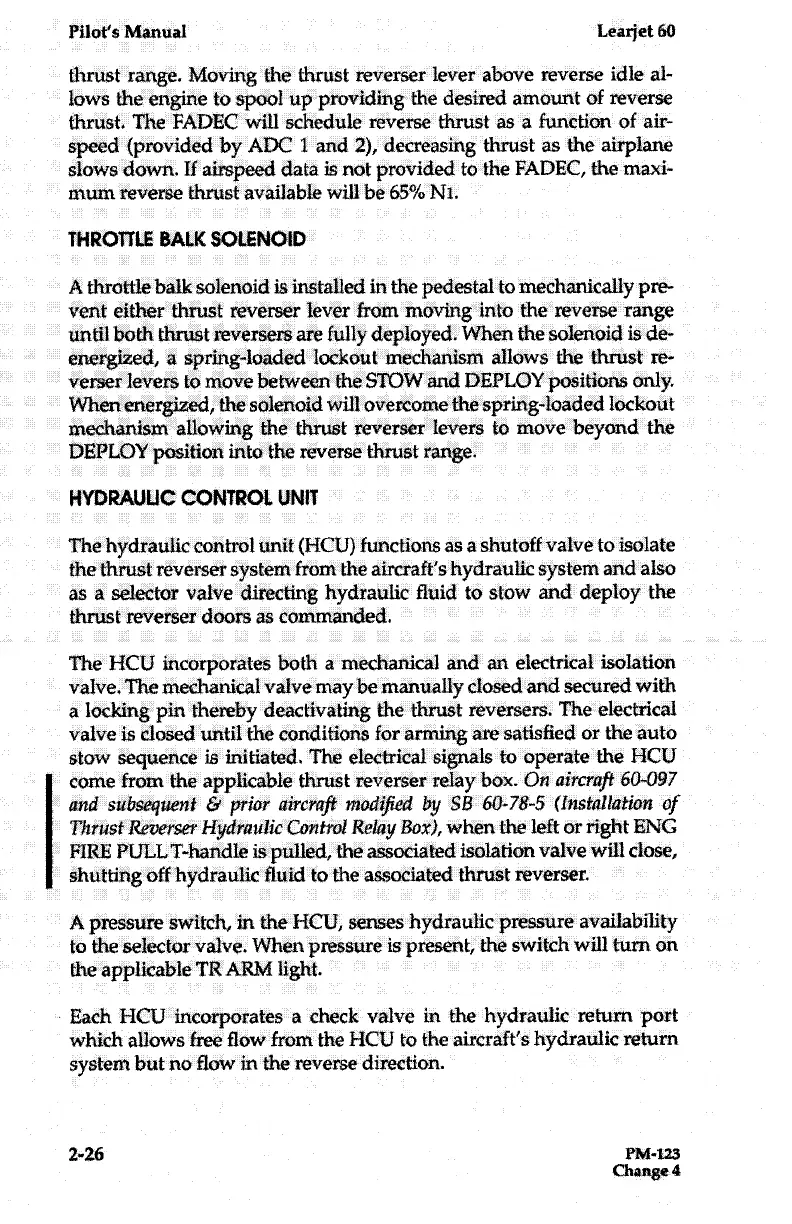

Pilot's'
Manual
Learjet
60
thrust
range
.
Moving
the thrust
reverser
lever
above
reverse
idle
al-
lows
the
engine
to
spool
up
providing
the
desired
amount
of
reverse
thrust
.
The
FADEC
will
schedule
reverse
thrust
as
a
function
of
air-
speed
(provided
by
ADC
I
and
2),
decreasing
thrust
as the airplane
slows
down
.
If
airspeed data
is
not
provided
to
the
FADEC,
the
maxi-
mum
reverse
thrust
available
will
be
65%
N1
.
THROTTLE
BALK
SOLENOID
A
throttle
balk solenoid
is
installed
in
the
pedestal
to
mechanically
pre-
vent
either
thrust
reverser
lever
from
moving
into
the
reverse
range
until
both
thrust
reversers
are
fully
deployed
.
When
the solenoid
is
de-
energized,
a
spring-loaded
lockout
mechanism
allows
the thrust re-
verser
levers
to
move
between
the
STOW
and
DEPLOY
positions
only
.
When
energized,
the solenoid
will
overcome
the
spring-loaded lockout
mechanism
allowing
the
thrust
reverser
levers
to
move
beyond
the
DEPLOY
position
into
the
reverse
thrust
range
.
HYDRAULIC
CONTROL
UNIT
The
hydraulic
control
unit
(HCU)
functions
as
a
shutoff
valve
to
isolate
the
thrust
reverser
system from
the
aircraft's
hydraulic
system
and
also
as
a
selector
valve
directing
hydraulic
fluid
to
stow
and
deploy
the
thrust
reverser
doors
as
commanded
.
The
HCLi
incorporates
both
a
mechanical
and
an
electrical
isolation
valve
.
The
mechanical
valve
may
be
manually
closed
and
secured
with
a
locking
pin
thereby
deactivating
the
thrust
reversers
.
The
electrical
-
valve
is
closed
until
the conditions
for
arming
are
satisfied
or the
auto
stow
sequence
is
initiated
.
The
electrical
signals
to
operate
the
HCU
come
from
the
applicable
thrust
reverser
relay
box
.
On
aircraft
60-097
and
subsequent
&
prior
aircraft
inod~ied
by
SB
60-78-5
(Installation
of
Thrust
Reverser
Hydraulic
Control
Re=lay
Box),
when
the
left
or
right
ENG
FIRE
PULL
T-handle
is
pulled,
the
associated
isolation
valve
will close,
shutting
off
hydraulic
fluid
to
the
associated
thrust
reverser
.
A
pressure
switch,
in
the
HCU,
senses
hydraulic
pressure
availability
to
the
selector
valve
.
When
pressure
is
present,
the
switch
will
turn
on
the
applicable
TR
ARM
light
.
Each
HCU
incorporates
a
check
valve
in
the
hydraulic
return port
which
allows
free
flow
from
the
HCU
to
the
aircraft's
hydraulic
return
system
but
no
flow
in
the
reverse
direction
.
