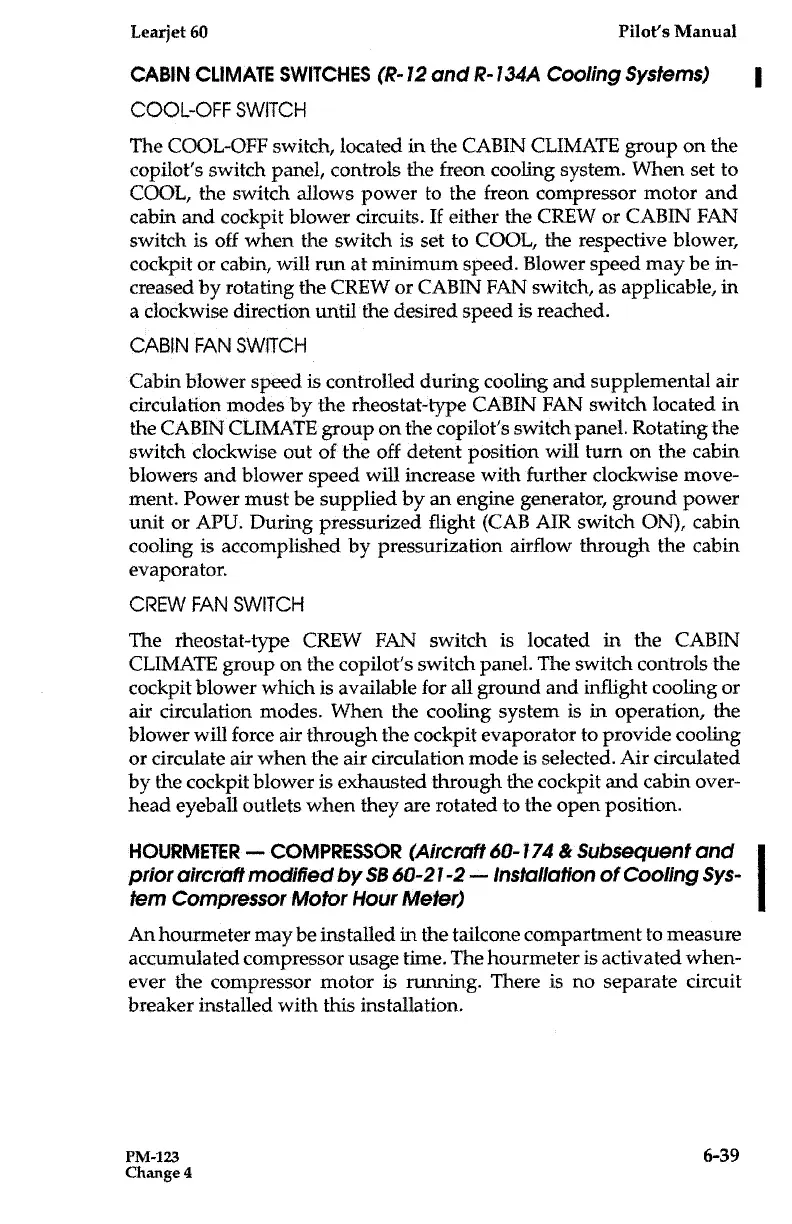

CABIN
CLIMATE
SWITCHES
(142
and
R4344
Cooling
Systems)
COOL-OFF
SWITCH
The
COOL-OFF
switch,
located
in
the
CABIN
CLIMATE
group
on
the
copilot's
switch
panel,
controls
the
freon
cooling
system
.
When
set
to
COOL,
the
switch allows
power
to
the
freon
compressor
motor and
cabin
and
cockpit
blower
circuits
.
If
either
me
CREW
or
CABIN
FAN
switch
is
off
when
the
switch
is
set
to
COOL,
the
respective
blower,
cockpit
or
cabin,
will
run
at
minimum
speed
.
Blower
speed
may
be
in-
creased
by
rotating
me
CREW
or
CABIN
FAN
switch,
as
applicable,
in
a
clockwise
direction
until
the
desired
speed
is
readied
.
CABIN
FAN
SWITCH
Cabin
blower
speed
is
controlled
during
cooling
and
supplemental
air
circulation
modes
by
the
rheostat-type
CABIN
FAN
switch
located
in
the
CABIN
CLIMATE
group
on
the
copilot's
switch
panel
.
Rotating
the
switch
clockwise
out
of
me
off
decent position
will
turn
on
the
cabin
blowers
and
blower
speed
will increase
with
further
clockwise
move-
ment
.
Power
must
be
supplied
by
an
engine
generator,
ground
power
unit
or
APU
.
During
pressurized
flight
(CAB
AIR
switch
ON),
cabin
cooling
is
accomplished
by
pressurization airflow
through
the
cabin
evaporator
.
CREW
FAN
SWITCH
The
rheostat-type
CREW
FAN
switch
is
located in the
CABIN
CLIMATE
group
on
the
copilot's
switch
panel
.
The
switch
control
the
cockpit
blower
which
is
available
for
all
ground
and
inflight
cooling
or
air
circulation
modes
.
When
the
cooling
system
is
in
operation,
the
blower
will force
air
through
the
cockpit
evaporator
to
provide
cooling
or
circulate air
when
the
air
circulation
mode
is
selected
.
Air
circulated
by
the cockpit
blower
is
exhausted
through
the
cockpit
and
cabin
over-
head
eyeball
outlets
when
they
are rotated
to
the
open
position
.
HOURIVIETER
-
COMPRESSOR
(Aircraft
60-174
&
Subsequent
and
prior
aircraft
modified
by
SB
612
A2
--
Installation
of
Cooling
Sys-
tem
Compressor
Motor
Hour
Meter)
An
hourmeter
may
be
installed
in the
tailcone
compartment
to
measure
accumulated
compressor
usage
time
.
The
hourmeter
is
activated
when-
ever the
compressor
motor
is
running
.
There
is
no
separate
circuit
breaker
installed
with
this installation
.
PM-123
6-39
Change
4
