Pilot's Manual

Learjet 60

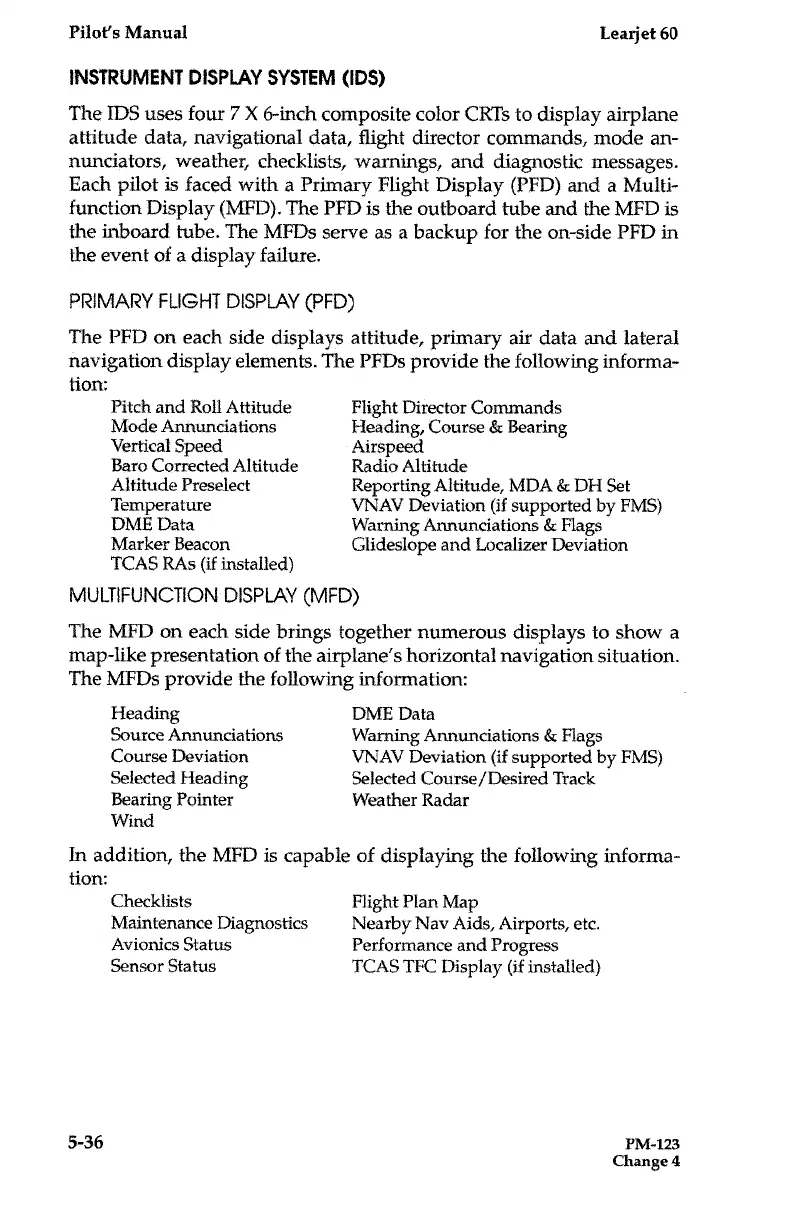

INSTRUMENT
DISPLAY SYSTEM (IDS)
The IDS uses four 7
X 6-inch composite color CRTs to display airplane
attitude data, navigational data,
flight director
commands,
mode an-
nunciators, weather, checklists, warnings, and diagnostic messages .
Each pilot is faced with a Primary Flight Display (PFD) and a Multi-
function Display (MFD) . The PFD is the outboard tube and the MFD is
the inboard tube
. The MFDs serve as a backup for the on-side PFD in
the event of a display failure .
PRIMARY FLIGHT DISPLAY (PFD)
The PFD on each
side
displays
attitude,
primary
air data and lateral
navigation display elements . The PFDs provide the following
informa-
tion :
Pitch and Roll Attitude
Mode Annunciations
Vertical Speed
Baro Corrected Altitude
Altitude Preselect
Temperature
DME Data
Marker Beacon
WAS RAs (if installed)
MULTIFUNCTION DISPLAY (MFD)
The MFD on each side brings together
numerous
displays to
show a
map-like presentation of the airplane's horizontal navigation situation .
The MFI)s provide the following information :
Heading
Source
Annunciations
Course Deviation
Selected
Heading
Rearing
Pointer
Wind
Flight Director Commands
Heading, Course
& Bearing
Airspeed
Radio Altitude
Reporting Altitude, MDA & DH Set
VNAV Deviation (if supported by FMS)
Warning Annunciations & Flags
Glideslope and
Localizer
Deviation
DME Data
Warning Annunciations & Flags
VNAV Deviation (if supported by FMS)
Selected
Course/Desired Track
Weather Radar
In addition, the MFD is capable of displaying
the
following informa-
tion :
Checklists
Maintenance Diagnostics
Avionics Status
Sensor Status
Flight
Plan Map
Nearby Nav
Aids,
Airports, etc .
Performance
and Progress
TCAS TFC Display (if installed)
506
PM-123
Change 4
