13 . Dome Light
1 . Pedestal & Throttle
Quadrant

14 . Overhead
Air Outlet
2 . Air
Outlet (ankle)

15 .
Pilot's Control Column & Wheel
3 .
Pilot's Circuit Breaker Panel

16 . Copilot's Control Column &
Wheel
4 . Copilot's Circuit Breaker Panel

17 . Instrument Panel
5
.
Crew Oxygen Mask

18 . Magnetic Compass
6 . Smoke Goggle Storage

19 . Annunciator Panel
7 . Air Outlet (shoulder)

20 . Copilot's Mic/Phone
Jack Panel
8 . Oxygen Controls
& Mic/Phone Jack Panel

21 .
Assist
Handle
9 . Foldout Work
Table

22 . Cockpit
Speakers
10 . Map
Light

23 .
Cockpit Phone
11 .
Openable Window

24
. Flashlight
12 .
Sunvisor

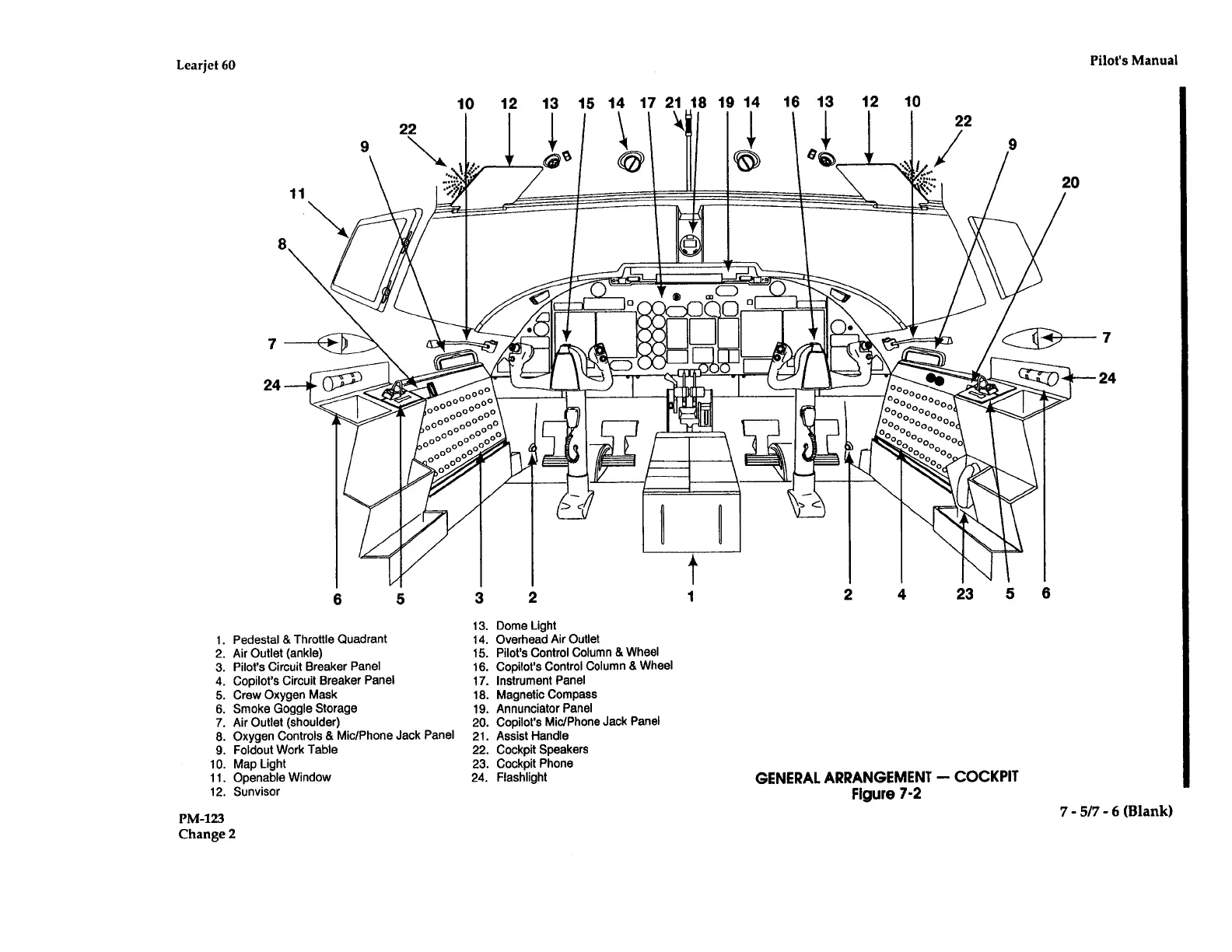

GENERAL
ARRANGEMENT -
COCKPIT
Figure
7-2
