Learjet 60 Pilot's Manual

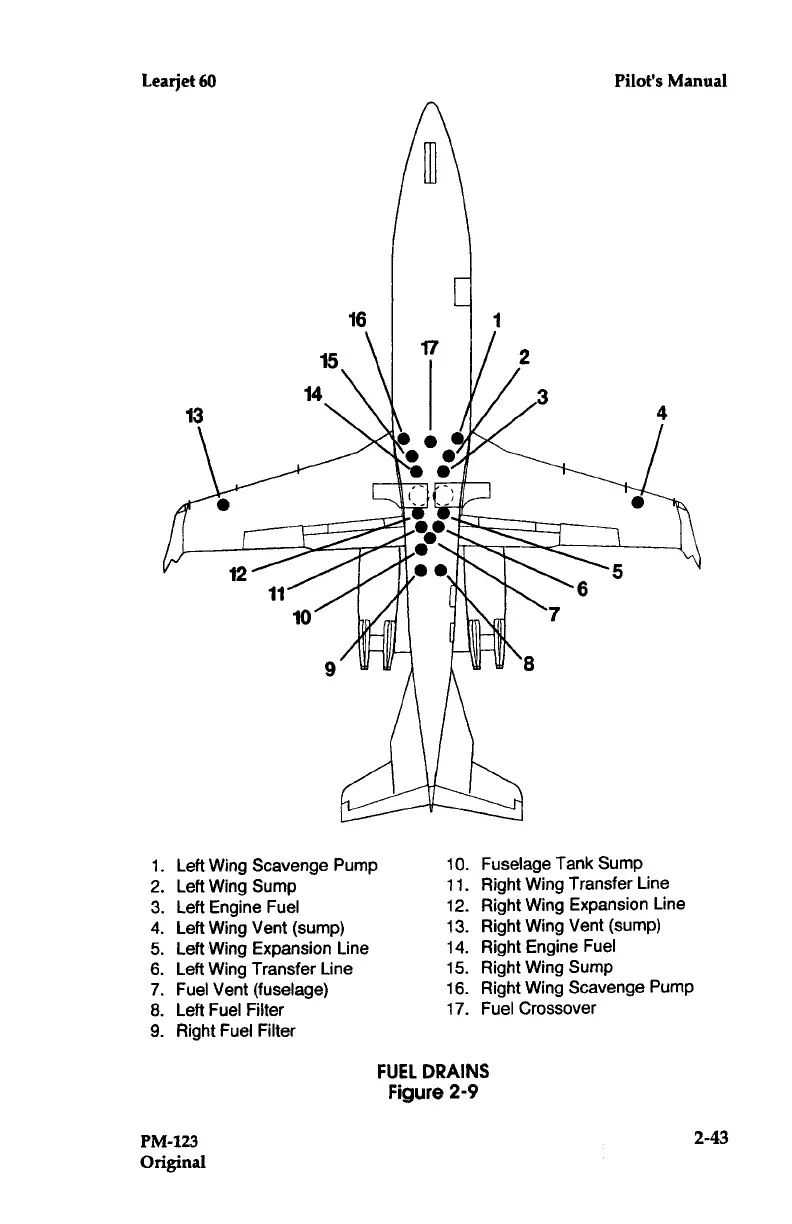

FUEL DRAINS
Figure 2-9
PM-123

2-43
Original
1 . Left Wing Scavenge
Pump 10 . Fuselage
Tank Sump
2 . Left Wing Sump
11 . Right Wing
Transfer Line
3 . Left Engine Fuel 12 . Right
Wing Expansion Line
4 . Left Wing Vent (sump)
13 . Right Wing Vent
(sump)
5 . Left Wing Expansion Line
14 . Right Engine Fuel
6 . Left Wing Transfer Line 15 .
Right Wing Sump
7 . Fuel Vent (fuselage)
16 . Right Wing
Scavenge Pump
8 . Left Fuel Filter
17 . Fuel Crossover
9 . Right Fuel Filter
