Lear
e160
Pilot's
Manual
APU
CONTROL
PANEL
The
APU
control
panel, located
above
the
copilot's circuit
breaker
pan-
el,
houses
the
necessary
controls
for
operation
and
monitoring
.
APU
fire
detection/extinguishing
controls
are
also
located
on
the
APU
control
panel
.
APU
AMPS
INDICATOR
The
AMPS
indicator
is
a
digital
display
indicating
the
amperage
output
of
the
APU
generator
(shows
zero
during
start)
.
Display
will
flash
when
current
is
at
or
above
400
amps
.
APU
FIRE
PM-i23
Change
4
APU

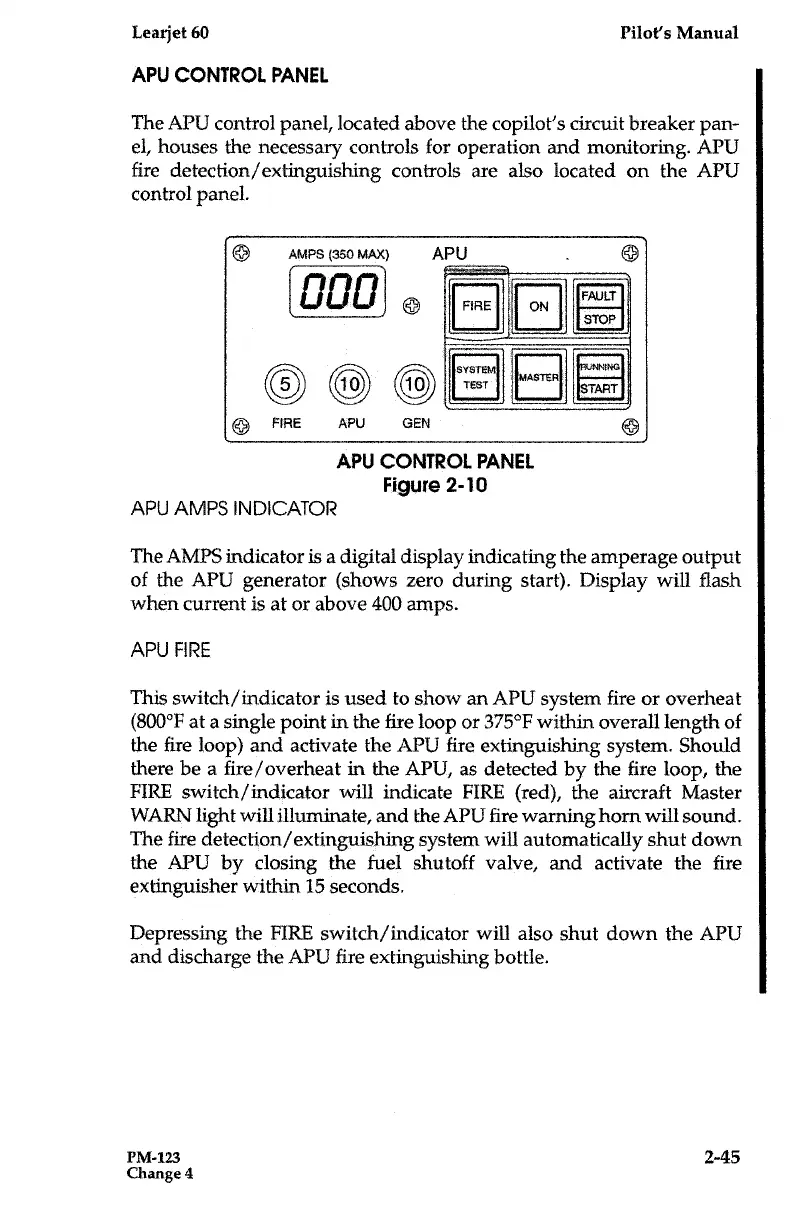

CONTROL
PANEL
Figure
2-10
This
switch/
indicator
is
used
to
show
an
APU
system
fire
or
overheat
(800°F
at
a
single
point
in the
fire
loop or
375°F
within
overall
length
of
the
fire
loop)
and
activate
the
APU
fire
extinguishing
system
.
Should
there
be a
fire/overheat in the
APU,
as
detected
by
the
fire
loop, the
FIRE
switch/
indicator
will indicate
FIRE
(red),
the
aircraft
Master
WARN
light
will
illuminate,
and
the
APU
fire
warning
horn
will
sound
.
The
fire
detection/
extinguishing
system
will
automatically
shut
down
the
APU
by
closing
the
fuel
shutoff
valve,
and
activate
the
fire
extinguisher
within
15
seconds
.
Depressing
the
FIRE
switch/
indicator
will
also
shut
down
the
APU
and
discharge
the
APU
fire
extinguishing
bottle
.
2-45
