Ten 2.5-inch SAS/SATA/NVMe drives and one 16i RAID adapter

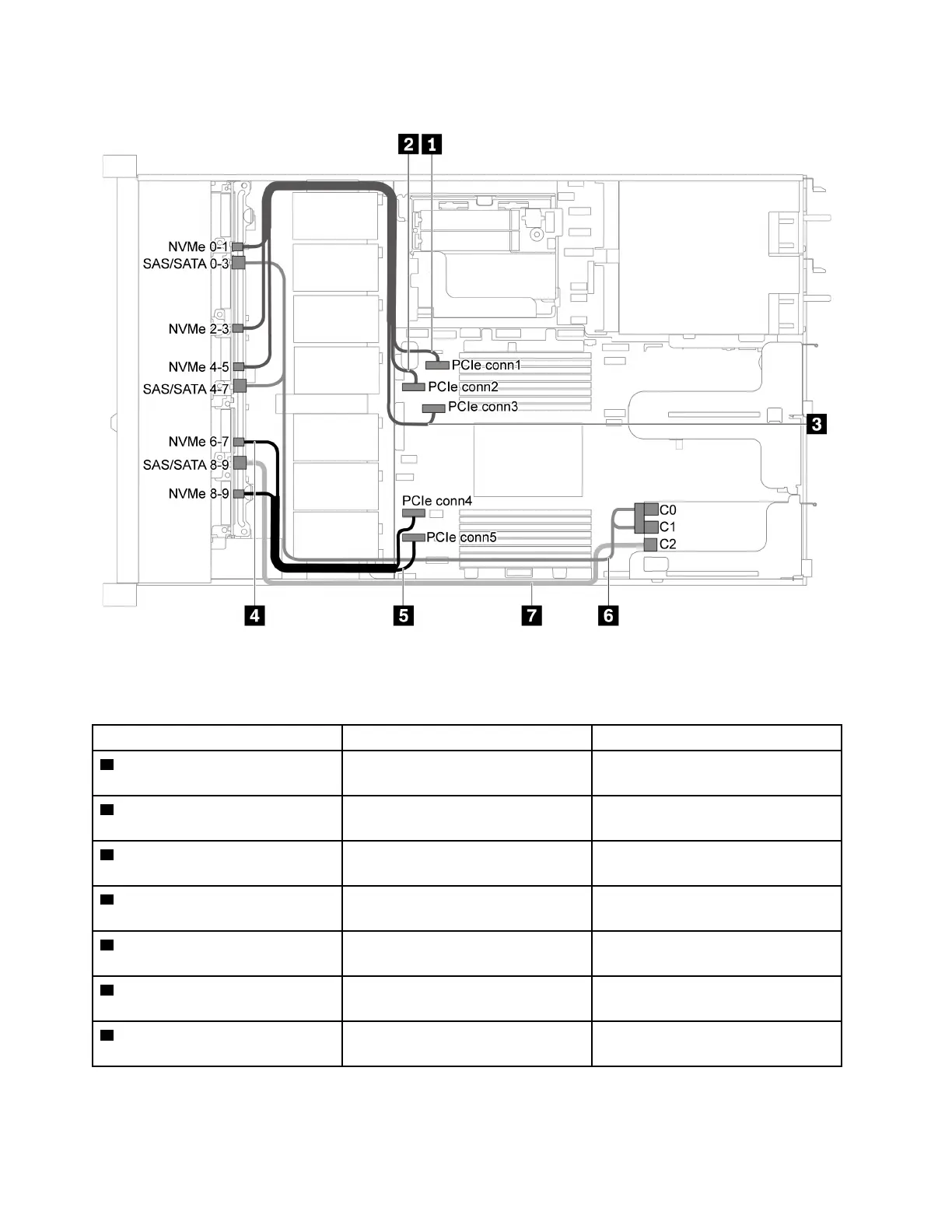

Figure 47. Cable routing for server model with ten 2.5-inch SAS/SATA/NVMe drives and one 16i RAID adapter
Note: RAID adapter can be installed in PCIe slot 1 or internal riser assembly.
Cable
From To
1 NVMe signal cable for front
backplane
NVMe 0–1 connector on the front
backplane
PCIe connector 1 on the system
board
2 NVMe signal cable for front
backplane
NVMe 2–3 connector on the front
backplane
PCIe connector 2 on the system
board
3 NVMe signal cable for front
backplane
NVMe 4–5 connector on the front
backplane
PCIe connector 3 on the system
board
4 NVMe signal cable for front
backplane
NVMe 6–7 connector on the front
backplane
PCIe connector 4 on the system
board
5 NVMe signal cable for front
backplane
NVMe 8–9 connector on the front
backplane
PCIe connector 5 on the system
board
6 SAS signal cable for front
backplane
SAS/SATA 0–3 and SAS/SATA 4–7
connectors on the front backplane
C0 and C1 connectors on RAID
adapter in PCIe slot 1
7 SAS signal cable for front
backplane
SAS/SATA 8–9 connector on the front
backplane
C2 connector on RAID adapter in
PCIe slot 1
Ten 2.5-inch SATA/NVMe drives and rear SAS/SATA drive assembly
Notes:
56
ThinkSystem SR635 Maintenance Manual
