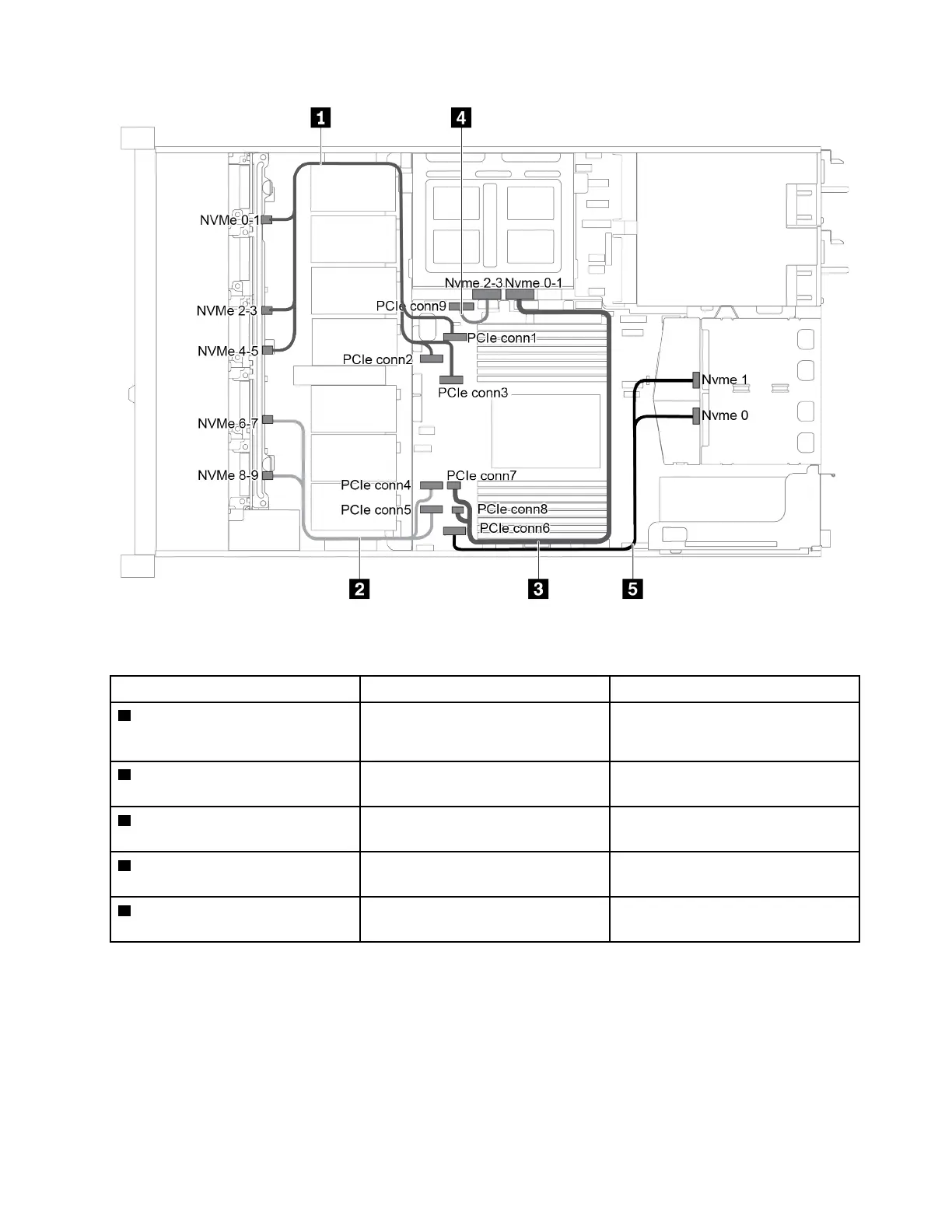

Figure 53. Cable routing for server model with ten 2.5-inch NVMe drives, rear NVMe drive assembly and middle NVMe
drive assembly
Cable
From To
1 NVMe signal cable for front
backplane
NVMe 0–1, NVMe 2–3, and NVMe 4–
5 connectors on the front backplane
PCIe connector 1, PCIe connector 2,
and PCIe connector 3 on the system
board
2 NVMe signal cable for front
backplane
NVMe 6–7 and NVMe 8–9 connectors
on the front backplane
PCIe connector 4 and PCIe
connector 5 on the system board
3 NVMe signal cable for middle
backplane
NVMe 0–1 connector on the middle
backplane
PCIe connector 7 and PCIe
connector 8 on the system board
4 NVMe signal cable for middle
backplane
NVMe 2–3 connector on the middle
backplane
PCIe connector 9 on the system
board
5 NVMe signal cable for rear
backplane
NVMe 0 and NVMe 1 connectors on
the rear backplane
PCIe connector 6 on the system
board
Ten 2.5-inch SAS/SATA/NVMe drives, rear NVMe drive assembly, middle NVMe drive assembly and
one 16i RAID adapter
Notes:
• The cable routing illustration is based on the scenario that the rear hot-swap drive cage and middle NVMe
drive assembly are installed. Depending on the model, the rear hot-swap drive cage and middle NVMe
drive assembly might not be available on your server.
• The following two illustrations are for the same one configuration.
Chapter 2. Server components 63
