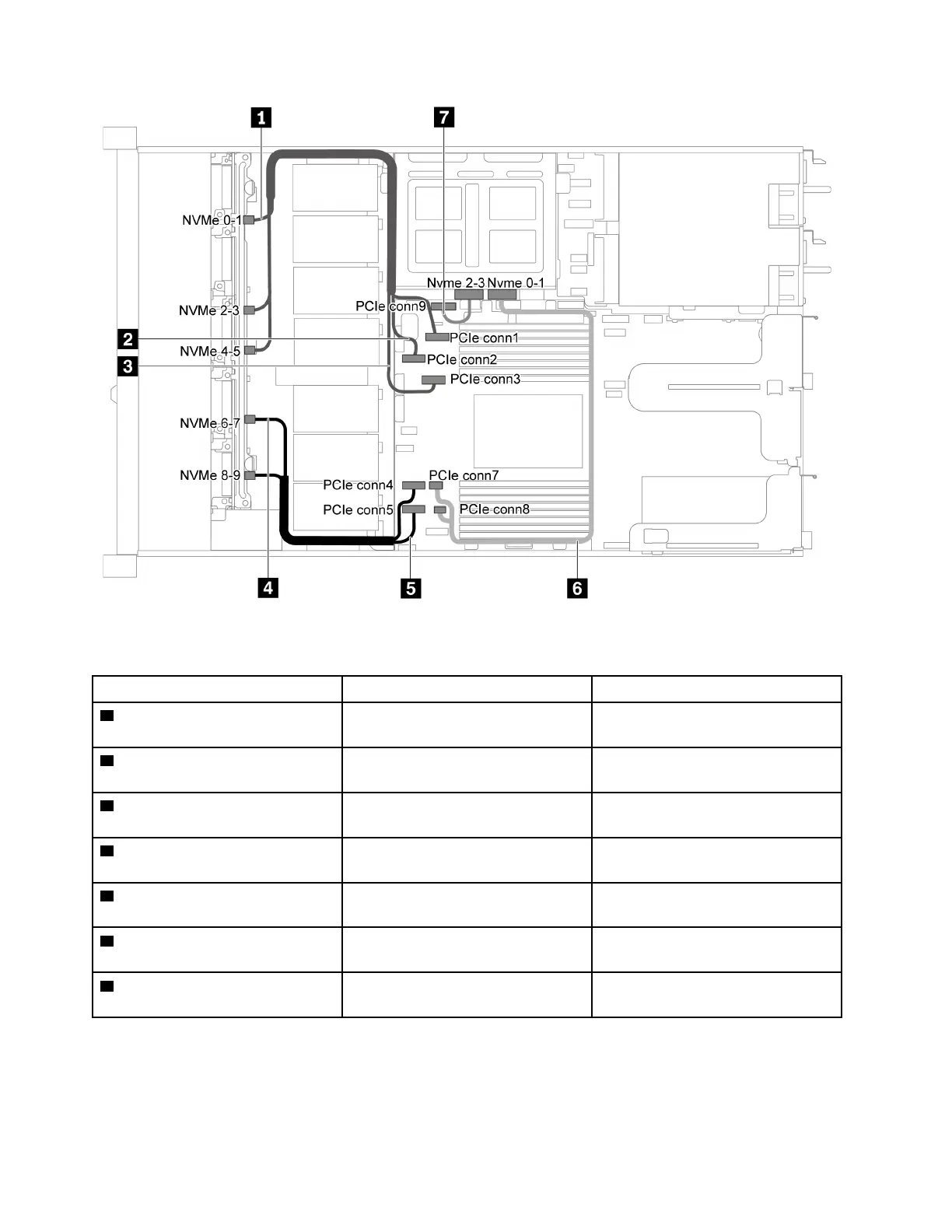

Figure 56. Cable routing for server model with ten 2.5-inch SAS/SATA/NVMe drives, middle NVMe drive assembly and
one 16i RAID adapter-1
Cable From To
1 NVMe signal cable for front
backplane
NVMe 0–1 connector on the front
backplane
PCIe connector 1 on the system
board
2 NVMe signal cable for front
backplane
NVMe 2–3 connector on the front
backplane
PCIe connector 2 on the system
board
3 NVMe signal cable for front
backplane
NVMe 4–5 connector on the front
backplane
PCIe connector 3 on the system
board
4 NVMe signal cable for front
backplane
NVMe 6–7 connector on the front
backplane
PCIe connector 4 on the system
board
5 NVMe signal cable for front
backplane
NVMe 8–9 connector on the front
backplane
PCIe connector 5 on the system
board
6 NVMe signal cable for middle
backplane
NVMe 0–1 connector on the middle
backplane
PCIe connector 7 on the system
board
7 NVMe signal cable for middle
backplane
NVMe 2–3 connector on the middle
backplane
PCIe connector 9 on the system
board
66 ThinkSystem SR635 Maintenance Manual
