5 Maintenance
Working on Linde lift mast and at the front of the truck
d3921482
1
2

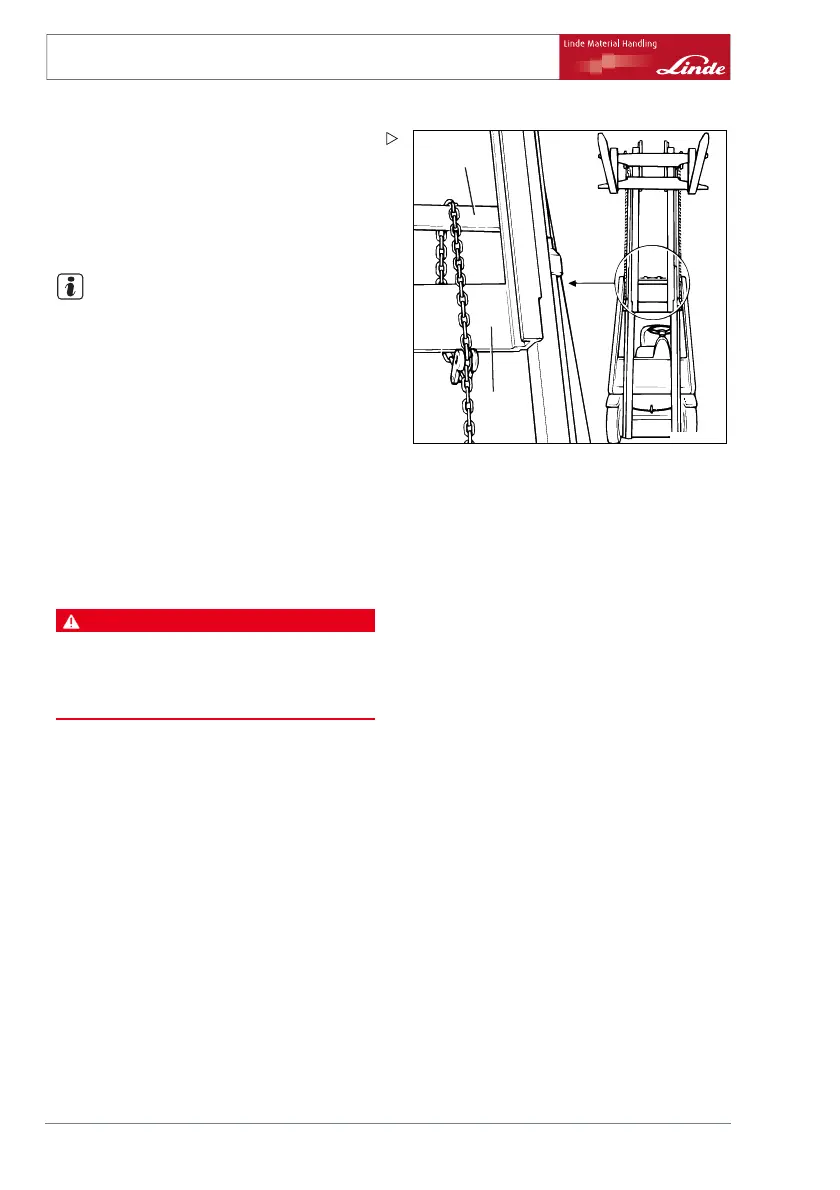

¾ Connect the chain over the cross traverse
of the outer mast (1) and under the cross
traverse of the inner mast (2).
¾ Lower inner mast to end of chain.
Duplex lift mast
NOTE
The benefit of this equipment version is that
full advantage is taken of the special free lift
height, even in very low rooms (cellars, wa-
gons, ships).
FUNCTION: The fork carriage is lifted to the
special free lift height via the chain deflection
pulley of the centre cylinder. Here it moves
twice as fast as the centre cylinder. The inner
mast is then lifted via the two outer cylinders,
taking the fork carriage with it. The centre
cylinder is positioned on the extendable inner
mast.
Securing the raised duplex lift mast
DANGER
Check chain load!
Select a safety chain with sufficient load bearing
capacity for the lift mast. Take the maximum lift
height into account.
¾ Extend lift mast.
96 Operating Instructions – 393 807 1001 EN – 08/2008
