Maintenance 5
Working on Linde lift mast and at the front of the truck

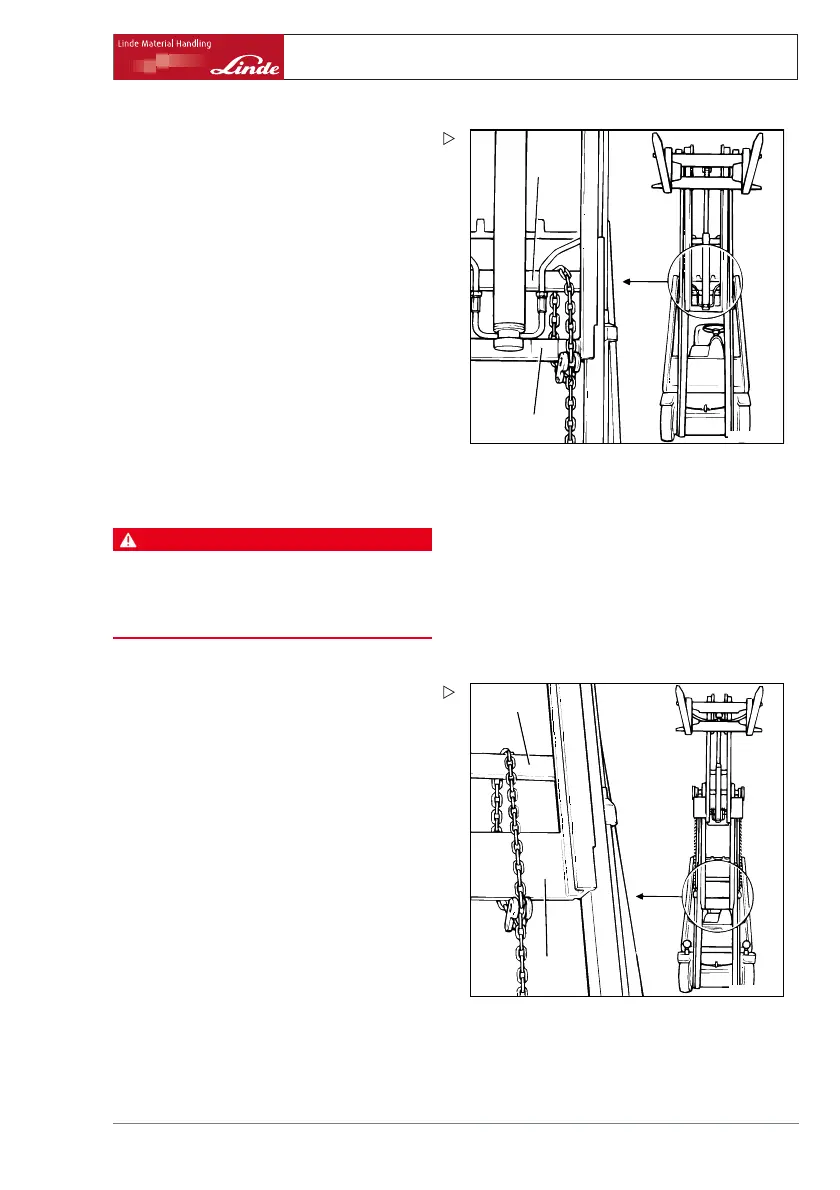

d3921483
1
2
¾ Connect the chain over the cross traverse
of the outer mast (1) and under the cross
traverse of the inner mast (2).
¾ Lower lift mast to end of chain.
¾ Lower fork carriage as far as it wi
ll go.
Triplex lift mast
FUNCTION: The fork carriage is lifted to the
special free lift height via the chain deflection
pulley of the centre cylinder. Two lift cylinders
then lift the inner mast. Once the inner mast
is fully extended, two additional lift cylinders
lift the centre mast, which is lifted together
with the inner mast and the fork carriage. The
centre cylinder is positioned on the extendable
inner mast.
Securing the raised triplex lift mast
DANGER
Check chain load!
Select a safety chain with sufficient load bearing
capacity for the lift mast. Take the maximum lift
height into account.
¾ Extend lift mast.
d3921484
1
2
¾ Join the chain over the cross traverse of the
outer mast (1) and under the cross traverse
of the centre mast (2).
¾ Lower lift mast to end of chain.
¾ Lower fork carriage as far as it will go.
Operating Instructions – 393 807 1001 EN – 08/2008 97
