Operation 4
Special equipment

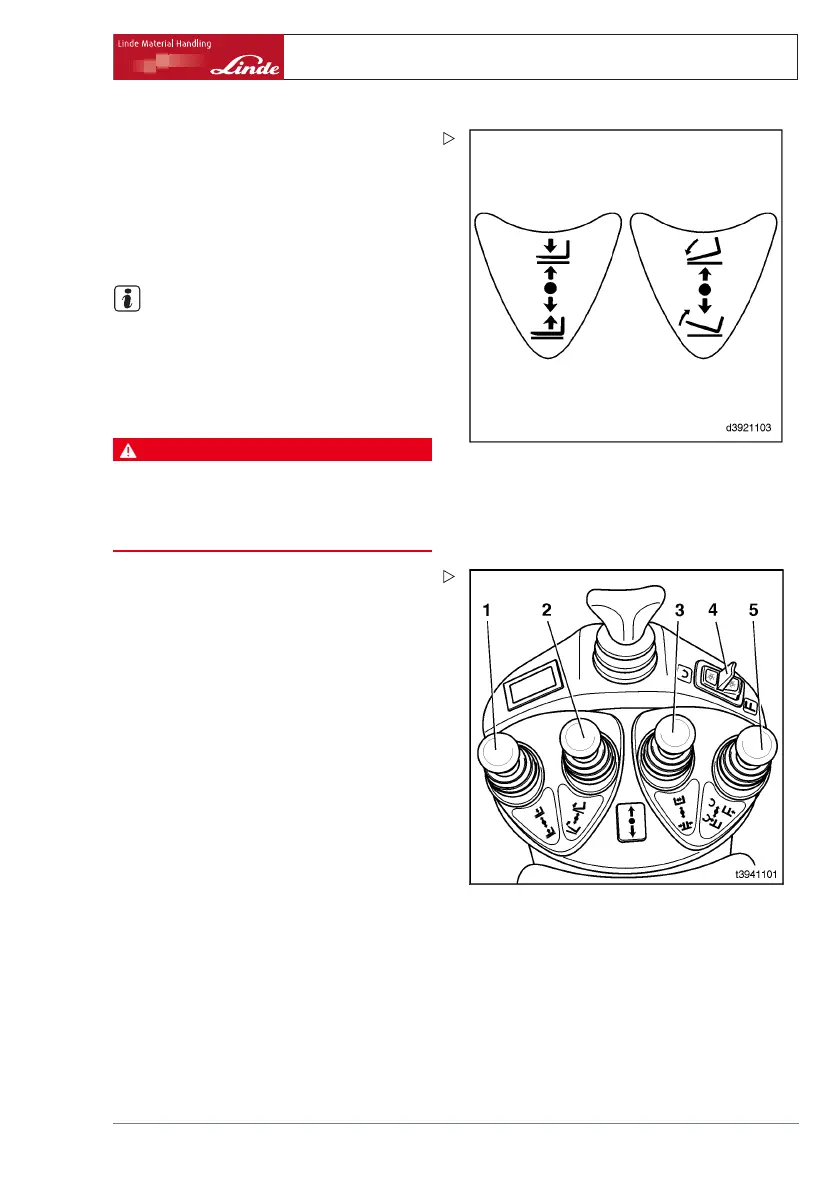

¾ Take note of the switching symbols with
arrows.
The actuating lever should always be operated
carefully, never jerkily. Moving the actuating
lever determines the lifting, lowering and tilt
speed. After the actuating lever is released, it
automatically returns to its initial position.
NOTE
The lifting system and attachm
ents only func-
tion with the engine running an
d the driver’s
seat occupied.
Lifting the fork carriage
DANGER
When lifting the lift mast there is an increased risk
of falling and crushing.
For this reason it is not permitted to step onto the
fork arms when lifted without a protective cage.
¾ Pull actuating lever (1) backwards.
Lowering the fork carriage
¾ Push actuating lever (1) forwards.
Tilting the lift mast forwards
¾ Push actuating lever (2) forwards.
Tilting the lift mast backwards.
¾ Pull actuating lever (2) backwards.
Operating attachments
The forklift truck is equipped with three addi-
tional functions (e.g. fork adjustment, rotating
unit, sideshift etc.). Take note of the oper-
ating pressure and operating manual for the
attachment. Two other actuating levers are
then attached for operating the attachments.
The actuating lever (5) is used to operate two
attachments which are controlled via a toggle
switch (4).
Operating Instructions – 393 807 1001 EN – 08/2008 57
