4 Operation
Special equipment
WARNING
For attachments that perform a clamping operation
(e.g. bale clamp), a lockable lever must be used.
If your truck is not fitted with this equipment, please
contact your authorised dealer.
NOTE
Before fitting an attachment, a depressurisa-
tion circuit (special equipment) can be used to
depressurise the hydraulic system for the au-
xiliary hydraulics so that the connection on the
attachment can be affixed to the connection
on the fork carriage.
¾ Switch off the engine.
¾ Switch on the ignition.
¾ Operate the actuating lever for the respec-
tive auxiliary hydraulics several times.
¾ Unscrew the union nuts on the fork carriage.
¾ Screw on hoses for attachment or connect
plug connectors.
CAUTION
Attachments affect the load capacity and stability of
the forklift truck.
Attachments which are not supplied with the forklift
truck should only be used when the authorised dea-
ler has checked that safe operation is ensured by
the allocation in terms of load capacity and stability.

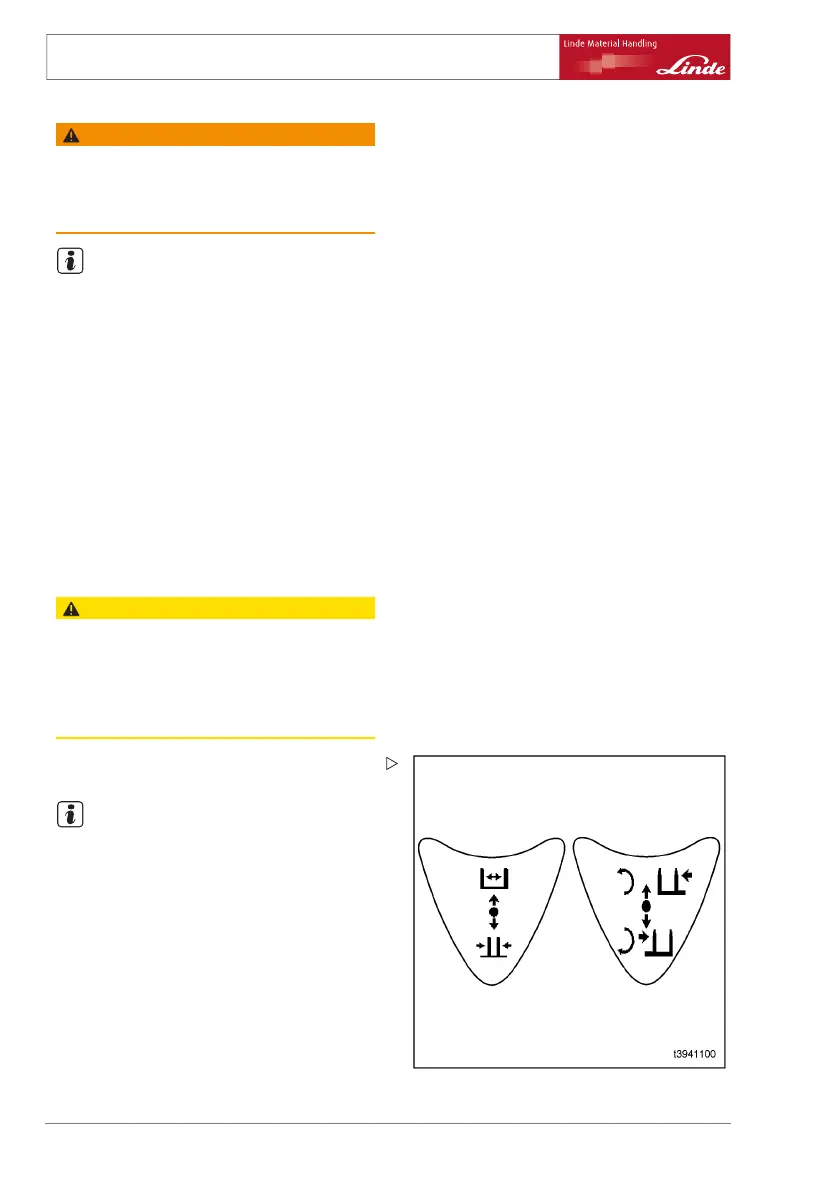

¾ Take note of the switching symbols with
arrows.
NOTE
For every attachment, a label stating the load
capacity of the truck plus attachment must
be affixed above the switch console on the
top right in the driver’s overhead guard and
a symbol sticker for the relevant attachment
affixed behind the actuating lever or on the left
and right next to the toggle switch (4).
58 Operating Instructions – 393 807 1001 EN – 08/2008
