Operation 4
Special equipment

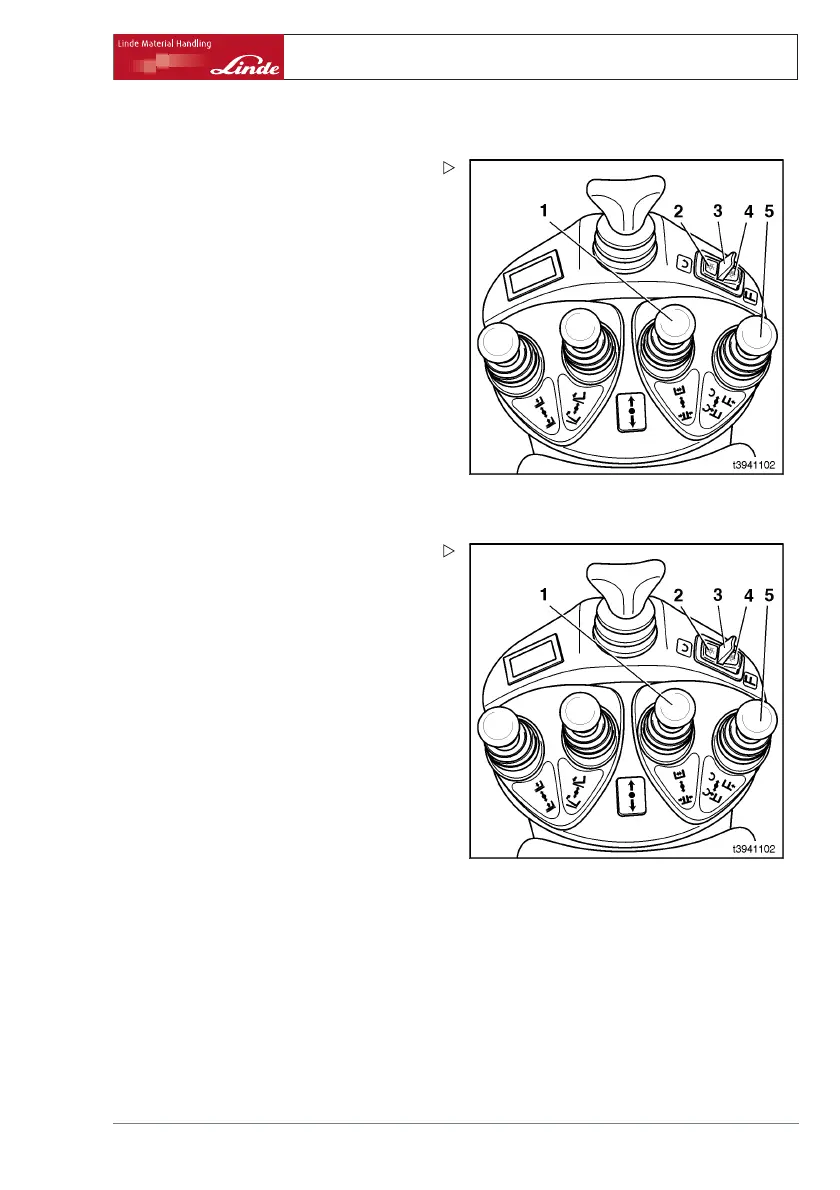

Operating fork adjustment
¾ Push actuating lever (1) forwards.
Fork arms move outwards.
¾ Pull actuating lever (1) backwards.
Fork arms move inwards.
Operating the rotating unit
¾ Press left-hand side (2) of toggl
eswitch(3).
Green switch illumination lit up.
¾ Push actuating lever (5) forwards.
Unit moves anticlockwise.
¾ Pull actuating lever (5) backwards.
Unit moves clockwise.
Operating the sideshift
¾ Press right-hand side (4) of toggle
switch
(3).
Orange switch illumination lit up.
¾ Push actuating lever (5) forwards.
Sideshift moves to the left.
¾ Pull actuating lever (5) backwards.
Sideshift moves to the right.
Operating Instructions – 393 807 1001 EN – 08/2008 59
