LNC T6 Series User Manual

LNC-Lathe New T6-Series
RS232 COMMUNICATION SOFTWARE
132 LNC Technology Co., Ltd.
Communication Connection（RS232）-【 General Software 】

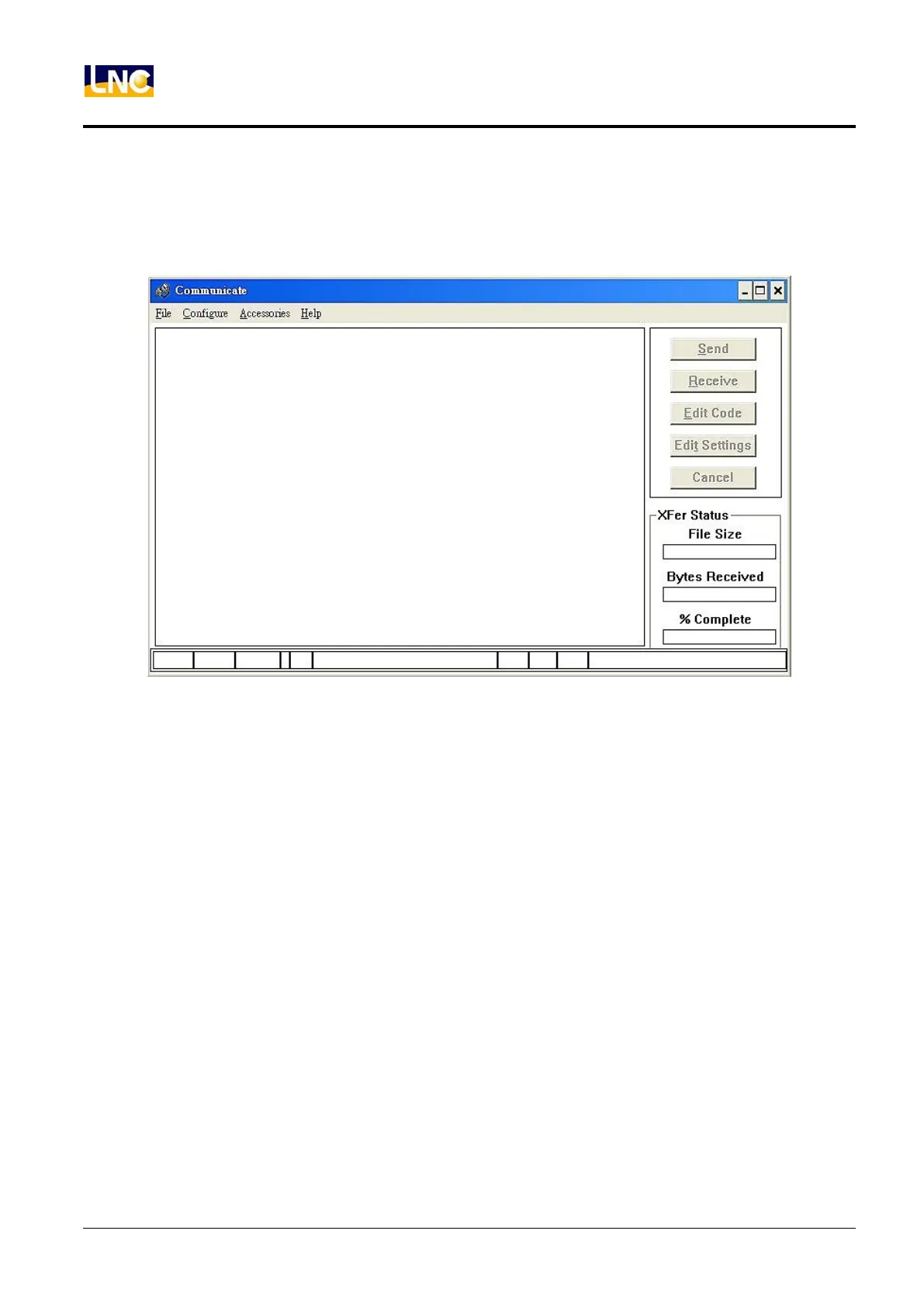

At below content, about the software of PC end, we will take SMART CAM’s Communication V8.02 as an
example.
Note：
1. Please make sure communication setting should be the same with NC end. (Like above picture) The port
setting will depend on exact connection.
2. Communication software on PC end could be “share ware— comEDITcnc” which was provided by SoftServo
Software or others, as long as this software could provide RS232 functions.
PC end operation steps：
Make sure PC end COM1 is free and communication setting is the same with NC end.
Select the file you want to transfer.
Press Send button, NC end will start to receive.
(For safety, we recommend that you make single block enable and minimize override at NC end)
When "Transfer is complete" shows on PC end, it means the transmission is complete.
Below is the window of PC end’s communication setting page.Go to [Configure]> [Edit Machine Settings] choose
a correct setting to connect with LNC.
