LNC-Lathe New T6-Series
CNC Operation
10 LNC Technology Co., Ltd.

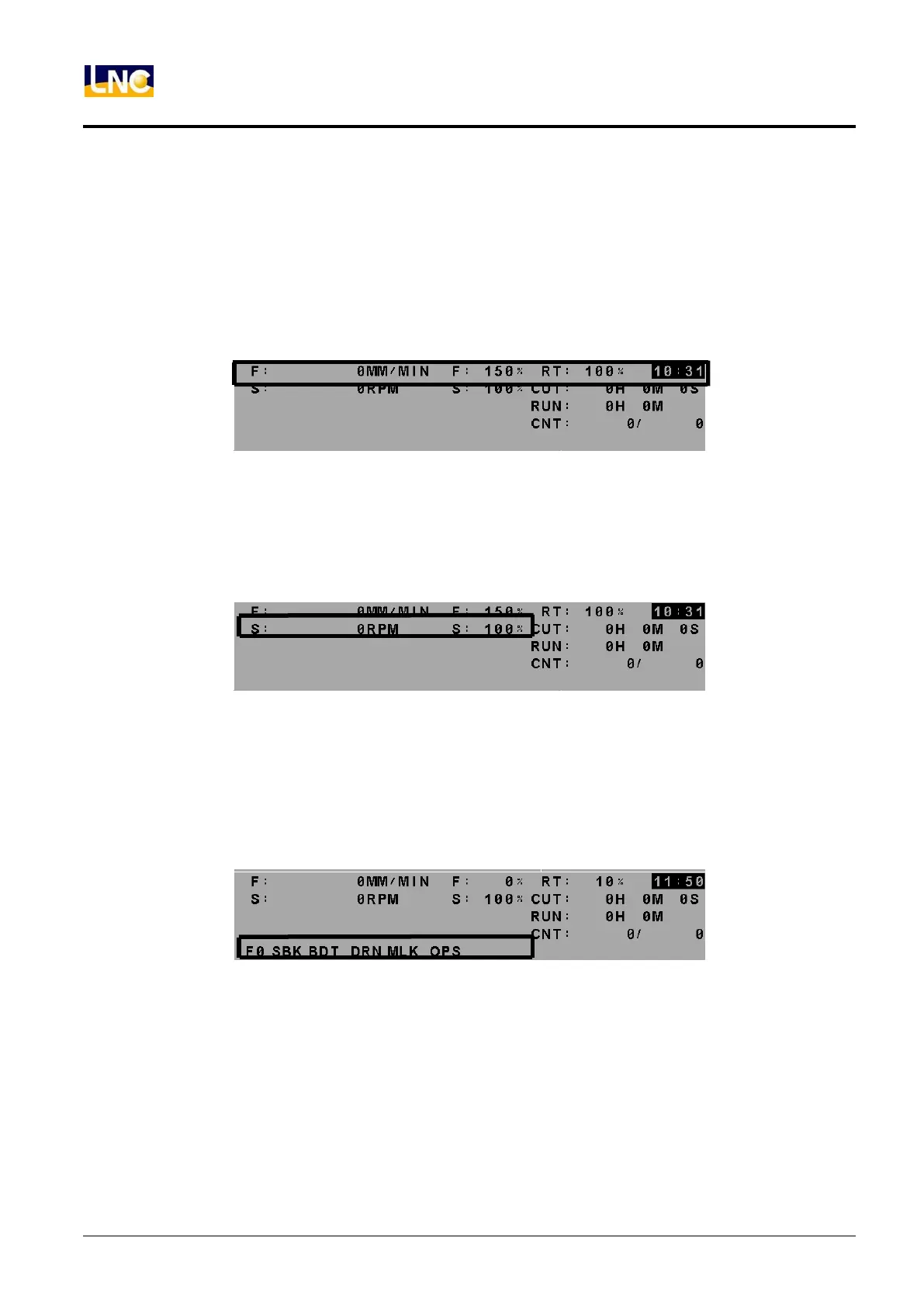

Actual Feed Rate
Feedrate(mm/min)：Feed rate of servo structure-is the composite speed for each servo axis. Unit is mm/min.
Feedrate percentage(%)：Feedrate percentage-with the federate dial to choose 15 selections from 0% to 150%.
Quick feed percentage (%)：Quick feed percentage-with the quick feed button to have 4 selections of <LOW>、
<25%>、<50%>、<100%>.
Time：Current time.
Rotation situation
Rotational speed (rpm/min)：Current spindle actual rotation. Unit is rpm/min.
Rotational speed percentage(%)：Rotational speed percentage-with rotation button<UP>、<DOWN> to have 12
selections of 0%~120%.
Hint message display situation
Message：According to system situation, there are 7 messages as below :F0（current federate is 0）、 SBK（single
block）、 BDT（selective block jog）、 DRN（dry run）、 MLK（machine lock）、 OPS（optional program pause）、
ABS（absolute encoder reader）
Situation of CUT, RUN, CNT
CUT(H”M”S)：Every time when users press Cycle Start button, cutting time will reset(return zero) and start to time
again until this working process finish.
RUN(H”M)：Running time is the total cutting time after every booting, until the system shuts down, the time will be
reset to be zero. You can also use【TIME CLEAR】 to make it to be zero.
