LNC T6 Series User Manual

LNC-Lathe New T6-Series
CNC Operation
22 LNC Technology Co., Ltd.
 【EDIT CYCL】
This function key is effective when the editing cursor is stop at 【INS CYCL】 command block or there is G
Code in that 【INS CYCL】 block. This function key is for users to edit previous program. To press this key
will enter into “Insert-3” page. If there is no assigned M Parameter (working style) value after G code,
“Insert-2” page will occur. Operation and insert is totally the same. Each command’s detail description,
please refer to【CAM】group introduction.
 【LPOSITION】

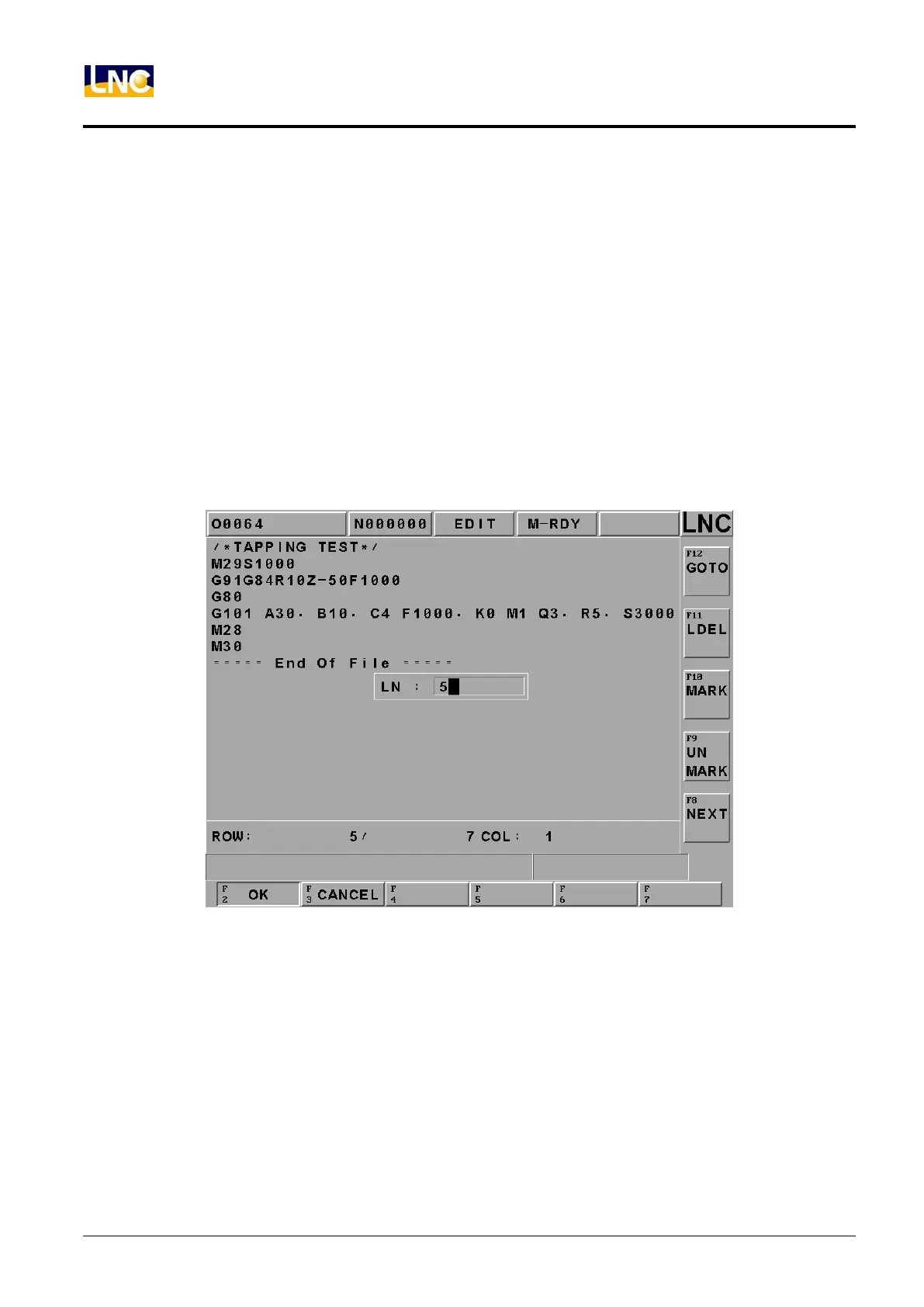

After pressing right side【LPOSITION】function key, you can input the line number directly at dialogue box
input program and press enter to make the cursor to move to this location, as below:
（Note）Users can not do cycle start under edit mode.
