⊙ END X：final drilling hole point diameter coordinate, 0.
⊙ END Z：final drilling hole point Z coordinate
【Function Keys at Screen Bottom】
※ Windows Scaling：scale-in or return to original size of figure shape of display box at center of screen.
※ Preview：preview the Figure shape of the key-in data
※ Return：switching screen to the main function screen.
【Function Keys at Right of Screen】
※ SCALE：pressing the【SCALE】key at bottom of the screen for the “SCALE” key to occur. Scale-in the
selected Figure. A figure dialog box will occur when pressing this key. Users are able to use
【UP】, 【DOWN】, 【LEFT】 and 【RIGHT】key to move the dialog box. Moving the dialog box
to the wanted scale-in position and pressing the 【ENTER】key to complete the action.
※ Fittest Size: pressing 【WINDOW】at screen bottom for this function to be occur. This will return to the
original size of the Figure shape at inside of the dialog box at screen center.
※ Return：pressing the【SCALE】key at bottom of the screen to switch to the geometry drilling screen.
◇ Screen of Geometry Profile is as below

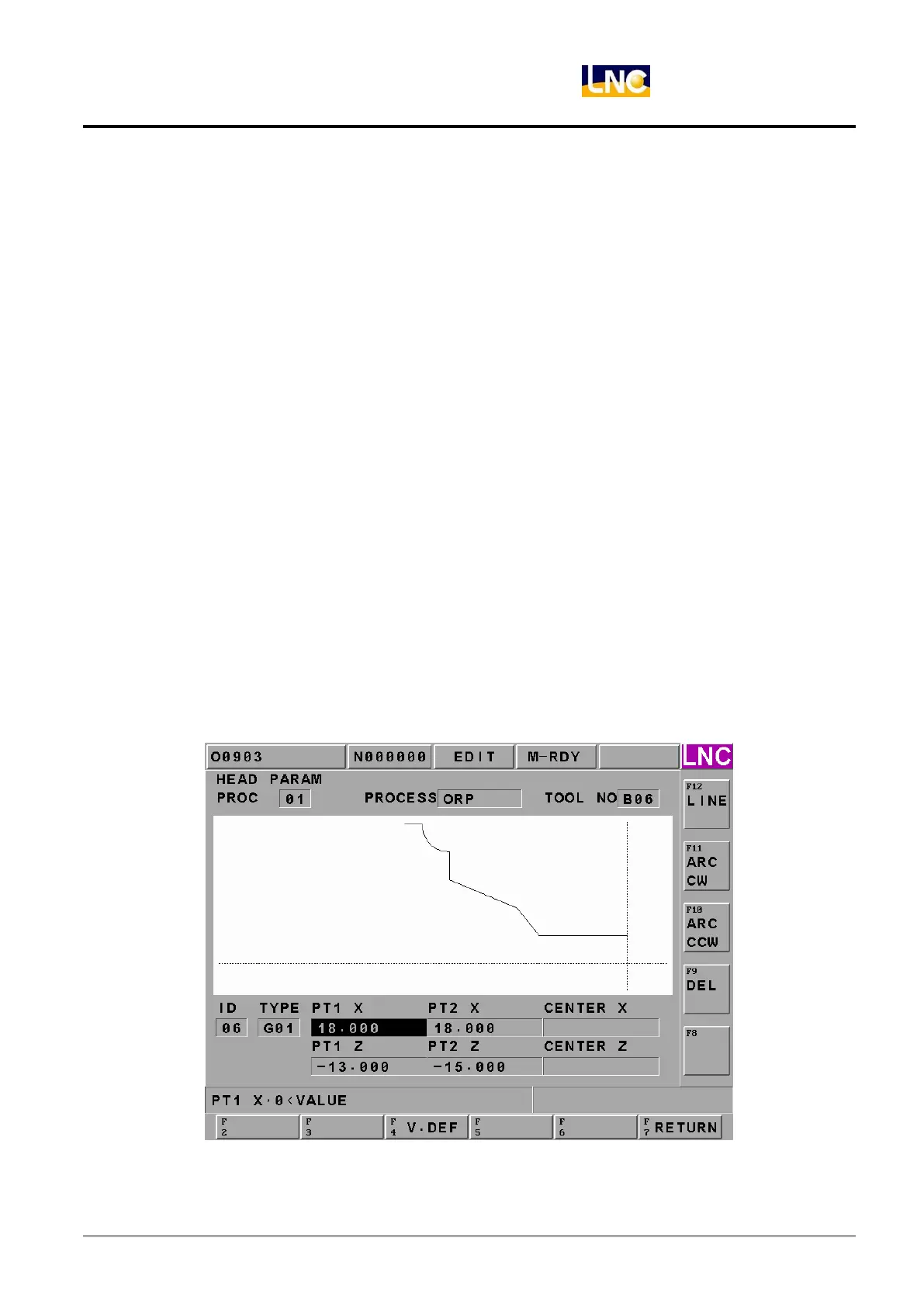

Figure 1.6-11 Geometry Profile Page
