※ Zoom In：pressing the【SCALE】key at bottom of the screen for the “SCALE” key to occur. Scale-in the
selected Figure. A figure dialog box will occur when pressing this key. Users are able to use
【UP】, 【DOWN】, 【LEFT】 and 【RIGHT】key to move the dialog box. Moving the dialog box
to the wanted zoom-in position and pressing the 【ENTER】key to complete the action.
※ Fittest Size：pressing 【WINDOW】at screen bottom for this function to be occur. This will return to the original
size of the Figure shape at inside of the dialog box at screen center.
※ Return：when pressing【SCALE】 key at screen bottom to switch to the geometry profile screen.
◇ Screen of Geometry Grooving is as below

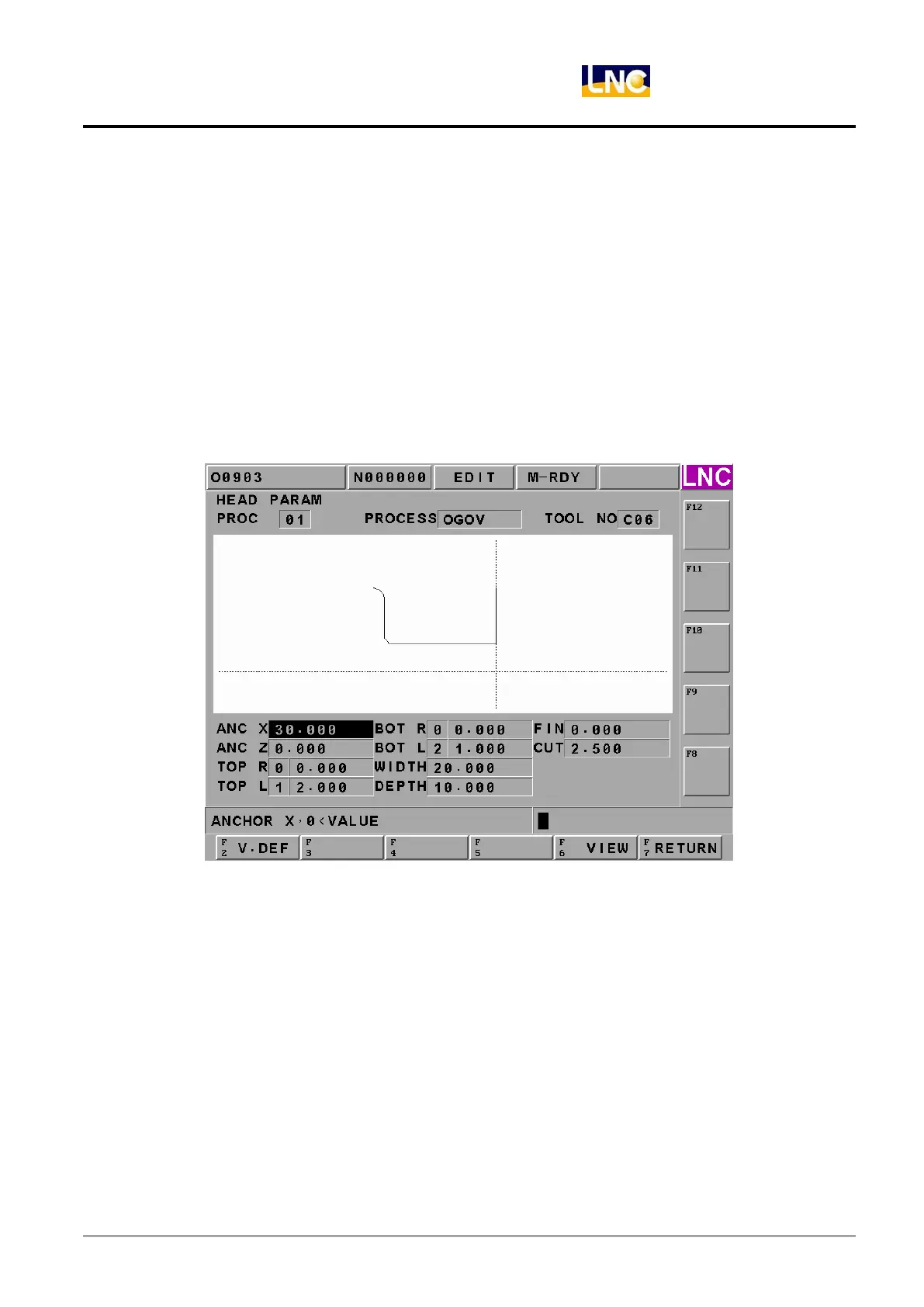

Figure 1.6-12 Geometry Grooving Page
【Column Description】
※ Procedure：display the currently procedure code number
※ Working Method：display the working name of the currently editing program.
※ Tool NO.：display the selected tool NO. of the currently editing procedure. 4 types of tool NO. Type A for
drilling tool, Type B for pattern tool, Type C for grooving tool, and Type D for thread tool. The
number should be the tool NO. from the tool clear list of the screen.
