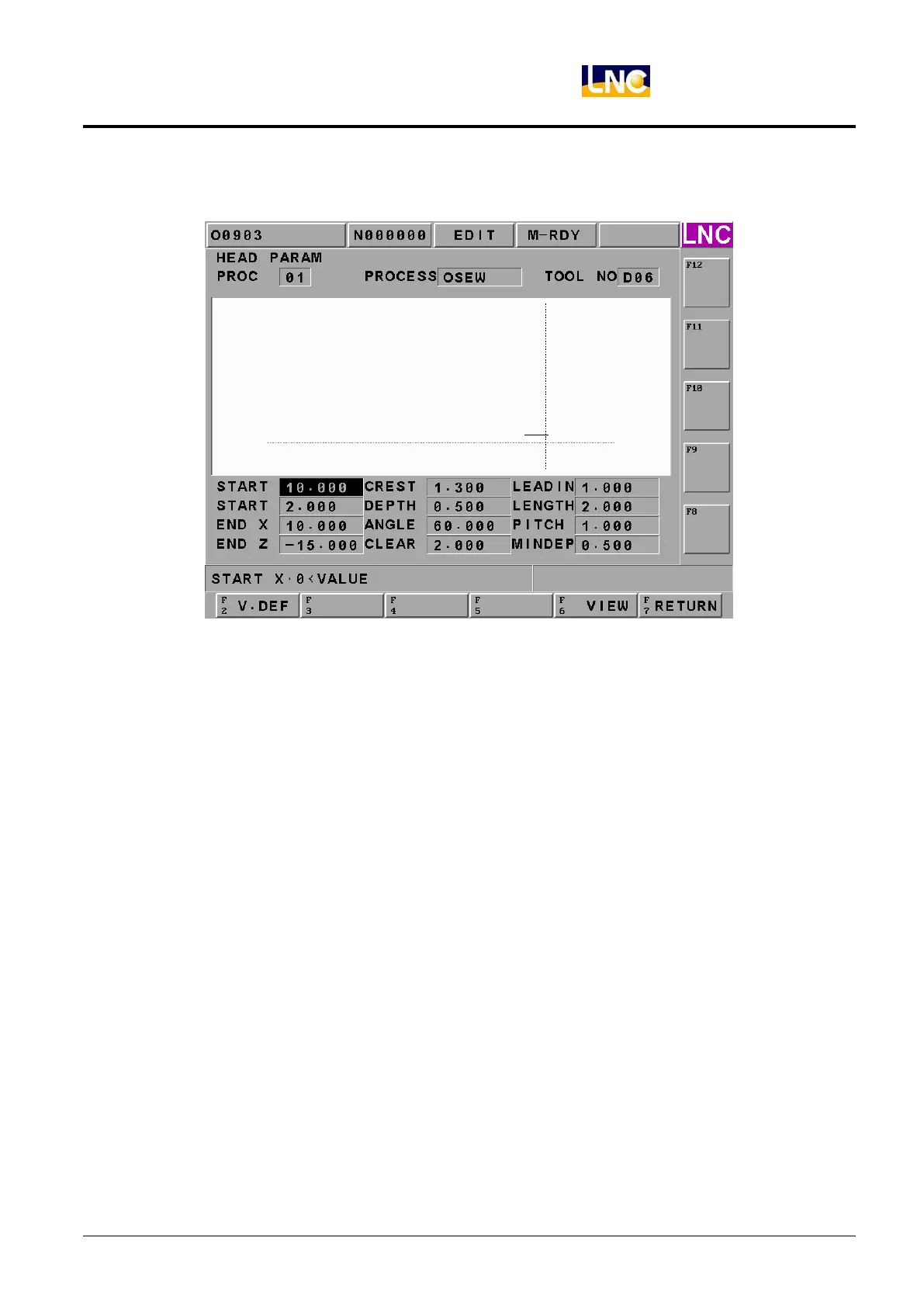

◇ Screen of Geometry Thread is as below
Figure 1.6-13 Geometry Thread Page
【Column Description】
※ Procedure: display the currently procedure code number.
※ Working Method: display the working name of the currently working programs.
※ Tool NO.：display the selected tool NO. of the currently editing procedure. 4 types of tool NO. Type A for
drilling tool, Type B for pattern tool, Type C for grooving tool, and Type D for thread tool. The
number should be the tool NO. from the tool clear list of the screen.
※Cutting Parameter Column：
⊙ START：start tapping diameter coordinate
⊙ START Z：start tapping Z coordinate
⊙ END：start tapping diameter coordinate
⊙ END Z：end tapping Z coordinate
⊙ CREST：thread height
