Installation of the Logipix Full HD Dome camera

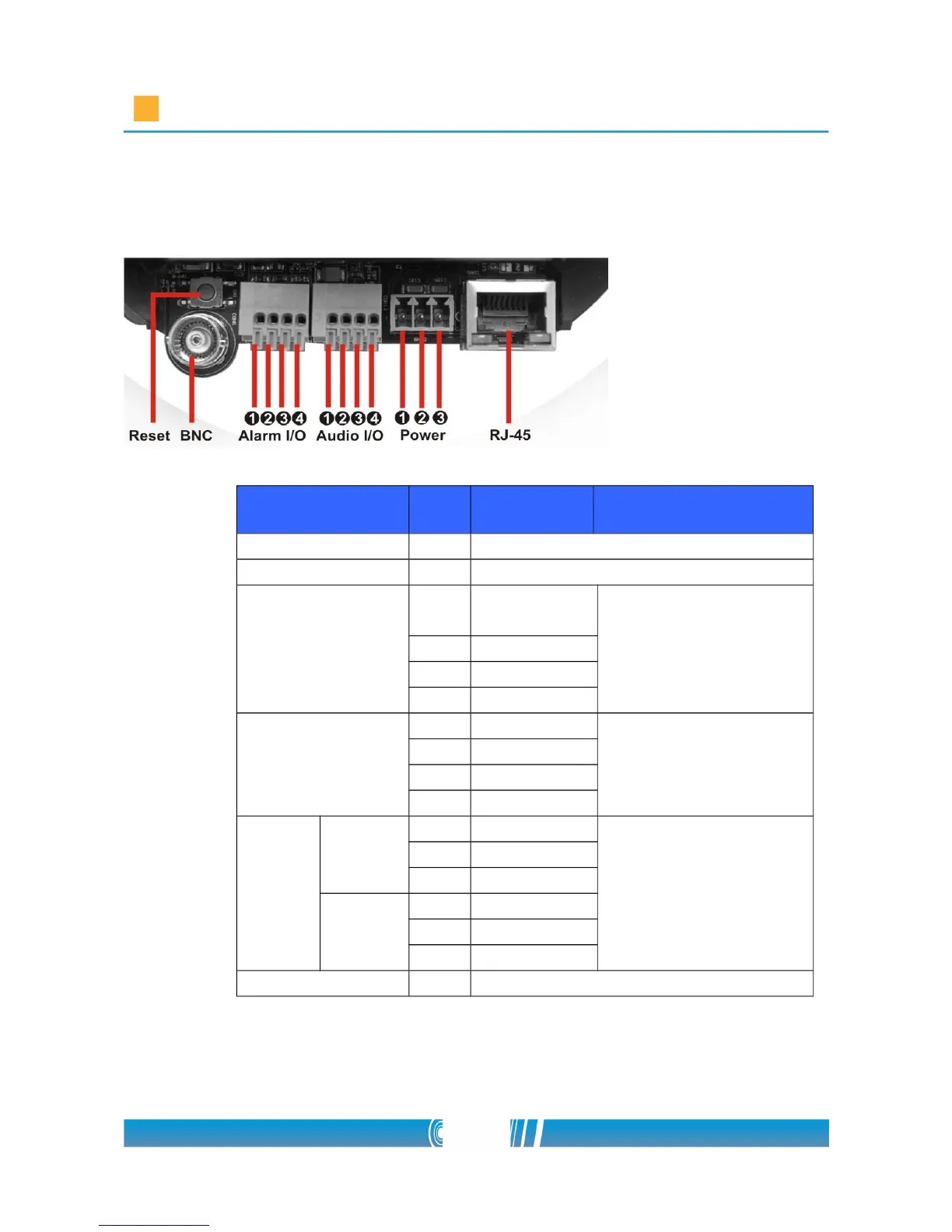

Connectors of the camera
Connector Pin
No.
Definition Remarks
Reset Button - Restore to factory default
BNC - Analog Video Output
Alarm I/O
1 GND (Input
－ )
Alarm connection
2 Input＋
3 Output－
4 Output＋
Audio I/O
1 Output (L)
Two-way audio
transmission
2 Output (R)
3 GND
4 Input
Power
DC 12V
1 Power
Power connection
2 Reserved
3 GND
AC 24V
1 Power-1
2 Earth GND
3 Power-2
RJ-45 - 10/100 Mbps Ethernet/ PoE
