Logipix LOBJ-05P - The Front View

Installation Guide

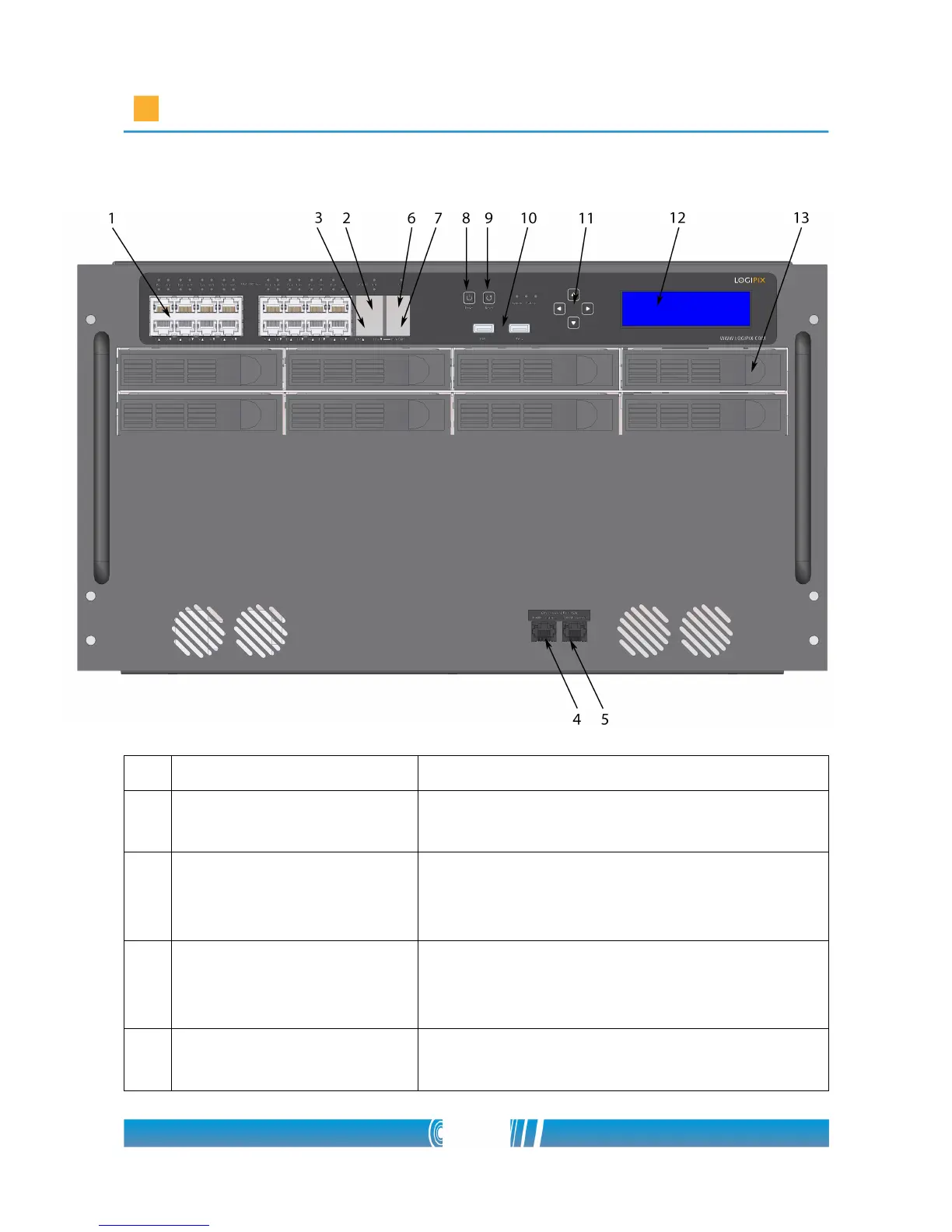

The front view
Port / Button Function
1 100 MBps Ports 1-16 LPoE ports for direct Hybrid Extender
connection
2 GIGABIT Port G17 Camera VLAN – Gigabit port for the Logipix
cameras (Local Network Switch must be
connected here)
3 GIGABIT Port G18 Camera VLAN – Gigabit port for the Logipix
cameras (Local Network Switch must be
connected here)
4 GIGABIT Port G19 VMS VLAN – Gigabit port for company
network connection
29/80
