Appendix J: Recording Audio

• 16-channel model only: BNC to RCA adapters (not included) are required to connect RCA

devices to BNC ports. Use the included Audio Harness cable to connect Audio for channels

5~16.

3 Right-click

to open the Menu Bar and click the Main Menu button ( ).

4 Cl

ick Record and select the MainStream tab.

5 Ens

ure the Audio checkbox is checked next to the channel the audio-enabled camera is

connected to.

6 Cl

ick Apply to save your changes.

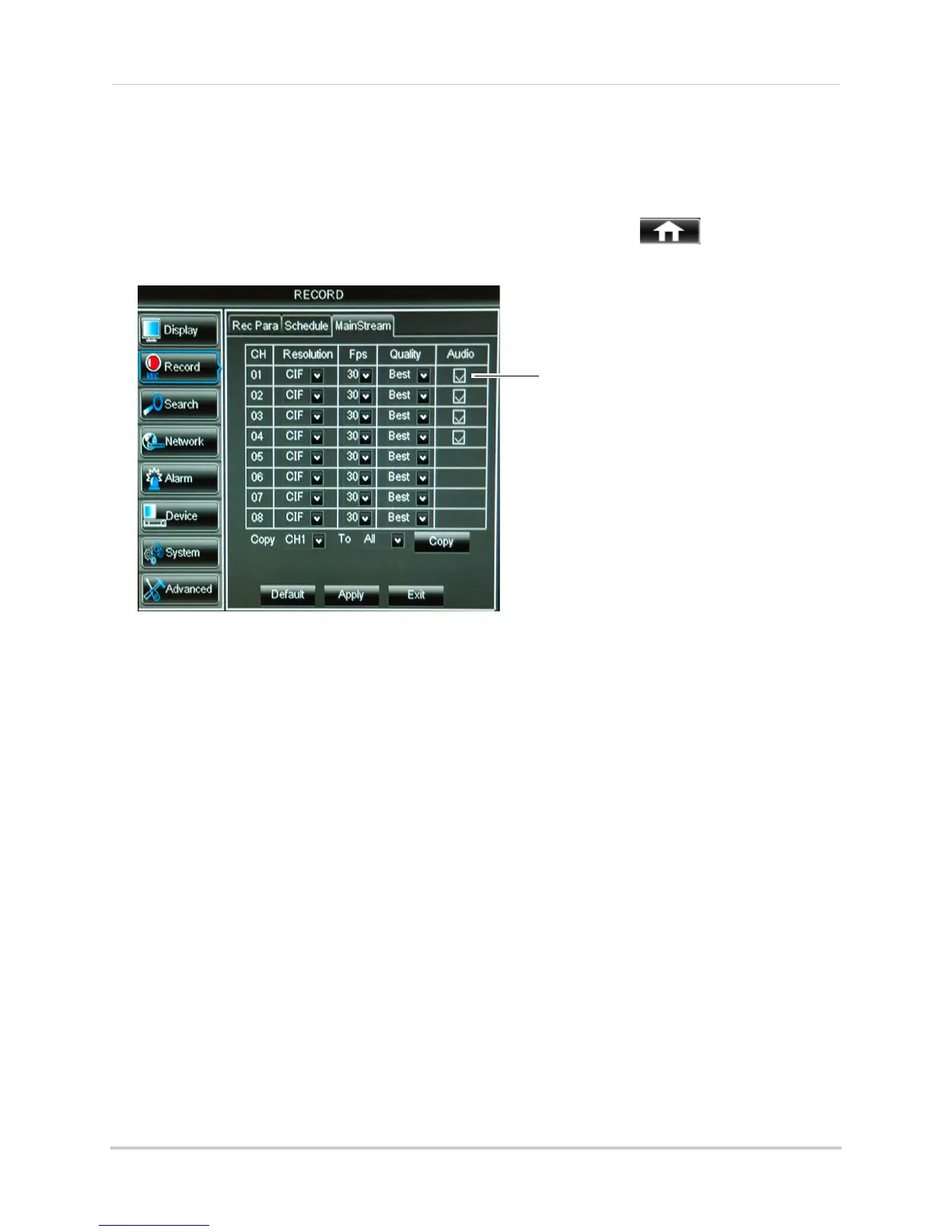

Check Audio to enable audio

recording on each channel

Default Chapter3
