Appendix H: Connecting a PTZ Camera
Appendix H: Connecting a PTZ Camera

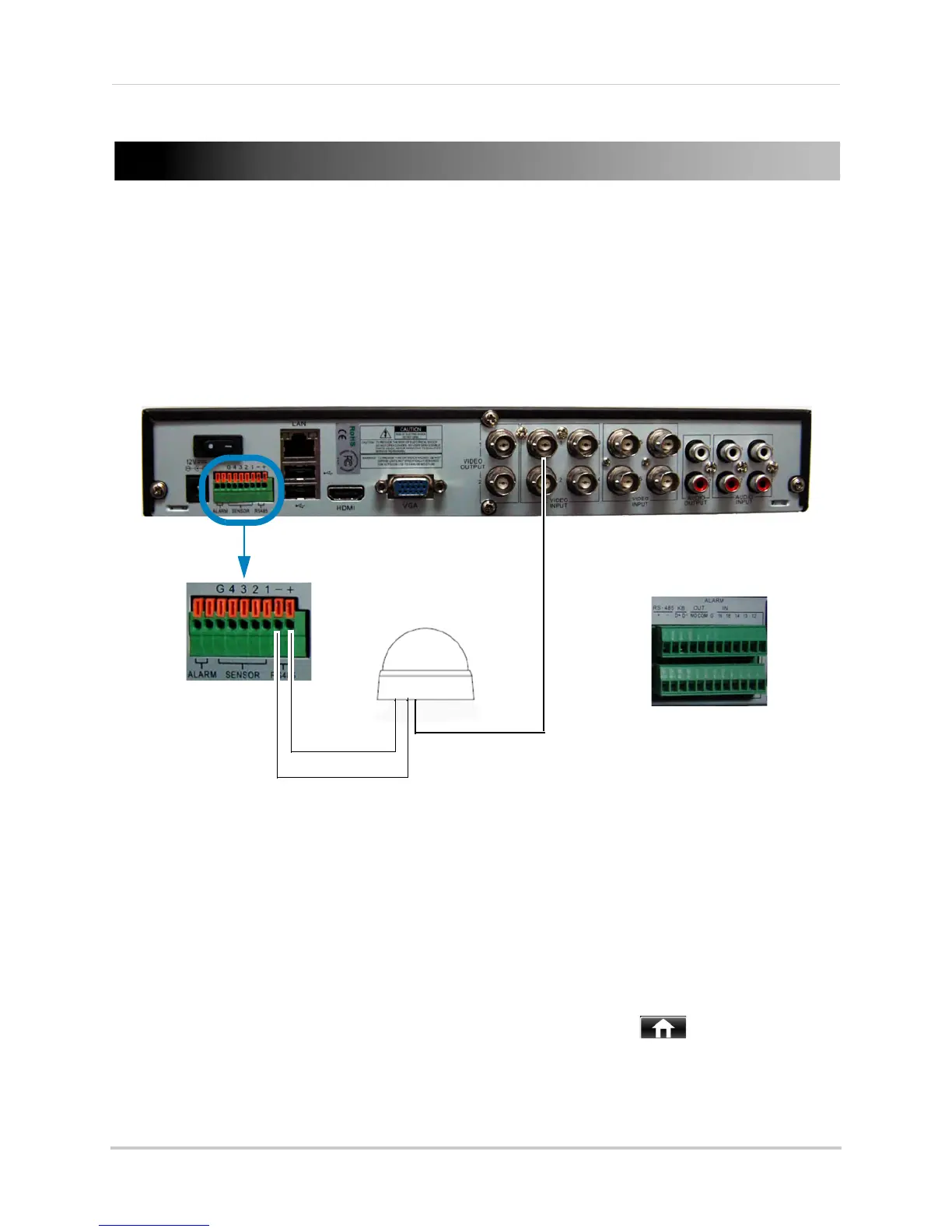

You can connect RS-485 PTZ cameras (not included) to the RS485 ports on the rear panel.
To connect a PTZ camera to the system:
1 Co
nnect the Transmit+ (TX+) Cable to the + side of the RS485 port on the rear panel.
2 Con
nect the Transmit- (TX-) Cable to the - side of the RS485 port on the rear panel.
3 Co
nnect the video cable to a BNC port.
Configuring PTZ Settings
Before you can use the PTZ controls, you must enter your camera’s PTZ protocol details
into the DVR.
Prerequisite:
• Obtain the PTZ protocol details for your camera. Check your camera’s instruction manual for
det
ails.
To enter PTZ camera settings in the DVR:
1 Right-click
to open the Menu Bar and click the Main Menu button ( ).
2 Cl
ick Device and select the PTZ tab.
BNC
TX+
TX-
8-channel model shown
Alarm block on 16-channel model
Note: Use a flat-head screwdriver to
loosen the screws above the RS485
ports, then insert the cables and
tighten the screws to secure
