Basic Setup
Connecting BNC Cameras to your DVR
1 Connect the male power connector on the BNC extension cable to the female power
connector on the camera.
• Connect the BNC connector to the camera.
2 Co
nnect the female power connector on the BNC extension cable to the power adapter.
3 Co
nnect the BNC connector to one of the Video Input ports on the rear panel of the DVR.
4 Plug the camera power adapter to a power outlet.
Connecting and Removing BNC Cables
BNC (Bayonet Nut Connector) is a special connector that locks on to the system port and
cannot be accidently removed.
To connect or remove a BNC connector:
• Push the BNC connector firmly into the BNC port and simultaneously twist the connector
cl
ockwise to tighten.
• To remove a BNC connector from a BNC port, push and simultaneously twist the connector
c
ounter-clockwise to loosen the BNC connector.

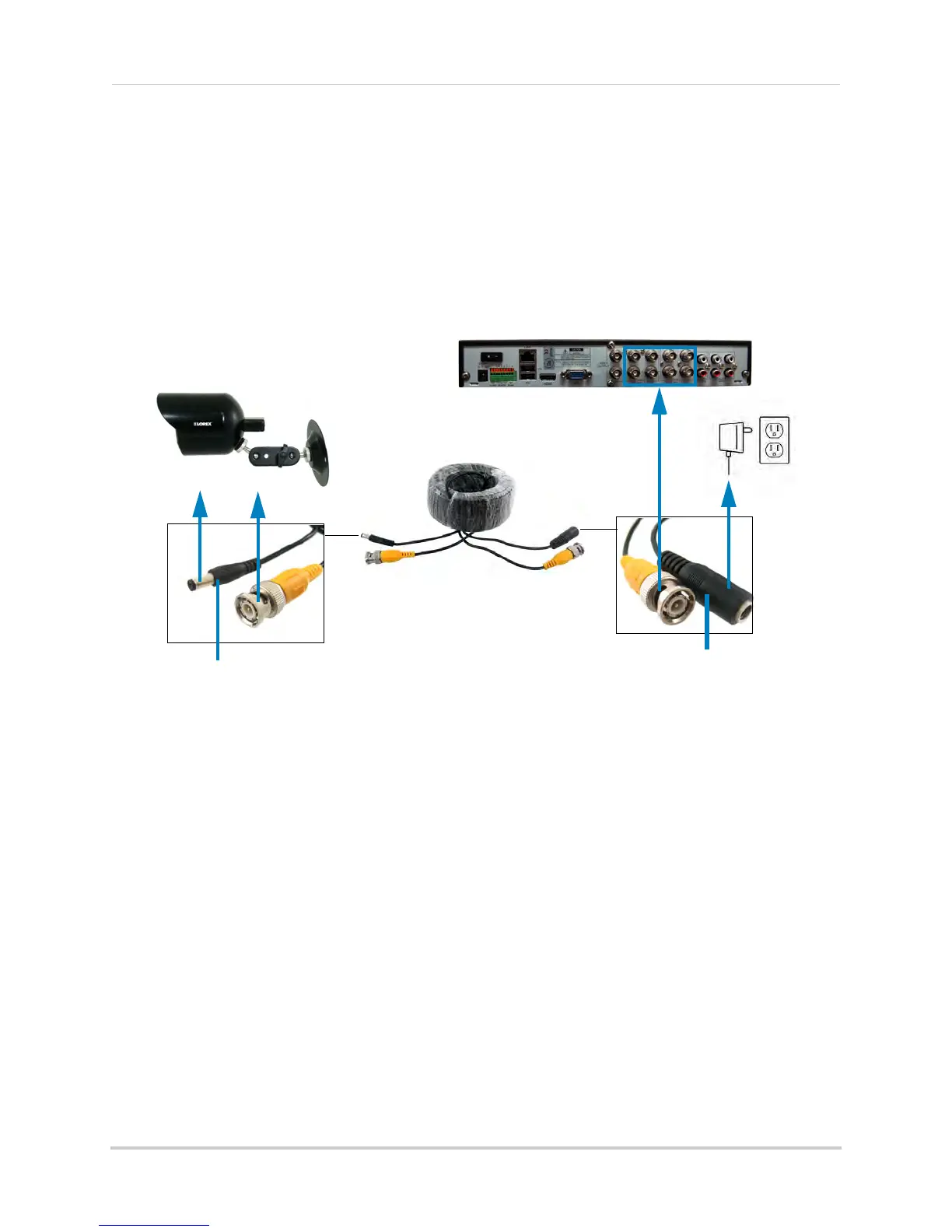

BNC Extension cable
Female power connector
Digital Video Recorder
(8-channel model shown)
Male power connector
BNC
