INSTALLATION
Installation of the MAC155 Probe is relatively simple. It is mechanically
mounted to the instrumentation port using a mounting adapter. TheMAC155
Probe must be mounted in a horizontal position (-0°, +15°), refer to Figure 4.
Electrical connections are made through two waterproof (NEMA 4 – IP 65)
connectors. Although the MAC155 Probe is suitable for outdoor installation, it
should not be mounted where it would be exposed to direct sun light, or high
ambient temperature; unless the case cool option is used.
LDO NOT install the MAC155 Probe in a location where it will be exposed
to direct sun light or high ambient temperature; unless the case cool option is
used.
MAC155B
M
A
C
1
5
5
B
MAC155B
LEVEL
YES
M
A
C
1
5
5
B
+15
NO
LEVEL

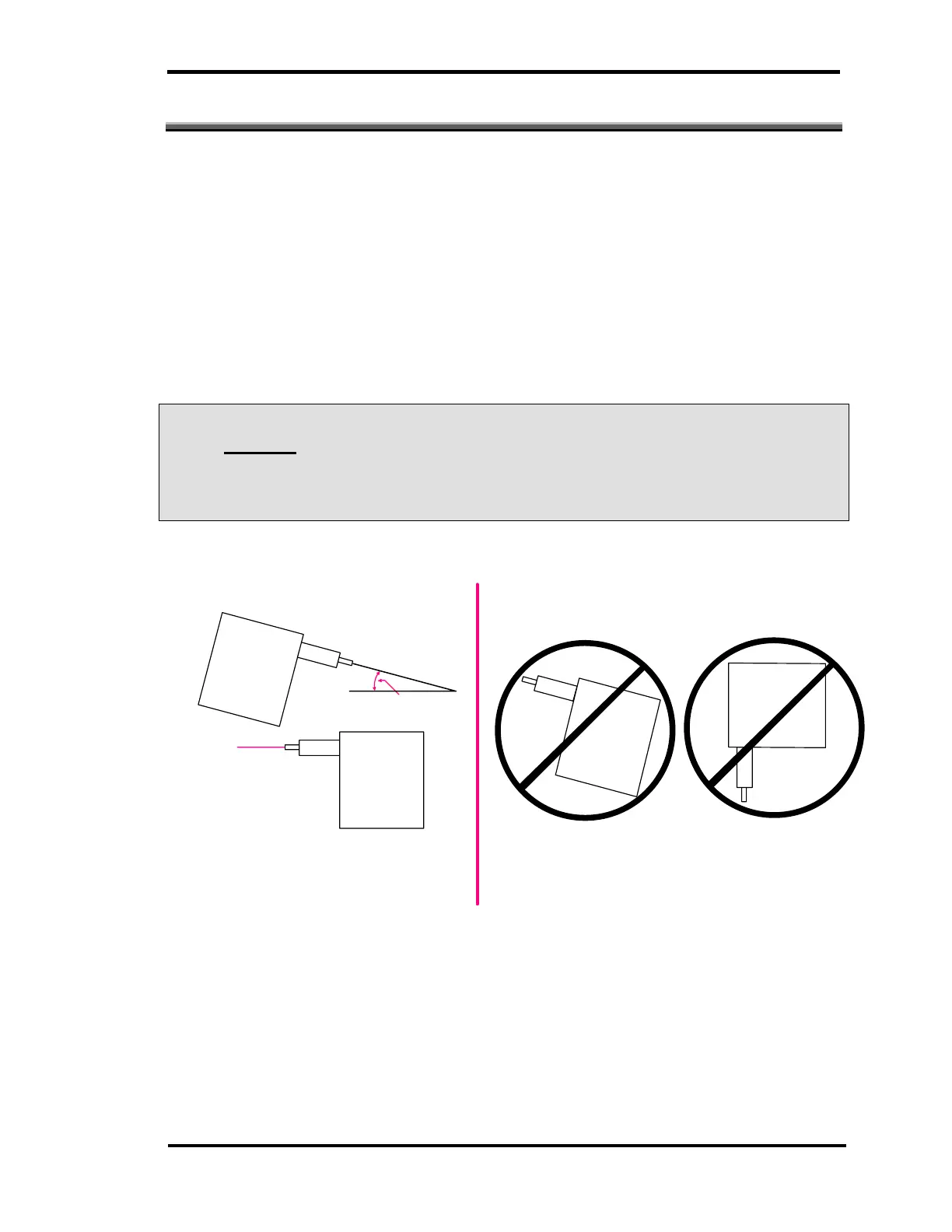

Figure 4 – MAC155 Probe Mounting
