MODBUS RTU ADDRESS SET UP (Option)

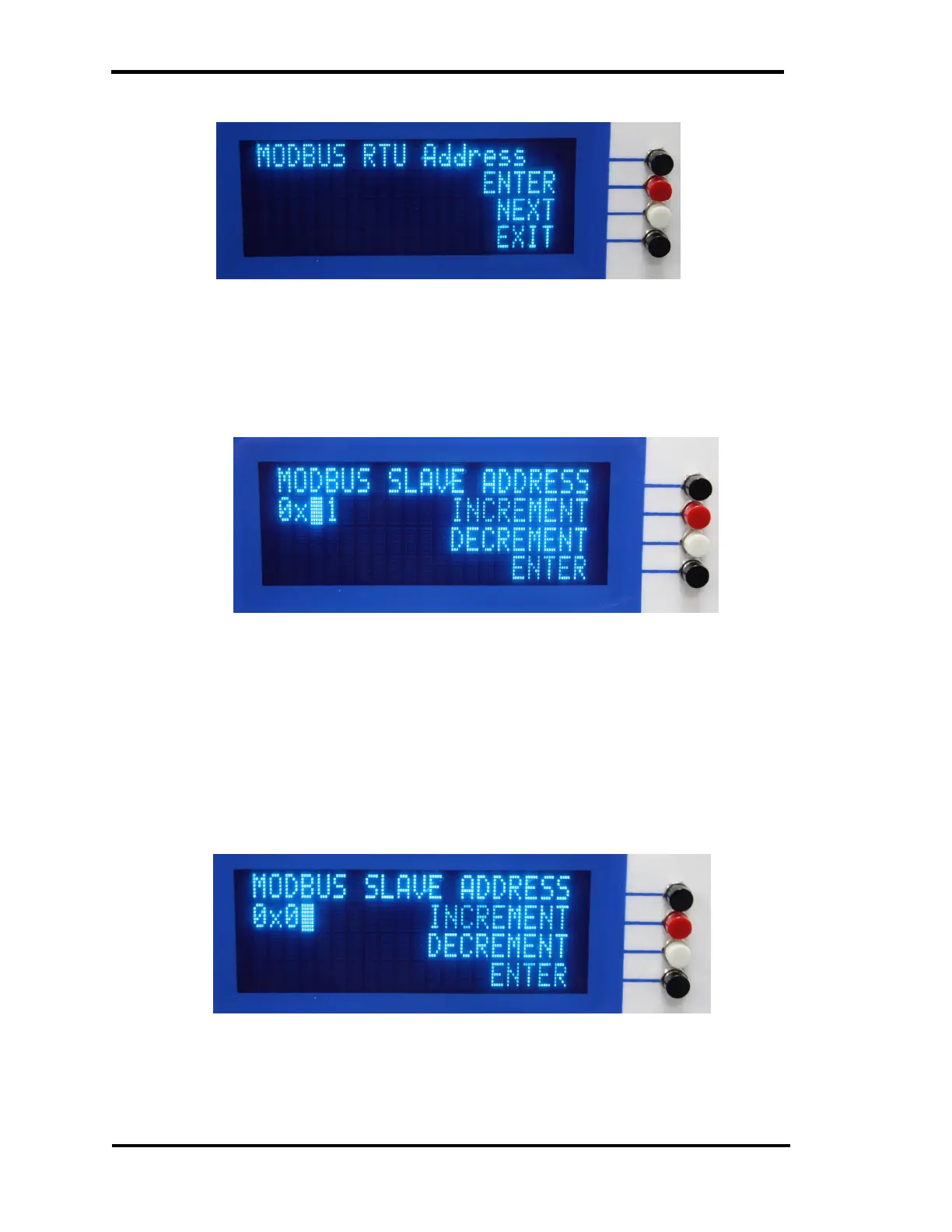

Figure 38 - MODBUS RTU Address setup
This menu item is for setting the MODBUS RTU slave address for the
MAC155. After pressing enter the following screen will appear.
Figure 39 - MODBUS address setup 1
Press the INCREMENT or DECREMENT buttons to select the 1
st
digit of the
desired MODBUS slave address. Pressing enter will enter the first digit and
move the cursor to the 2
nd
digit as shown below.
Figure 40 - MODBUS address setup 2
