MODBUS RTU BAUD RATE SET UP (Option)

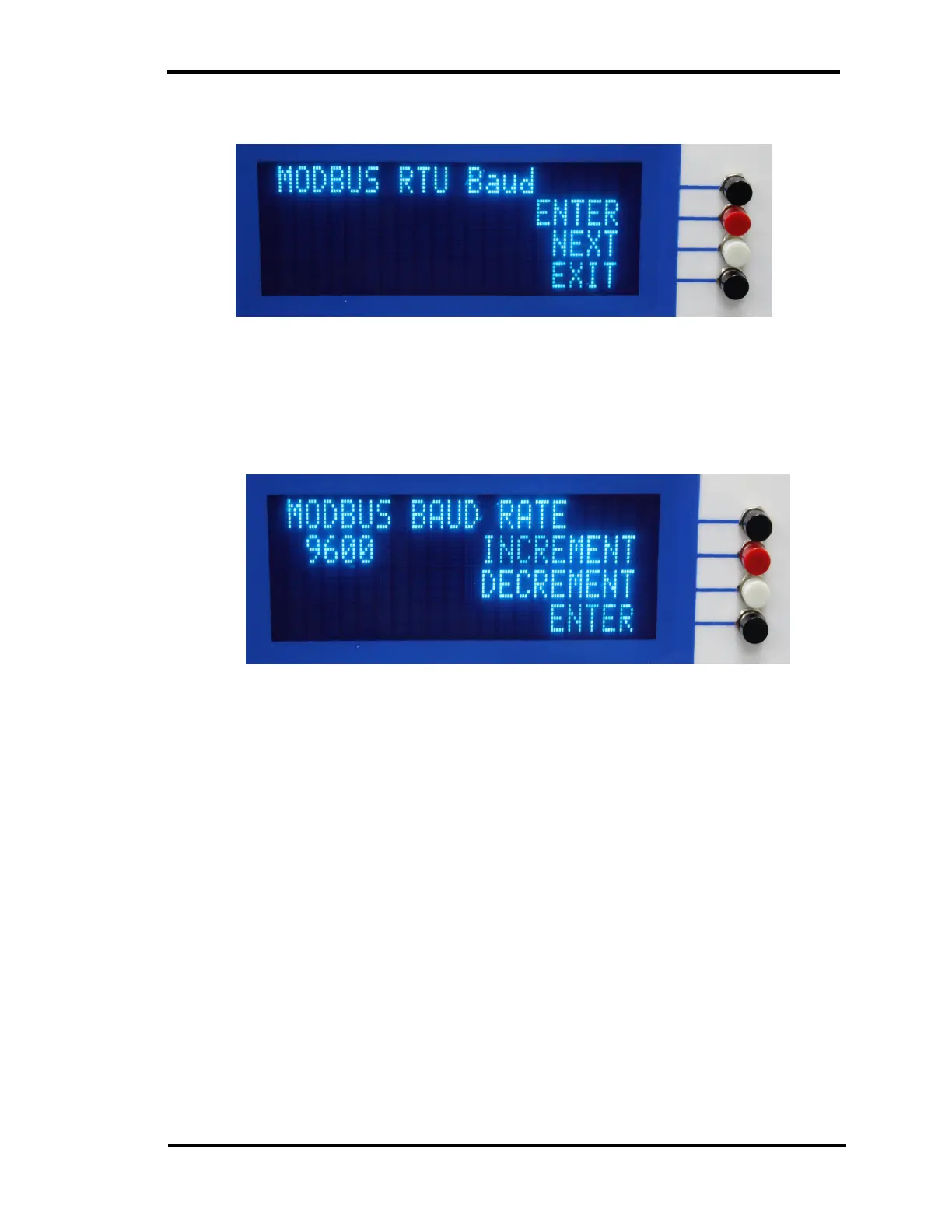

Figure 41 - MODBUS RTU Baud rate setup
This menu item is used to set the desired baud rate for MODBUS RTU
communications. Pressing ENTER will bring up the following display.
Figure 42 - MODBUS Baud rate select
Use the INCREMENT and DECREMENT buttons to select the desired baud rate
and press enter.
