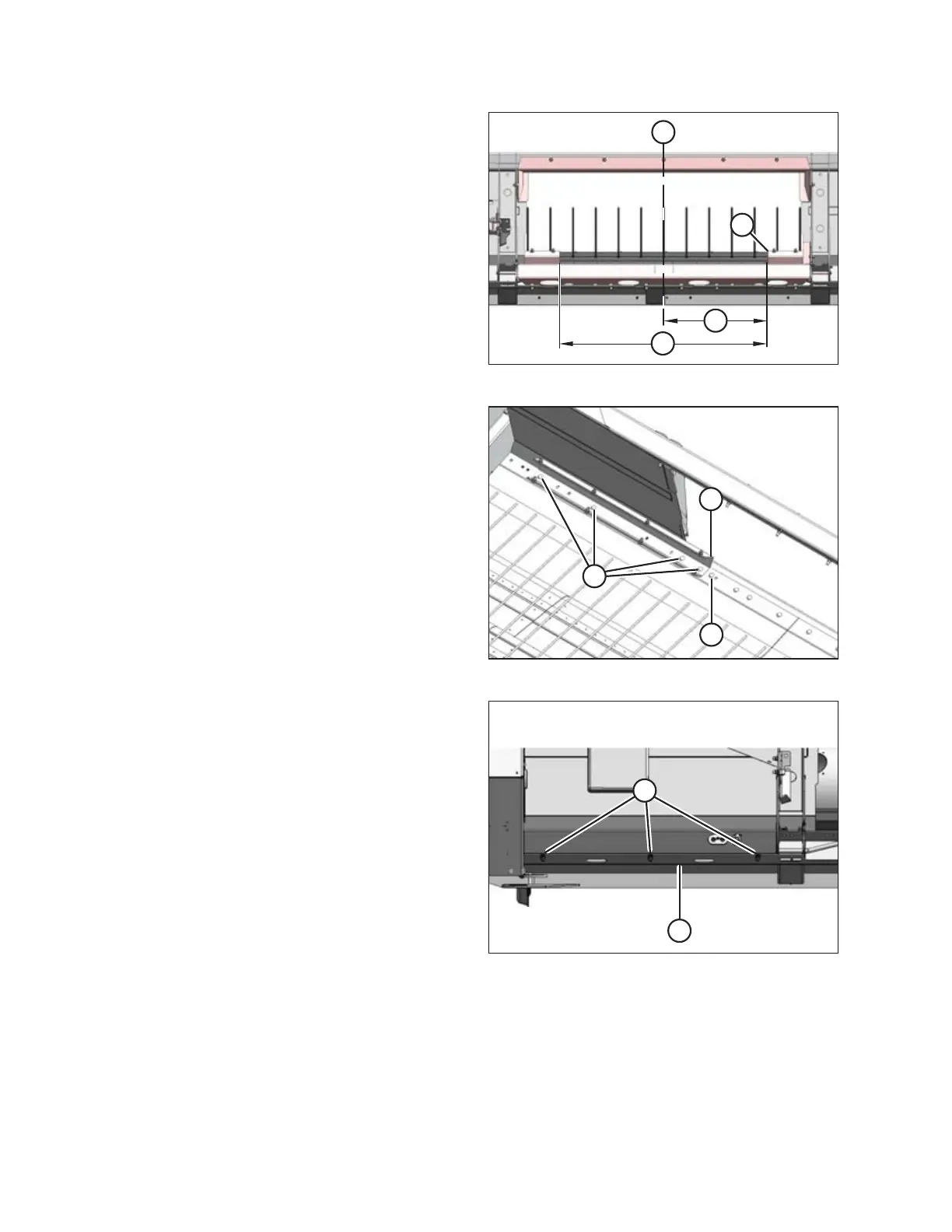

Figure 4.8: Right Stripper – Wide Opening
10. Move right stripper assembly (A) outboard so that
dimension (B) from header centerline (C) is 700 mm
(27-9/16 in.).
11. Make sure distance (D) between stripper assemblies is
1400 mm (55–1/8 in.).
1014254
B
C
A
Figure 4.9: Right Stripper – Wide Opening
12. Reinstall the four bolts (A) where stripper assembly (B)
mounting holes line up with the frame. Tighten bolts.
13. Install M12 x 30 carriage bolt (C) and nut (provided in
hardware bag) into the existing hole as shown.
14. Manually rotate the auger and check the clearances
between the auger flighting and stripper plates. The
clearance should be 3–11 mm (1/8–7/16 in.).
1007472
A
B
Figure 4.10: Left Cover – Right Side Opposite
15. Reinstall covers (B) and tighten bolts (A).
RECONFIGURING HEADERS
