214658 49 Revision A

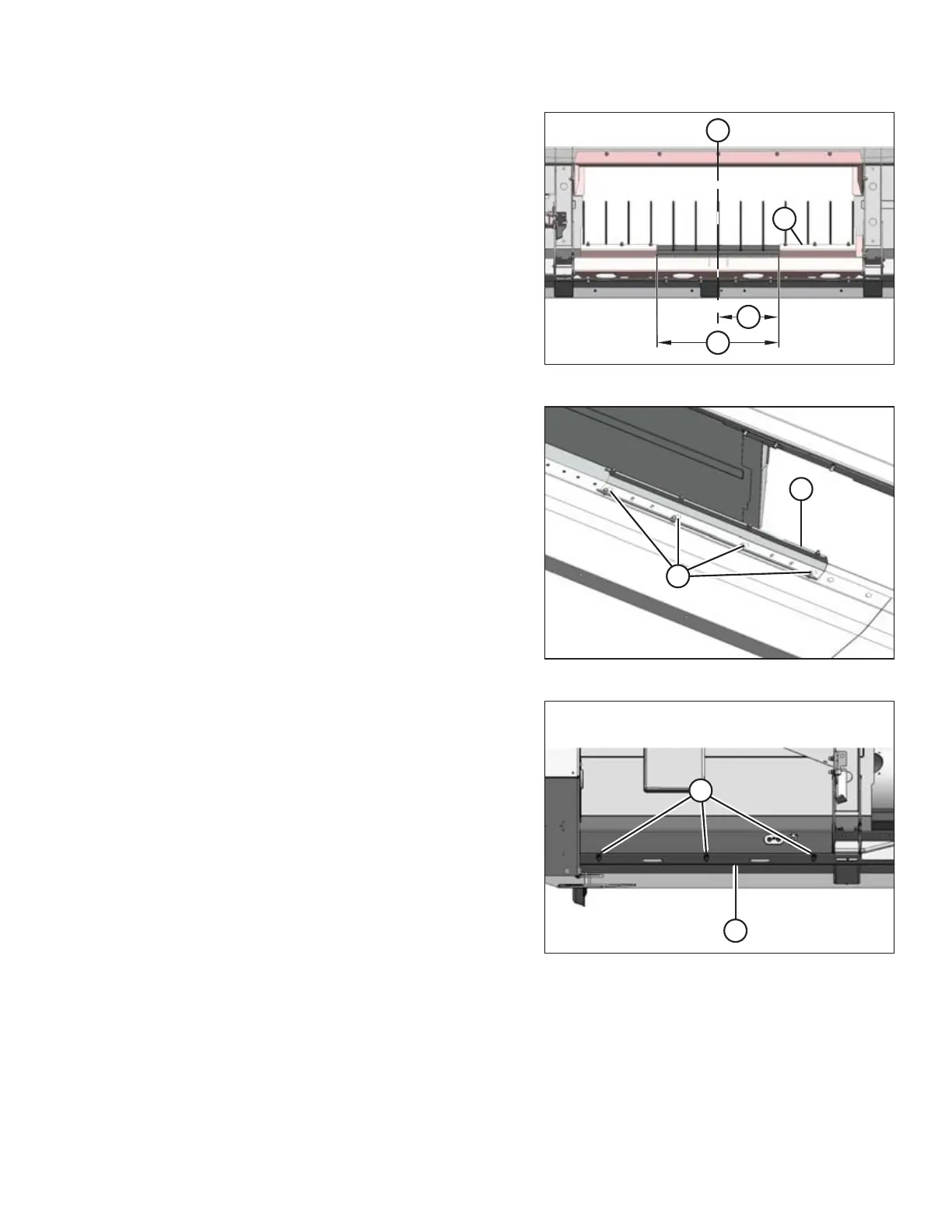

Figure 4.42: Narrow Opening
7. Move the right stripper assembly (A) inboard so that
dimension (B) from header centerline (C) is 417 mm
(16-7/16 in.).
8. Ensure distance (D) between stripper assemblies is
834 mm (32-13/16 in.).
Figure 4.43: Right Stripper – Narrow Opening
9. Reinstall the four bolts (A) where stripper assembly (B)
mounting holes line up with the frame. Tighten bolts.
10. Manually rotate the auger and check the clearances
between the auger flighting and stripper plates. The
clearance should be 3–11 mm (1/8–7/16 in.).
Figure 4.44: Left Cover – Right Side Opposite
11. Reinstall covers (B) and tighten bolts (A).
RECONFIGURING HEADERS
