214658 53 Revision A

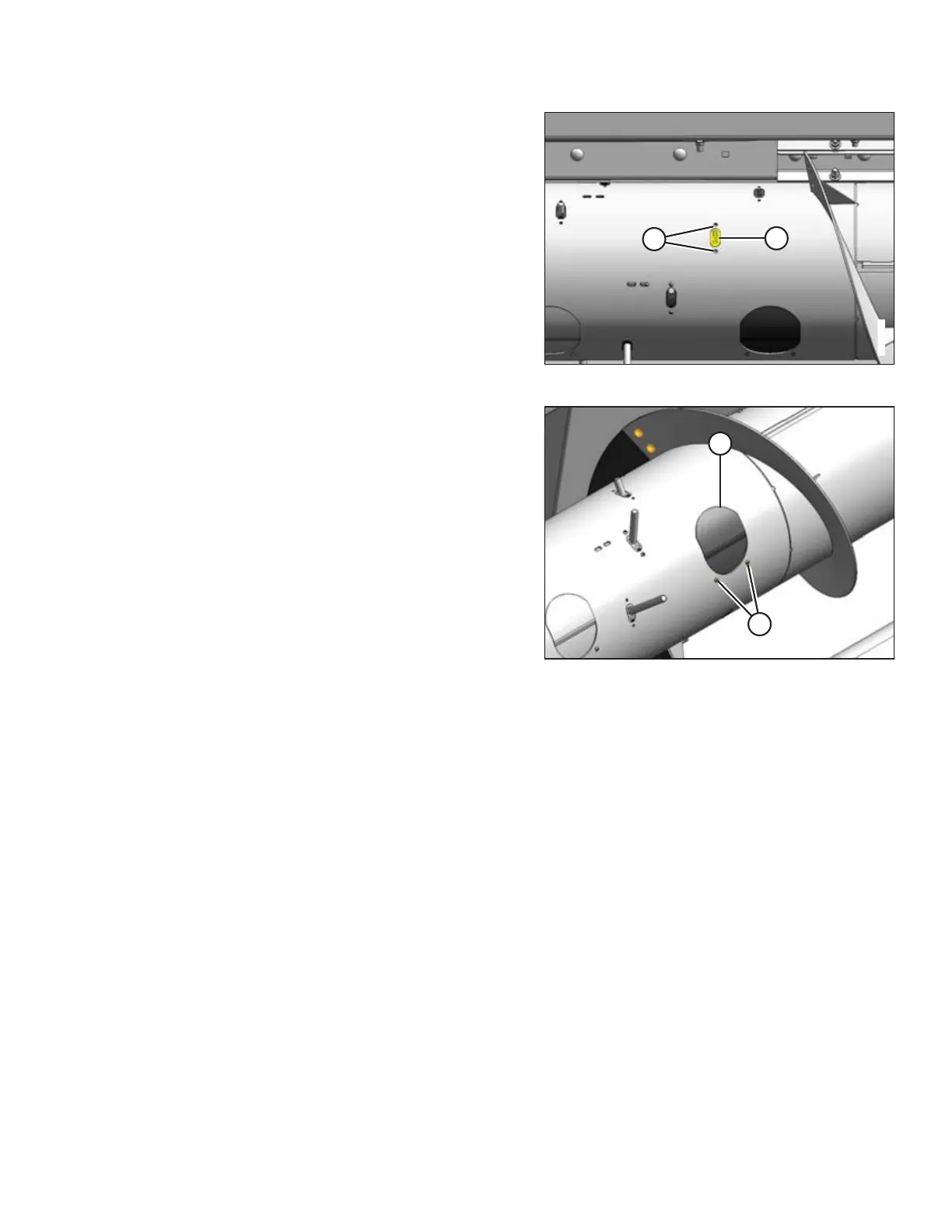

Figure 4.52: Finger Guide Plugs
9. Position plug (B) in hole from inside the auger and
secure with M6 x 20 long hex socket screws (A).
10. Torque screws to 8.5 Nm (75 lbf∙in).
11. Repeat Step 6, page 52 to Step 10, page 53 for the
other plastic guide.
IMPORTANT:
To avoid damage to auger, check that all loose
hardware and tools are removed from inside the auger.
Figure 4.53: Access Cover
12. Replace access covers (A) and secure with existing
screws (B). Torque to 11 Nm (95 lbf∙in).
RECONFIGURING HEADERS
