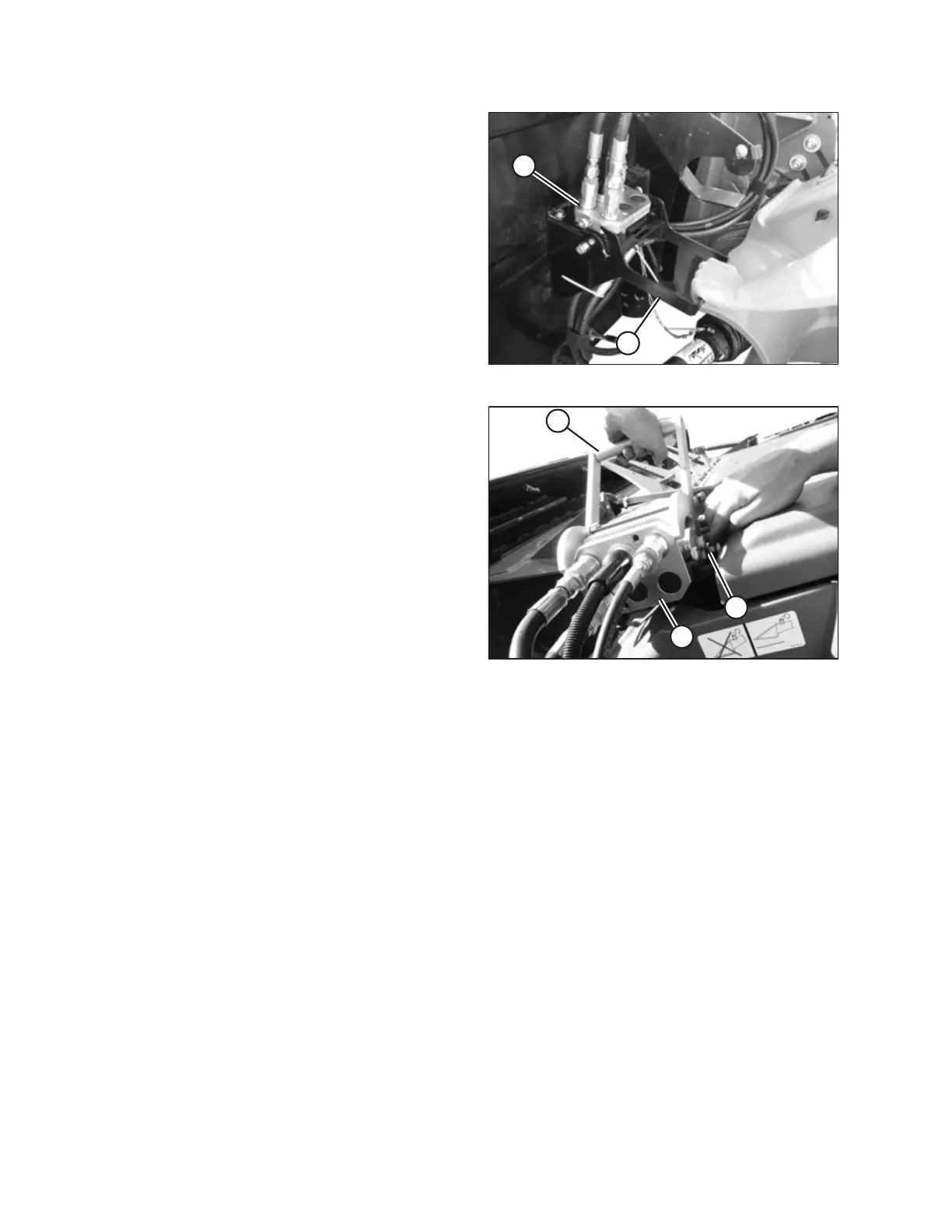

Figure 5.14: Releasing Coupler
10. Pull handle (A) on header to release multicoupler (B)
from storage position, remove coupler, and push handle
back into header to store.
Figure 5.15: Engaging Coupler
11. Place coupler (A) onto combine receptacle.
12. Pull out knob (B) to release handle, and pull handle (C)
to engage pins in coupler.
ATTACHING HEADER TO COMBINE
