36
The Swipe Zone — Swiping, dragging and icking are the keys to navigating the Master Fader app
and the swipe zone exists in nearly every single view. While in the mixer view, the swipe zone exists
anywhere on the black background of a channel. Swipe left or right to display any of the input
 channels,thetwoFXchannelsandiPadchannel.Amaximumofninechannels(includingthe 
master fader) may be displayed at a single time.
In a channel view, the swipe zone exists anywhere on the gray background. On input channels,
swipe up and down to switch between the EQ, gate and compressor and FX views and left and
right to stay on the same view, but switch between input channels. Swipe up and down on the
output channels to switch between graphic EQ and the output compressor / limiter.
There is no swipe zone in tools, presets and shows.

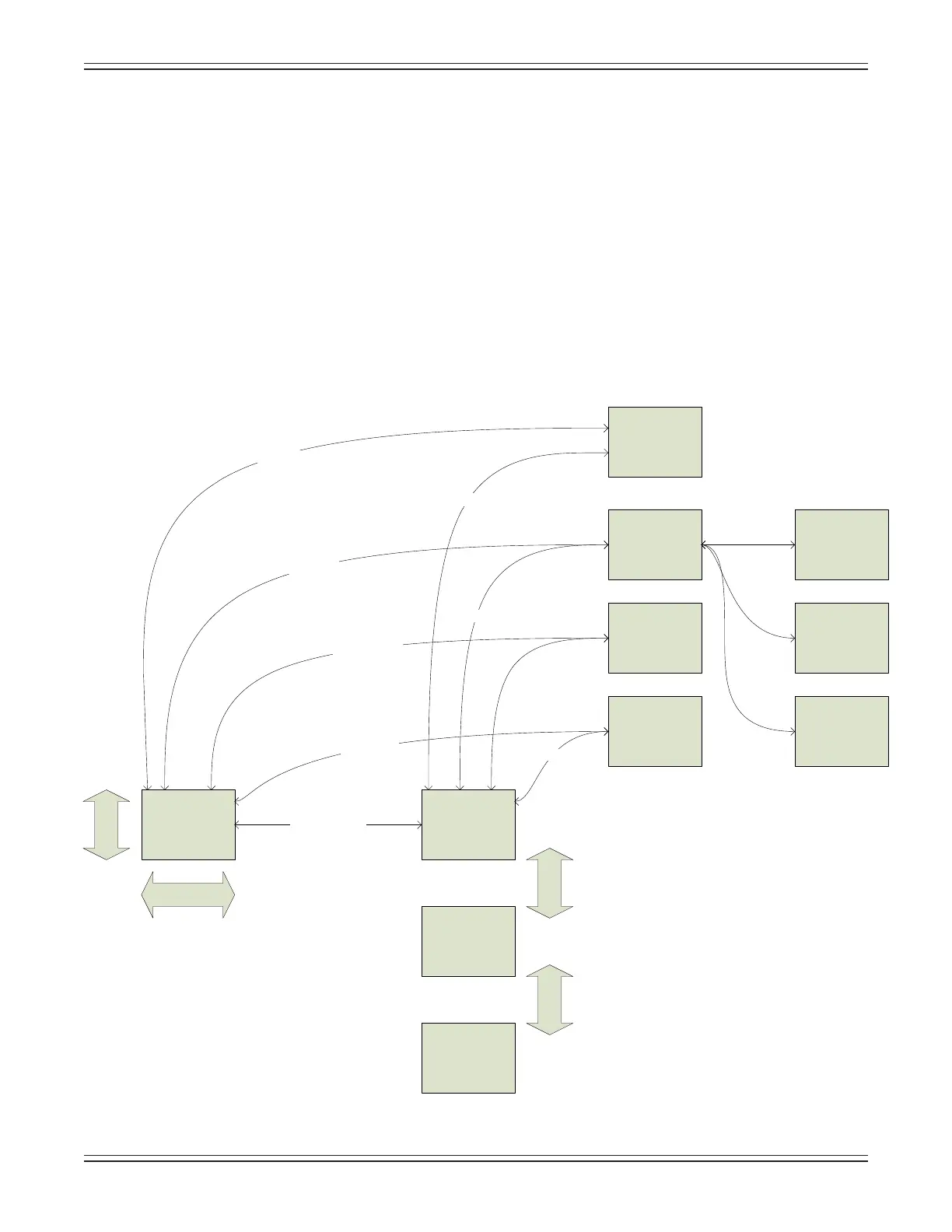

 Thescreenowshownbelow[saythattentimesfast!]displayswhatisdescribedaboveandprovides
 anoverviewofallthedierentviewsontheMasterFaderapp.We’llcovertheswipezoneforeach
view in detail, but wanted you to have an overview of what you can expect from the coming pages.
Master Fader app Screen Flow
Mixer View
Drag / Flick
Scroll Mixer
Channels
Output Selector
EQ (Inputs)
GEQ (Outputs)
Channel View
Channel View
FX (Inputs Only)
Swipe
Scroll DSP View
Swipe
Scroll DSP View
EQ / Mixer Button
Devices
Preset View
Preset Button
Tools View
Tools Button
Tools Button
Settings
Help
Preset Button
Touch and
Release
Shows View
Shows Button
Shows Button
QAP Button
QAP Button
Shows Button
Gate/Comp (Inputs)
Comp/Lim (Outputs)
Channel View
Quick
Access
Panel
