FX View

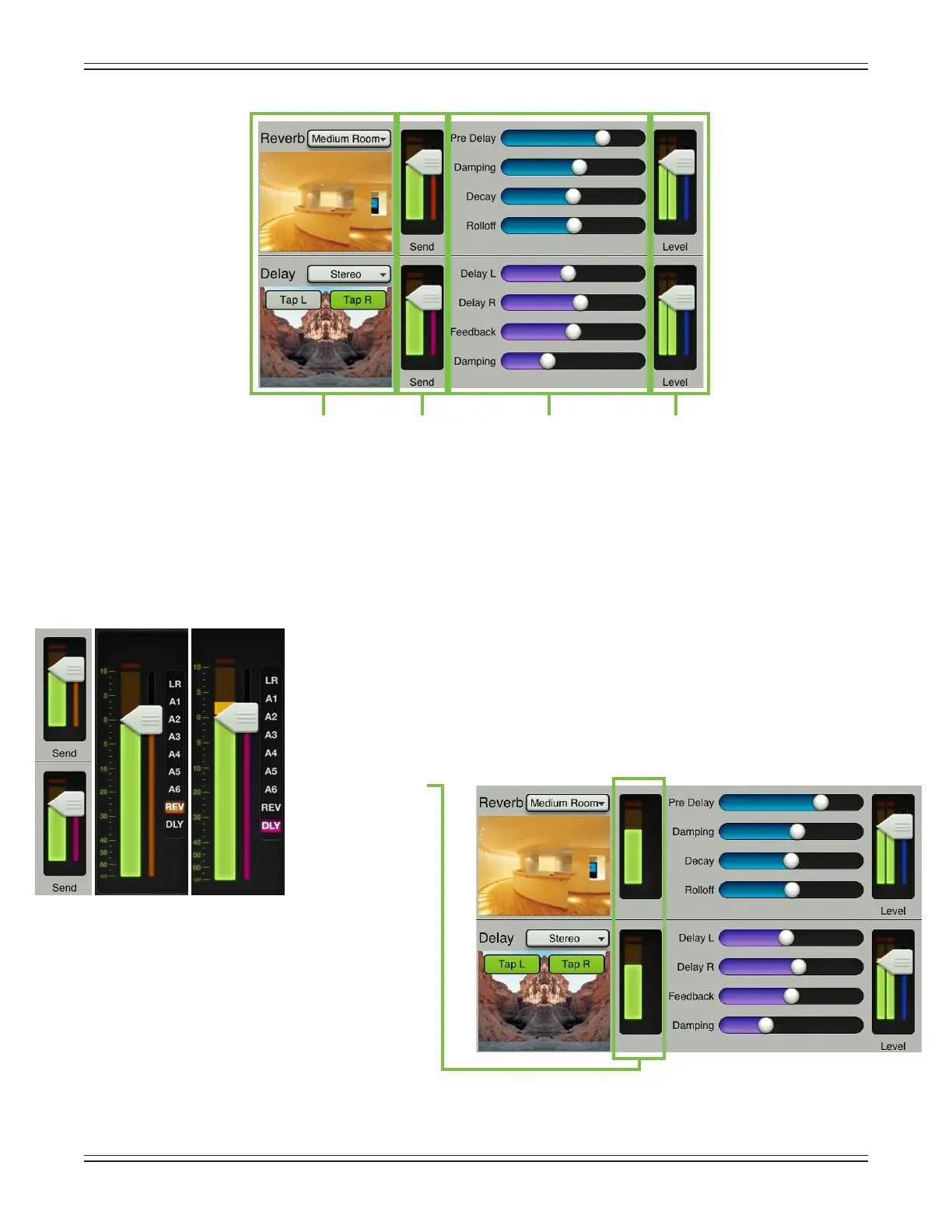

From left to right, each eect displays the following:
Eect Type — The reverb and delay each display the currently selected eect type (as a button
which reveals a popover when tapped) and an accompanying image. These selections are global
and aect all channels sent to the eects as there is only one reverb and one delay on the mixer.
Eect types are described in more detail in a few pages.
FX Sends — There are two vertical send channel faders and meters, one for each eect.
These control the level being sent to the eect from the current channel.
Noticeintheimagetotheleftthatthecolorofeachsendfadermatches 
the color of the reverb and delay output selector.
The reverb and delay send meters display the summed signals from all channel
sendspost-sendmaster.Putanotherway,thisshowsthetotalsignalgoinginto
the FX processor regardless of the current channel being adjusted.
There are no reverb or delay sends from the reverb and delay returns, so when either
the reverb or delay is the current channel, there are no send faders shown as seen in the
image to the right.
FX Settings — The reverb and delay have multiple sliders which are used to alter the selected eect.
These sliders change dependent on which eect type is chosen for each channel. These sliders are global
and aect all channels sent to the eects as there is only one reverb and one delay on the mixer.
The various FX controls for each FX type are described in more detail in a few pages.
EFFECT TYPE FX SENDS FX SETTINGS FX RETURNS
SENDS REV DLY
