Mackie DL Series Reference Guide

Mackie DL806 and DL1608 Reference Guide
83

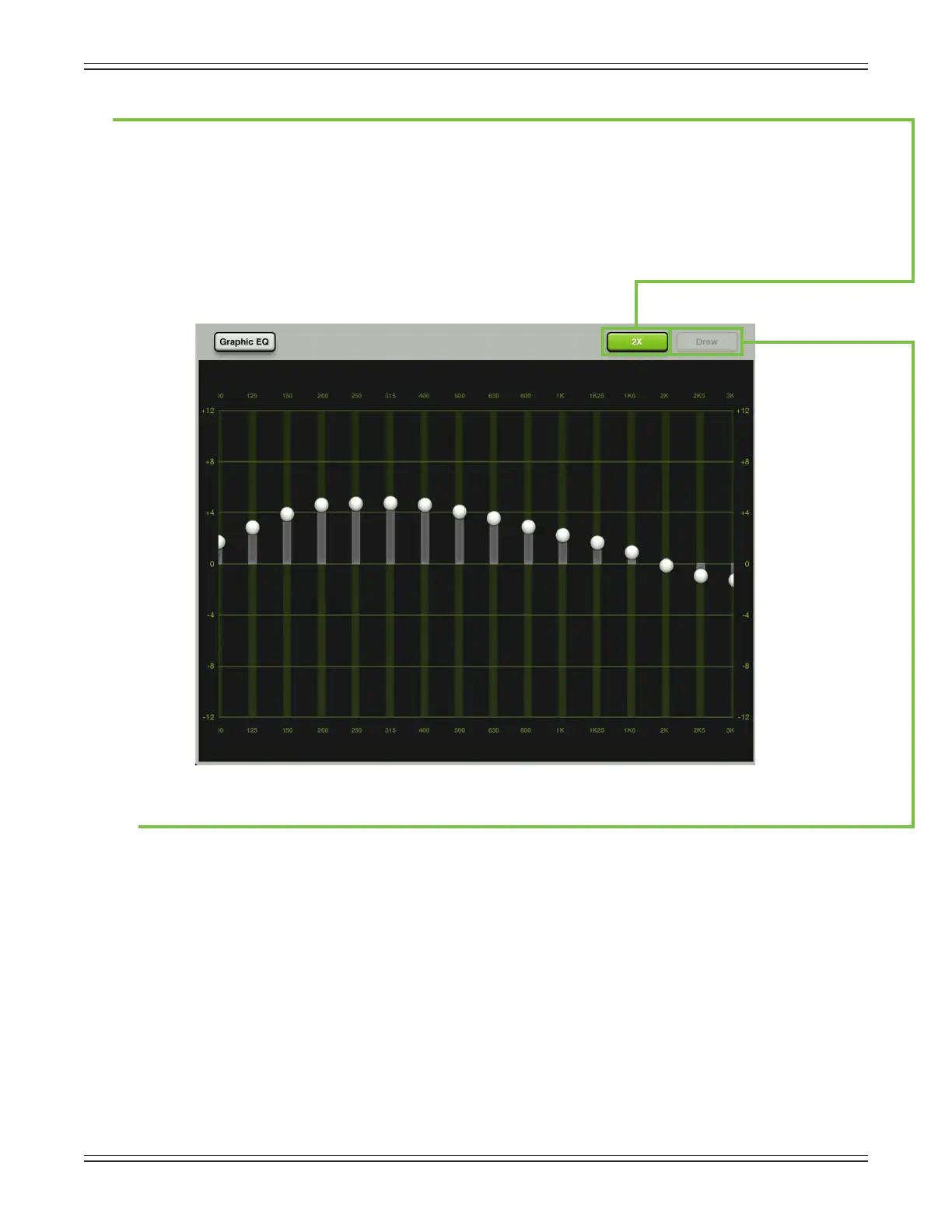

2X
The 2X button is located near the upper-right corner of the screen, just left of the draw button.
This allows you to zoom in on the graphic EQ, perfect for our friends with sausage ngers and/or
mixingwiththeiPadmini.Swipeleftandrighttoviewandadjusttheremainingbands.
Pressthe2Xbuttontoturnthe2Xzoomfunctiononoro.Itwillilluminategreenwhenengaged 
(asseenbelow)andisgraywhendisengaged(asseenonthepreviouspage).Notethatdraw
(detailed below) is unavailable when in 2X mode (as seen below).
Draw
The draw button is located near the upper-right corner of the screen. This allows you to draw an
EQ curve over the display (regardless of where the slider balls currently reside) and the sliders will
snap to the corresponding position.
Engage draw to quickly create a basic GEQ outline, then disengage draw to ne-tune any of the
31 bands one-by-one, as needed.
Pressthedrawbuttontoturnthedrawfunctiononoro.Itwillilluminategreenwhenengaged 
(asseenonthepreviouspage)andisgraywhendisengaged.Notethatdrawisunavailablewhen
in 2X mode (as seen above).
