[1] BOOM LENGTH

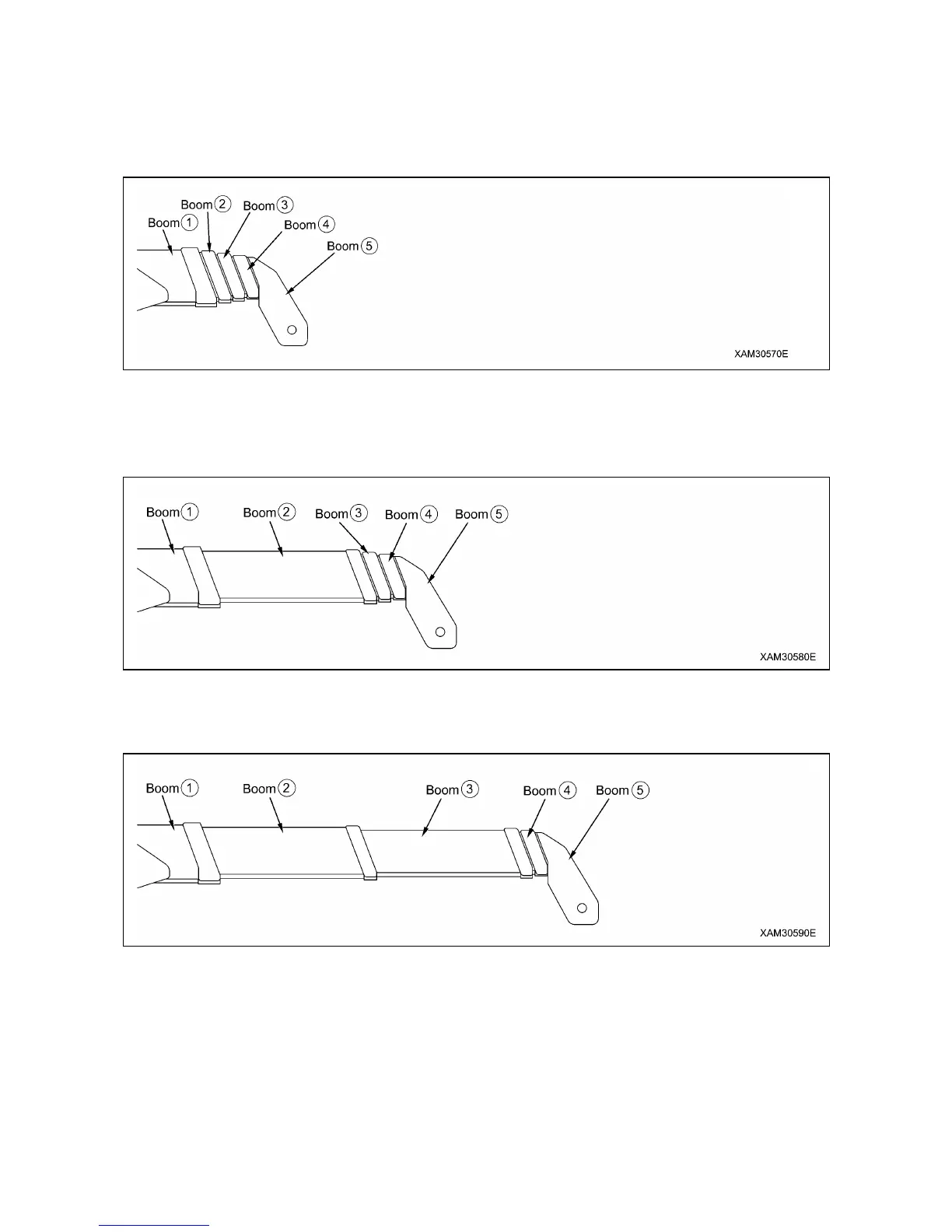

In the Rated Total Load Chart, the "4.745 m boom (1)", "7.625 m boom (2)", "10.505 m boom
(3)", "13.385 m boom (4)" and "16.265 m boom (5)" given in columns on the top denote the
respective states of the following figures:
1. "4.745m boom (1)"
: All the booms are retracted.
2. "7.625 m boom (2)": Booms (3), (4) and (5) are retracted, while boom (2) alone is fully
extended.
If boom (2) is extended even to a small extent, perform the work in the capacity indicated in
this column.
3. "10.505 m boom (3)": (4) and (5) are retracted, while booms (2) and (3) are fully extended.
If boom (3) is extended even to a small extent, perform the work in the capacity indicated in
this column.
