IMPULSE•G+ Mini Advanced Instruction Manual – March 2014
5-81
Table 5-17: OLV Stabilization Table
NOTE: If the motor is hunting, increase the value of N02.05 per the table to stabilize the load.
.
Control Method
(A01.02) Setting
OLV Stabilization Level
(N02.05) Setting (Hex)
Torq. Comp Time
(D03.02) Set Value
AFR Time (N02.02)
Set Value
Independent setting
of D03.02 & N02.02
2 (OLV) 00 (default) 20 50 No
01 25 63 No
02 30 75 No
03 35 88 No
04 40 100 No
05 45 113 No
06 50 125 No
07 55 138 No
08 60 150 No
09 65 163 No
0A 70 175 No
0B 75 188 No
0C 80 200 No
0D 85 213 No
0E 90 225 No
0F 95 238 No
10 100 250 No
11 105 263 No
FF Note 1Note 1Yes
NOTE 1: If N02.05 is changed to an FF(hex) using the digital operator, the values that were in D03.02 & N02.02
will be retained. Example: N02.05 = 08(hex), which sets D03.02 = 60 and N02.02 = 150. When N02.05 is then
changed to FF(hex) the values remain unchanged, D03.02 = 60 & N02.02 = 150.

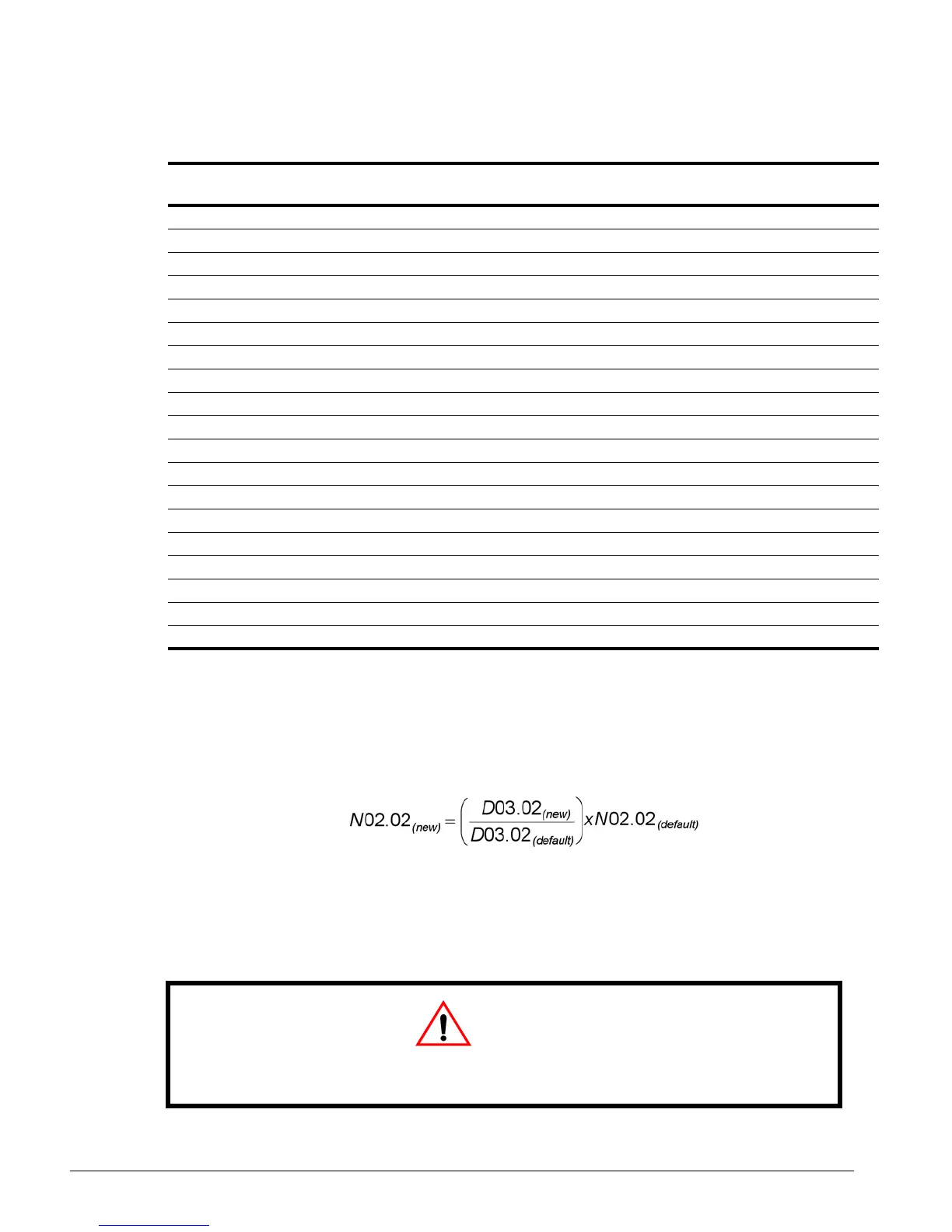

When N02.05 = FF, use the following equation to determine the new N02.02 value:
CAUTION
Increasing the value of N02.05 too high may result in the motor not developing enough torque
to lift the load.
