IMPULSE•G+ Mini Advanced Instruction Manual – March 2014
5-30
Brake Delay Timers
This function is used in trolley or bridge applications. It can reduce the mechanical brake wear when the
operator tries to position a load. This function is available only in traverse mode and the constant B03.03 must
be set to 04 (Decel With Timer).

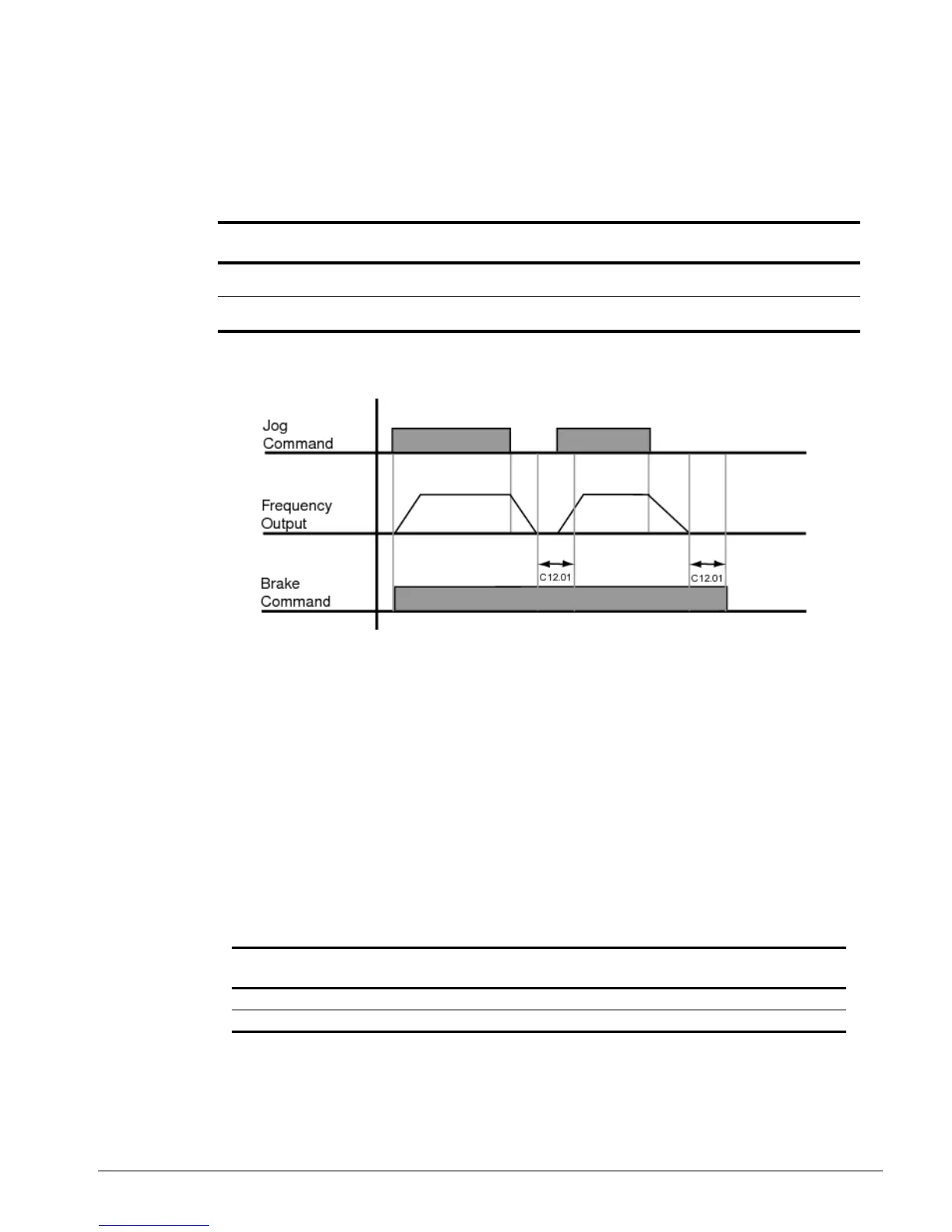

Figure 5-18: Brake Delay Timers
NOTE: The Jog control input is a multi-function input. It is enabled by programming data 15 or 16 in
H01.01 ~ H01.07.
ON/OFF Delay Timer Function
• The timer function is enabled when the timer function input (H01.01~H1.07 = 043) and the timer function
output (H02.01~H02.03 = 012) are set for the multi-function input and multi-function output respectively.
• These inputs and output serve as general purpose I/O. Chattering of sensors, switches, contactors, etc., can
be prevented by setting a delay time.
• When the timer function input ON time is longer than the value set for C12.03 (Timer function ON-Delay
Time), the timer function output turns ON.
• When the timer function input OFF time is longer than the value set for C12.04 (Timer function OFF-
Delay Time), the timer function output turns OFF.
Parameter
Code Name Function Range Initial Value
Access
Level
C12.01
Brake Jog Delay Brake set delay time at Jog
Control input.
0.0–100.0 sec 0.0 sec Adv
C12.02
Brake Run Delay Brake set delay time at RUN
input.
0.0–100.0 sec 0.0 sec Adv
Parameter
Code Name Setting Range
Factory Default
Setting Access Level
C12.03
Delay-on timer
0.0
–3000.0
0.0 Adv.
C12.04
Delay-off timer
0.0
–3000.0
0.0 Adv.
