Dwell Function
The Dwell Function is used to temporarily hold the output frequency at a set reference for a set time.
This function can be used when driving a motor with a heavy starting load. This pause in
acceleration reduces traditionally high starting current. Enable by setting H01.01–H01.07 = 65.
NOTE: This function is only available when using Braketronic (A01.03 = 06).

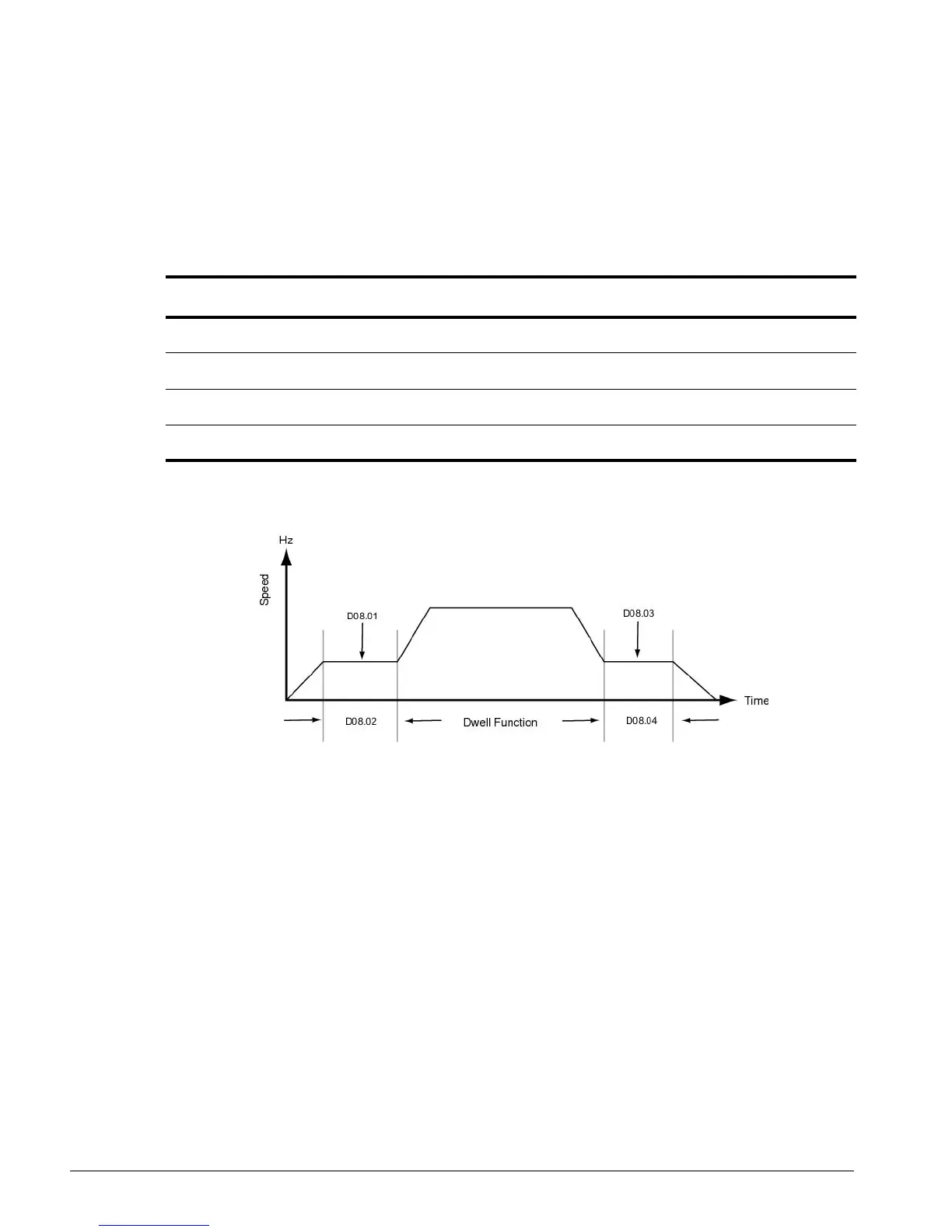

Figure 5-22: Dwell Function
Parameter
Code Name Function Range Initial Value
Access
Level
D08.01 Dwell Reference @ Start Sets Dwell frequency
reference at start.
0.0–150.0 Hz 0.0 Adv
D08.02 Dwell Time @ Start Sets the time duration for the
Dwell function at start.
0.0–10.0 sec 0.0 Adv
D08.03 Dwell Reference @ Stop Sets Dwell frequency
reference at stop.
0.0–150.0 Hz 0.0 Adv
D08.04 Dwell Time @ Stop Sets the time duration for the
Dwell function at stop.
0.0–10.0 sec 0.0 Adv
