IMPULSE•G+ Mini Advanced Instruction Manual – March 2014
5-39

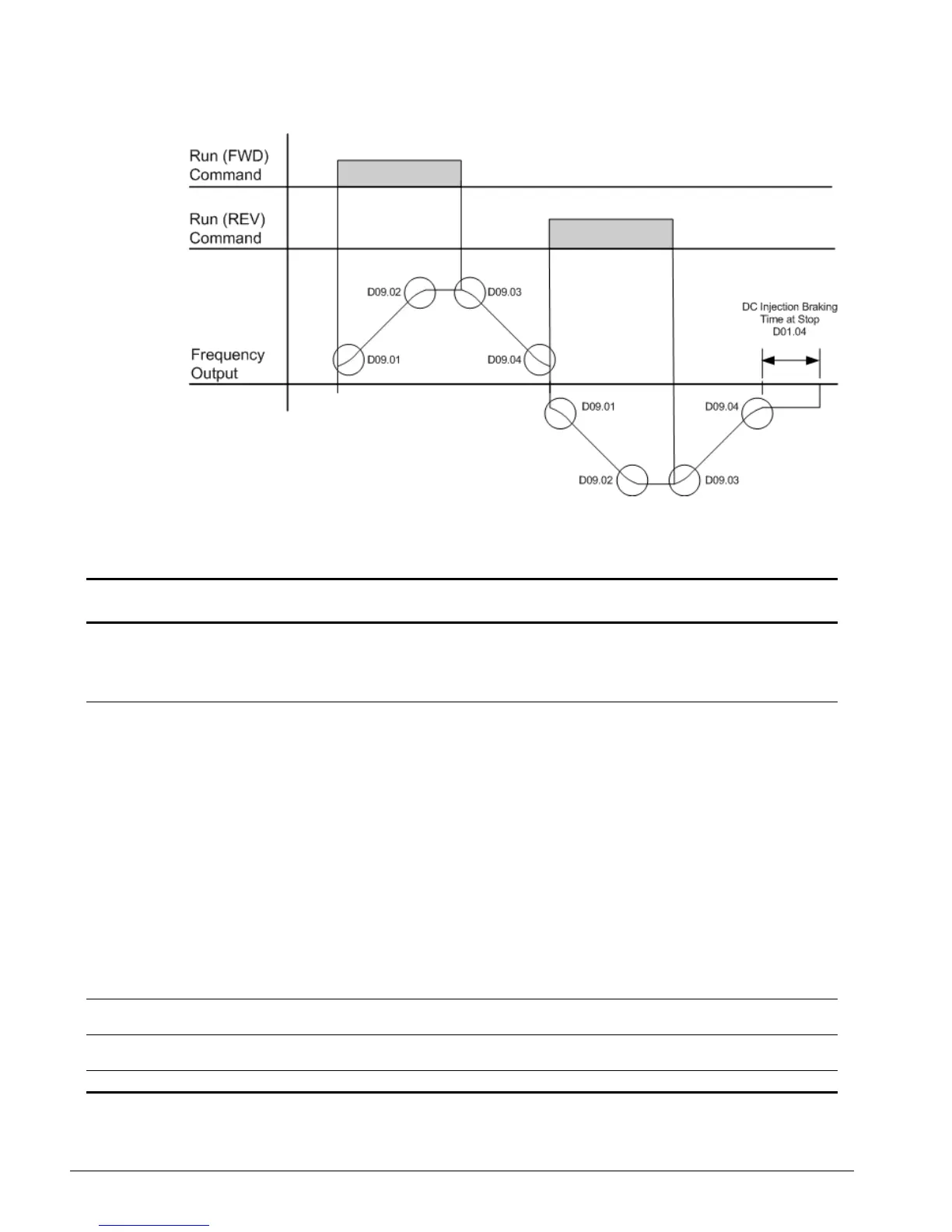

Figure 5-23: S-Curve Characteristics–FWD/REV Operation
Carrier Frequency
Parameter
Code Name Function Range Initial Value
Access
Level
D10.01 CT/VT Selection Constant Torque/Variable Torque
Selection
00, 01 00 Adv
00 Heavy Duty
01 Normal Duty
D10.02 Carrier Frequency Selection Carrier Frequency Selection 00–0F 01 Adv
00 2 kHz (low noise)
01 2 kHz
02 5.0 kHz
03 8.0 kHz
04 10.0 kHz
05 12.5 kHz
06 15.0 kHz
07 Swing PWM1
08 Swing PWM2
09 Swing PWM3
0A Swing PWM4
0F Custom (determined by the settings of
D10.03~D10.06)
D10.03 Carrier Frequency Upper
Limit
Carrier Frequency Upper Limit 1.0–15.0 kHz 2.0 Adv
D10.04 Carrier Frequency Lower
Limit
Carrier Frequency Lower Limit 1.0–15.0 kHz 2.0 Adv
D10.05 Carrier Frequency Gain Carrier Frequency Gain 00–99 00 Adv
