IMPULSE•G+ Mini Advanced Instruction Manual – March 2014
5-32
Inching Control
Inching Control Function can be enabled by programming data 17, 18, and 19 respectively to the
multi-function input terminals (H01.01–H01.07). The frequency reference used during inching is
determined by B01.17 (Jog Reference).

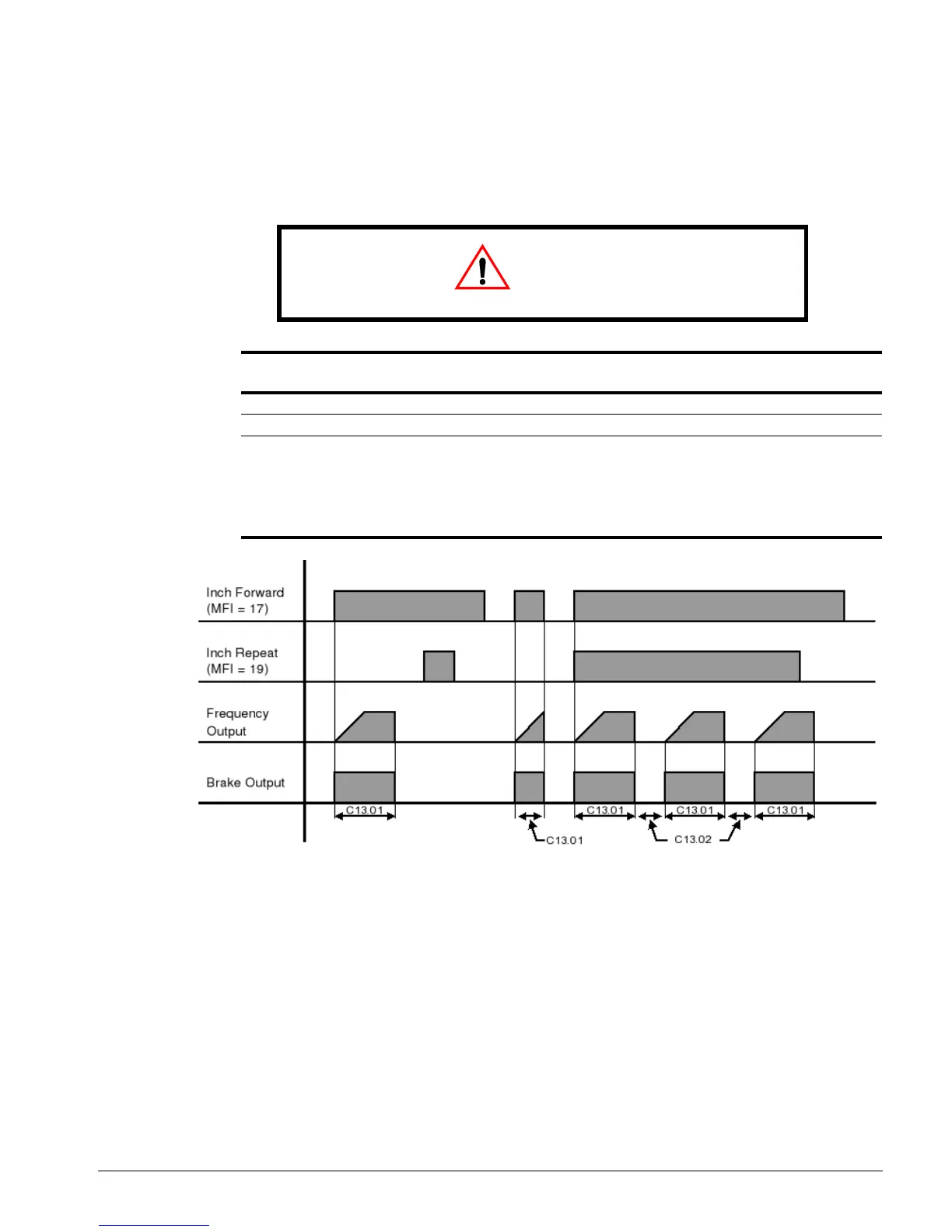

Figure 5-19: Inching Function and Inching Repeat
NOTE: C13.01 did not expire during the second inch forward command.
Parameter
Code Name Function Range Initial Value
Access
Level
C13.01 Inch Run Time Inching Control run time. 0.00–2.55 sec 1.00 Adv
C13.02 Repeat Delay Time Inching Control repeat delay time. 0.00–2.55 sec 1.00 Adv
H01.01 ~
H01.07
Terminal Selection Multi-Function Input Terminals 00–81 -- Adv
17 Forward Inch
18 Reverse Inch
19 Inch Repeat
CAUTION
A directional input is not needed on terminals S1 or S2.
