Monitor Parameters
Monitor
Parameter
Code Name Function Units
Access
Level
U01.01 Frequency Reference Frequency Reference Hz Basic/Adv
U01.02 Output Frequency Inverter Output Frequency Hz Basic/Adv
U01.03 Output Current Inverter Output Current A Basic/Adv
U01.04 Control Method Displays the value of A01.02 -- Basic/Adv
U01.05 Motor Speed Motor Speed (OLV only) Hz Adv
U01.06 Output Voltage Inverter Output Voltage (Reference) V Basic/Adv
U01.07 DC Bus Voltage DC Bus Voltage (Measured) V Basic/Adv
U01.08 Output Power Inverter Output Power (Calculated) HP Basic/Adv
U01.09 Motor Torque Motor Torque (OLV only) % Adv

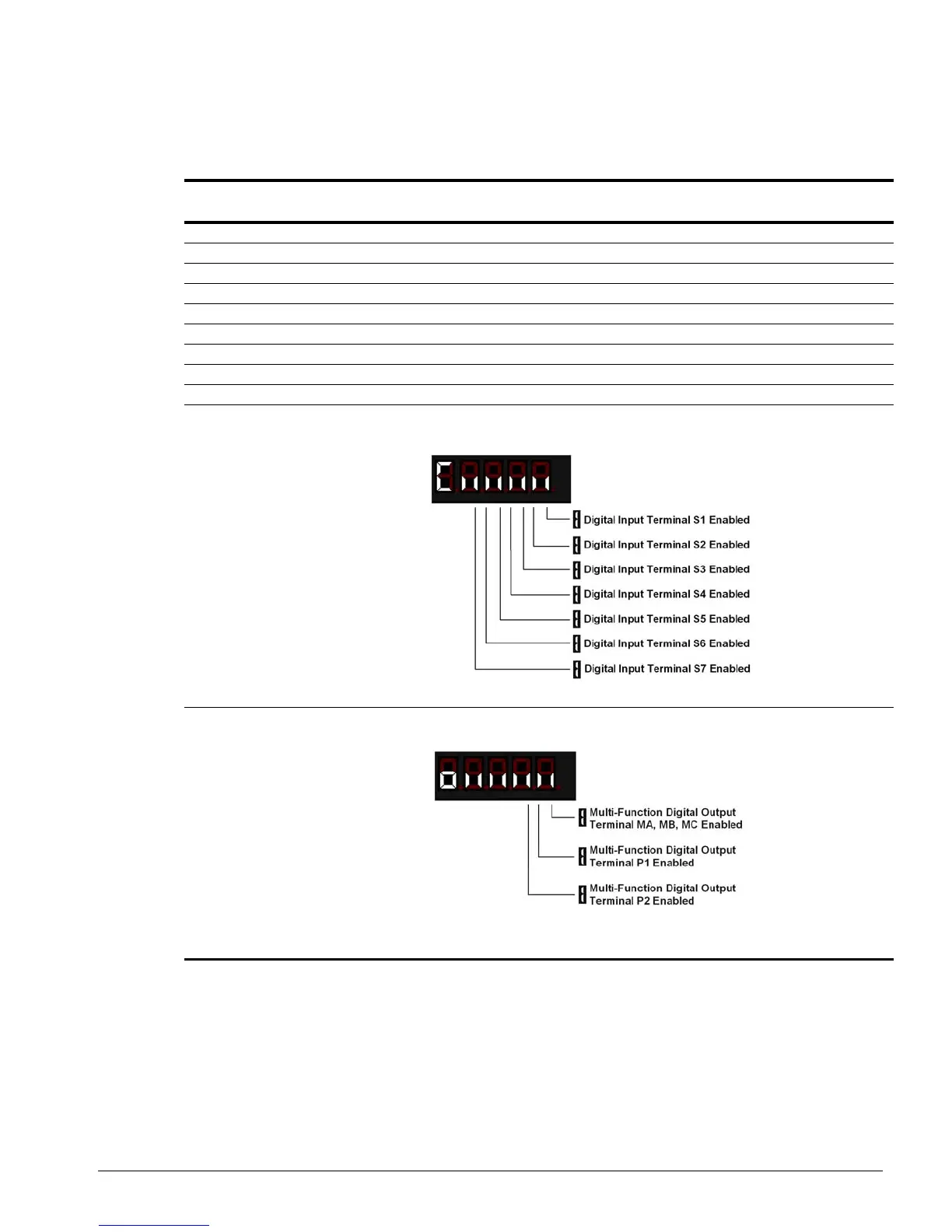

U01.10 Input Terminal Status Input Terminal Status -- Basic/Adv
U01.11 Output Terminal Status Output Terminal Status -- Basic/Adv
