IMPULSE•G+ Mini Advanced Instruction Manual – March 2014
5-5
Reference Limits
These parameters will limit the frequency range as a percentage of maximum output frequency
(E01.04).
An alternate upper limit frequency can be used during operation when a Multi-Function Input (MFI)
is set to 59 (Alt F-Ref UpLimit) and the MFI is on. Alternate Upper Limit Frequency = (B02.04)% x
(E01.04).

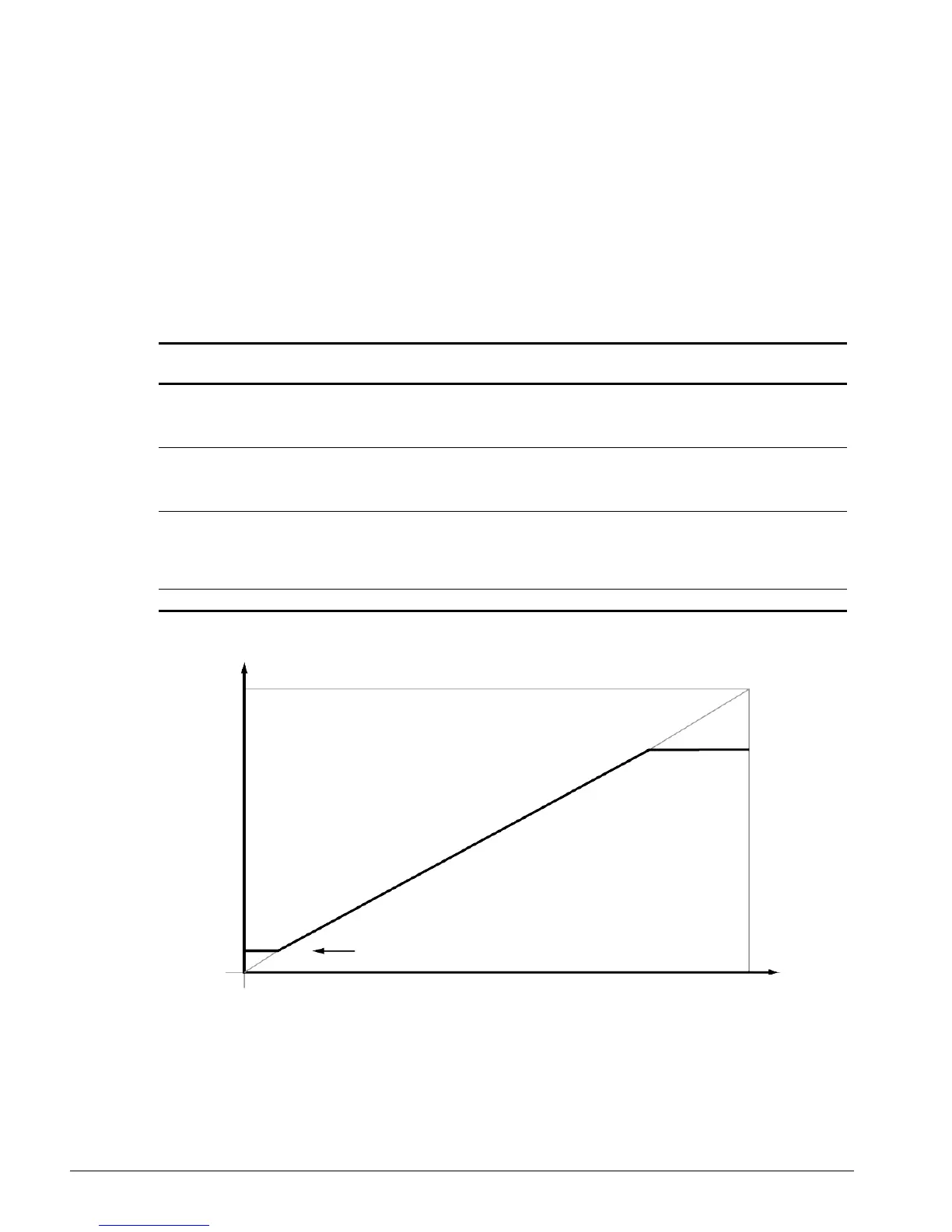

Figure 5-1: Setting Frequency Upper and Lower Limits
Parameter
Code Name Function Range
Initial
Value
Access
Level
B02.01 Frequency Reference
Upper Limit
Sets as a percentage of the maximum
output frequency (E01.04), the
maximum frequency at which the
drive is able to run.
0.0–110% 100.0 Basic/Adv
B02.02 Frequency Reference
Lower Limit
Sets as a percentage of the maximum
output frequency (E01.04), the
minimum master frequency reference
only.
0.0–110% 0.0 Basic/Adv
B02.03 Reference 1
Lower limit
Sets as a percentage of the maximum
output frequency (E01.04), and
determines the minimum frequency
the drive is able to run when an analog
signal is below this level.
0.0–110% 2.0* Basic/Adv
B02.04 Alt Upper Limit Alternate of B02.01 set by MFI=59. 0-110% 100.0 Basic/Adv
Internal
Frequency
Reference
B02.02 x (E01.04)
B02.01 x (E01.04)
E01.04
100% (E01.04)
HZ
0
Set Frequency Reference
*Initial value set by X-Press programming.
or B02.04 x (E01.04)
