IMPULSE•G+ Mini Advanced Instruction Manual – March 2014
4-4
Using the Keypad
All functions of the drive are accessed using the keypad. The operator can enter information using
the keypad to configure the drive for their application. This information will be stored in the drive’s
memory.
Keypad Functions
The keypad has a 5-digit LED alpha-numeric display.
Indicators and keys on the keypad are described in Figure 4-1 and the following tables.
NOTE: The STOP key is always active and will immediately cause the motor to stop, following the
B03.03 stopping method.

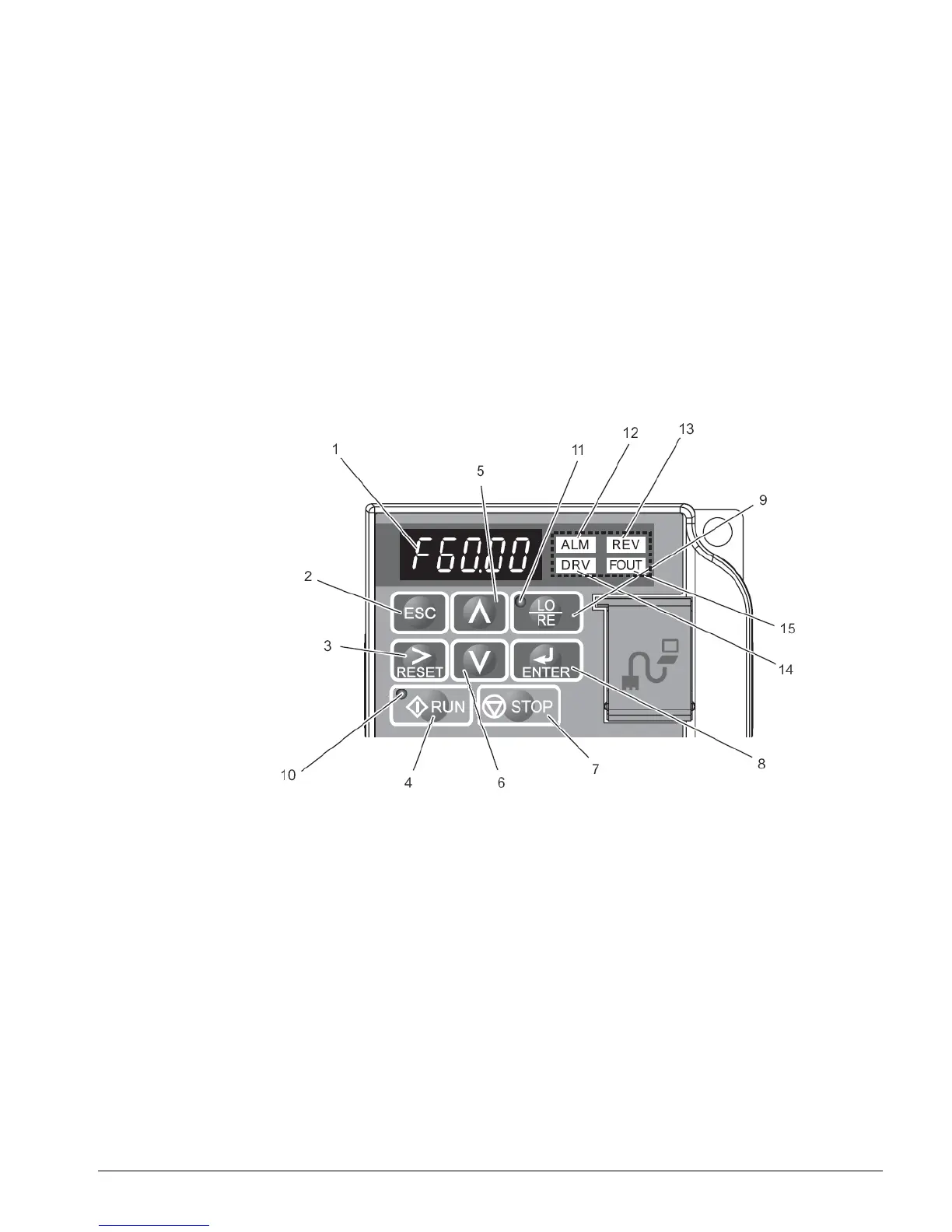

Figure 4.1: Keypad Display
