Installing the Drive

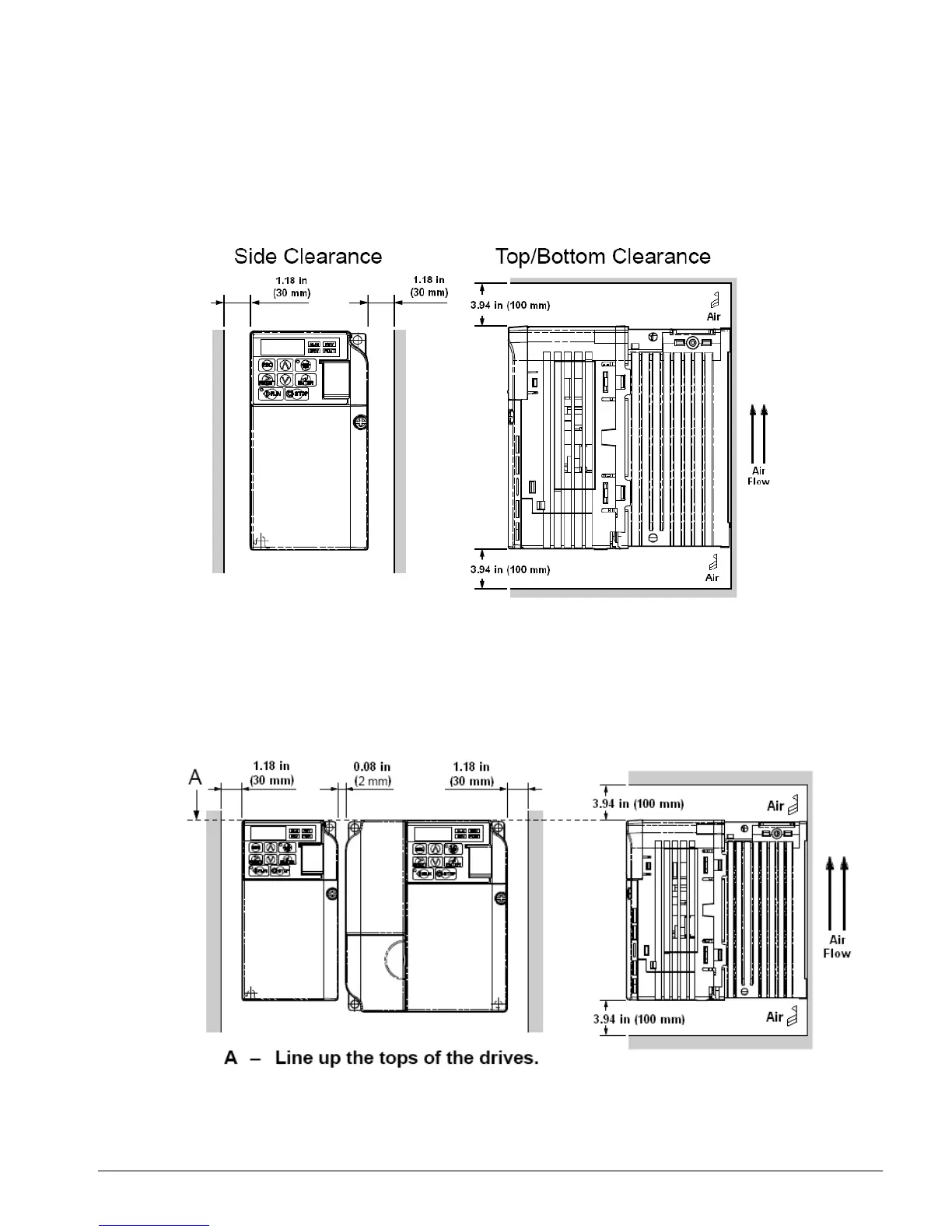

The following two figures show the minimum clearances when mounting the drive in standard or
side-by-side installations.
Figure 2-2: Standard Installation
Installing the Drive (Side-by-Side)
Figure 2-3: Side-by-Side Installation
