Motor Parameters
Motor data such as full load amps and V/f patterns are selected with the following parameters. These
parameters include the ability to select and set up custom V/f patterns for the type of motor used.
• E1 V/f Pattern
• E2 Motor Set-up
Voltage/Frequency Pattern

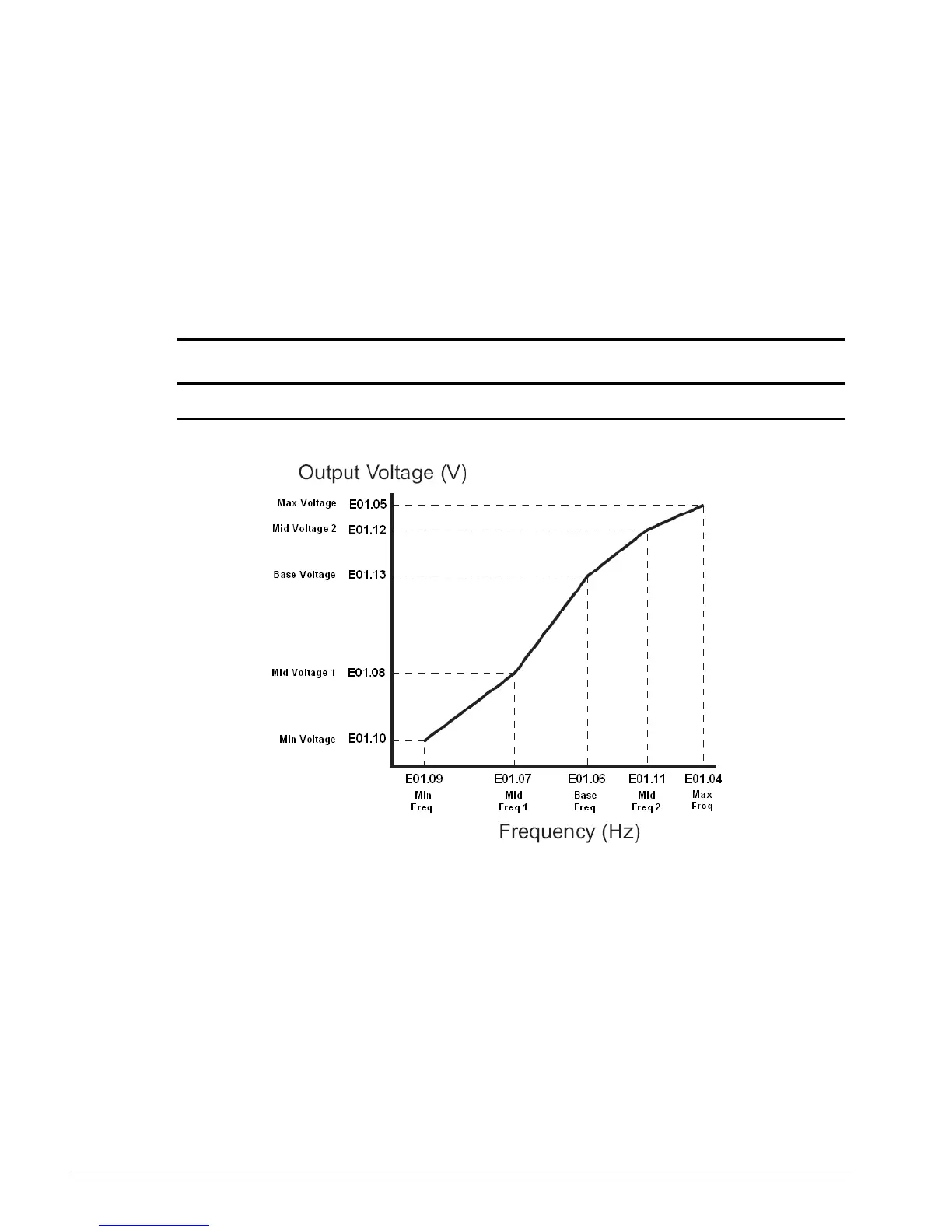

Figure 5-24: E01.01 Input Voltage
• Factory setting is 230 (230V units) or 460 (460V units).
• When E01.11 = 0, then the value of E01.11 is not used.
• When E01.12 = 0, then the value of E01.12 is not used.
• When E01.13 = 0, then the value of E01.13 is not used.
An OPE10 error will occur if the following conditions are not met:
E01.05 E01.12 E01.13 E01.08 E01.10
E01.04 E01.11 E01.06 E01.07 E01.09
The setting E01.01 adjusts the overvoltage level, braking transistor turn on level, and the stall
prevention level during deceleration.
Parameter
Code Name Function Range
Initial
(1)
Value
Access
Level
E01.01 Input Voltage Sets input voltage 155–255/
310–510
230
460
Basic/Adv
